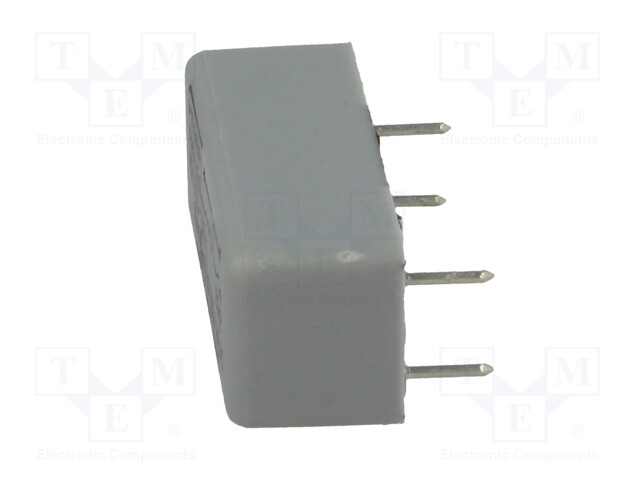

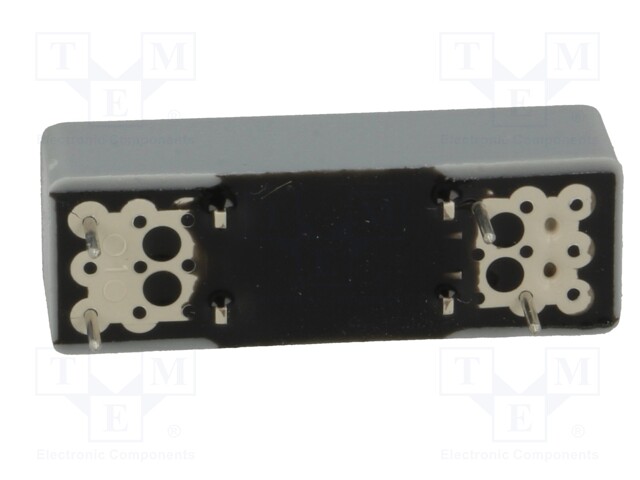

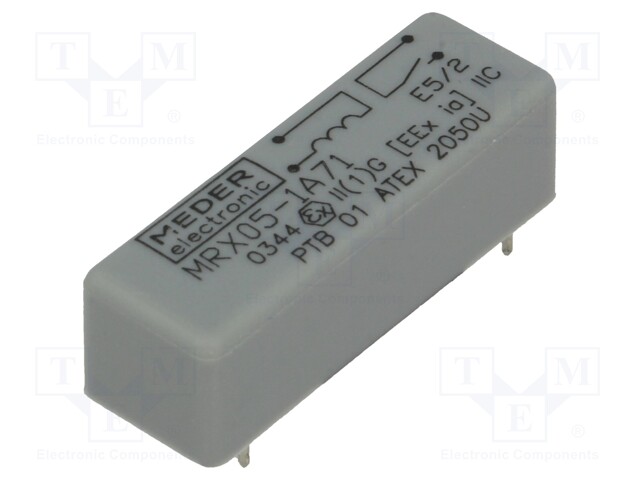

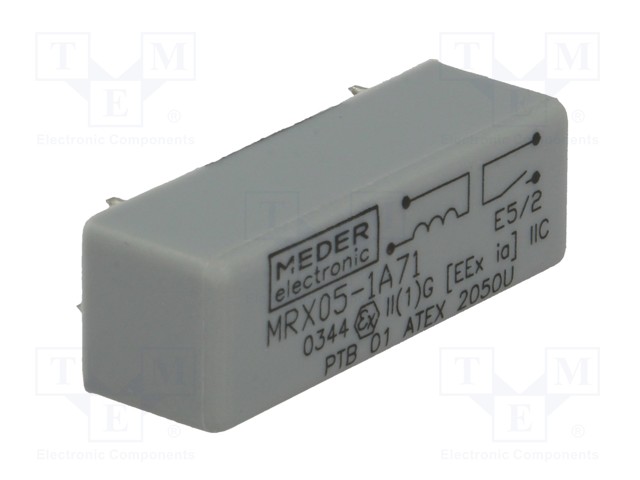

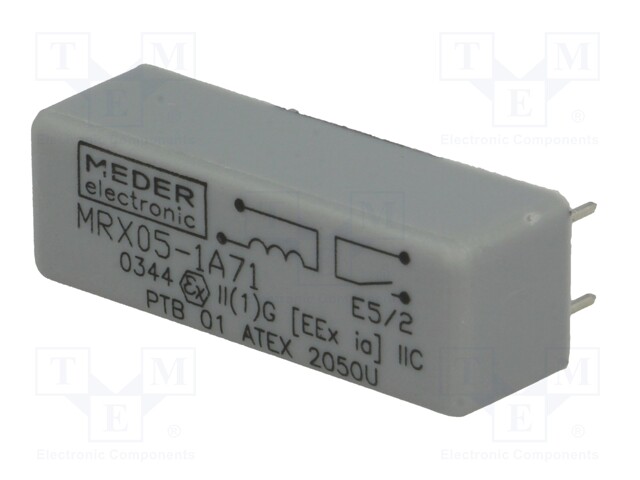

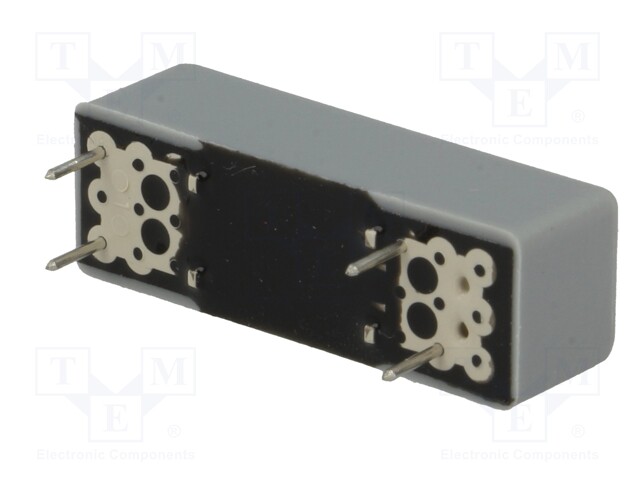

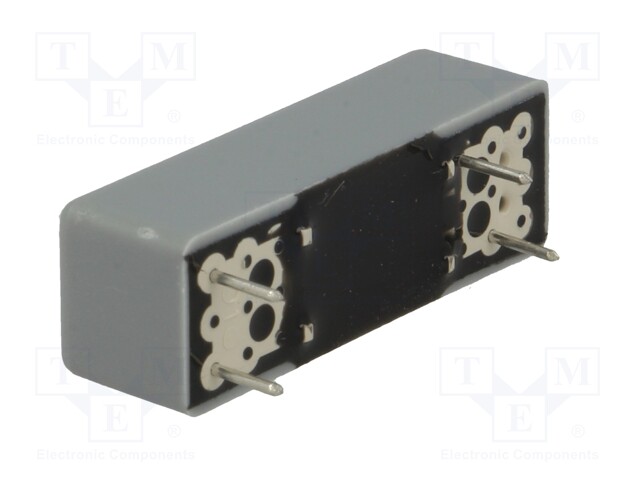

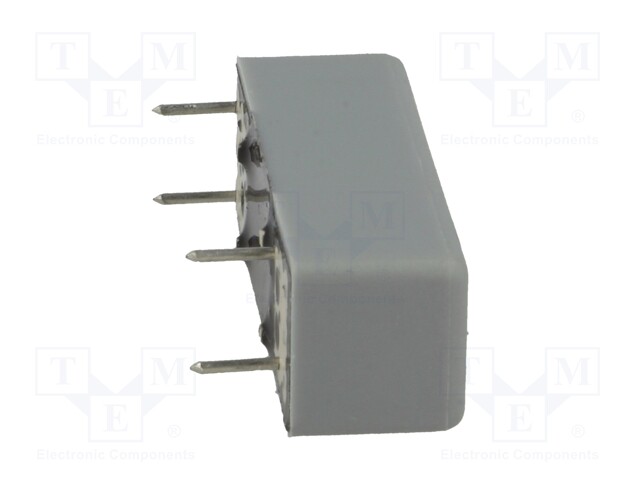

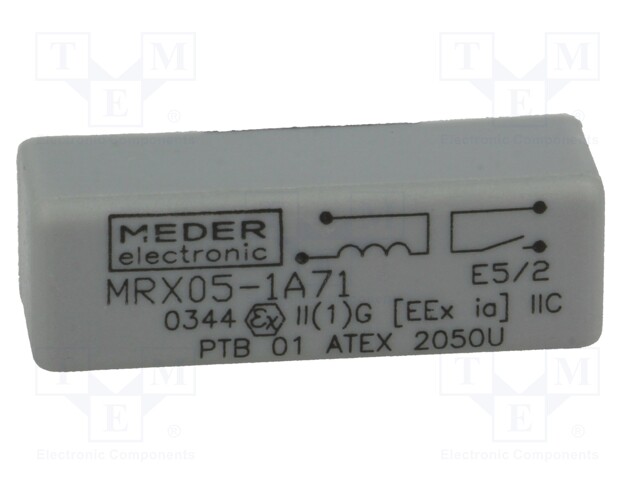

Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 10W; Rcoil: 360Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MRX05-1A71
    Tootja: MEDER
    Tootja tootekood: MRX05-1A71
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    10,26 € 10,26 € (KM-TA) 10.26 EUR

    10,26 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 10W; Rcoil: 360Ω

    Mounting PCB
    Operating temperature -20...85°C
    Terminal pitch 5.08mm
    Body dimensions 30x10x10mm
    Switched voltage ≤ 200V DC
    Min. insulation resistance 10GΩ
    Switching capacity 10W
    Coil resistance 360Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Type of relay reed
    Coil power consumption 70mW
    Operate time 500µs
    Release time 200µs
