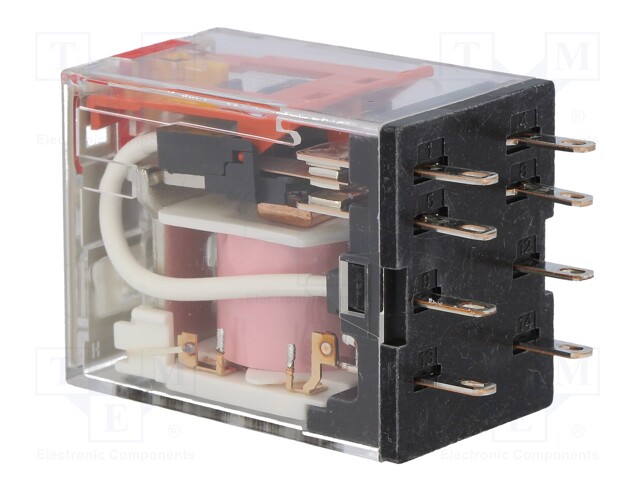

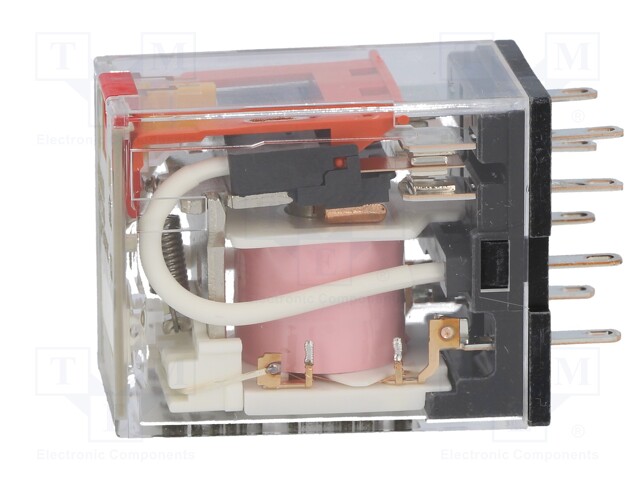

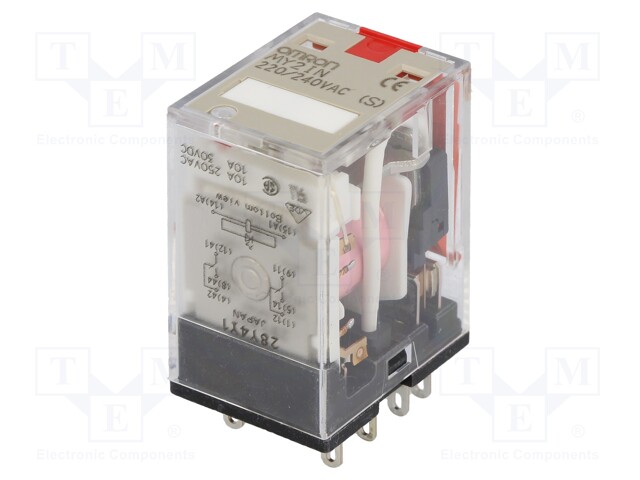

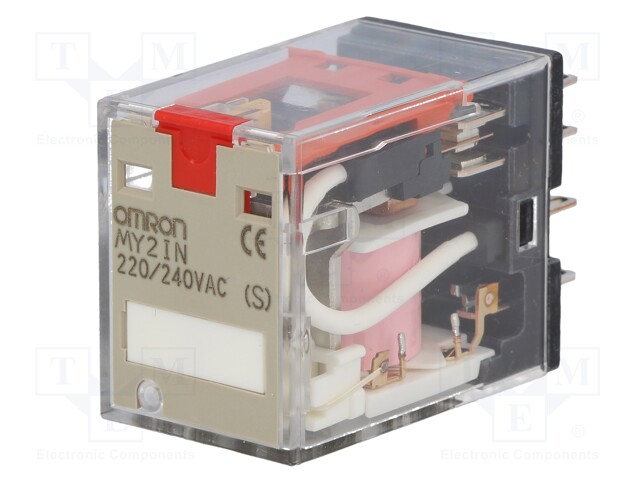

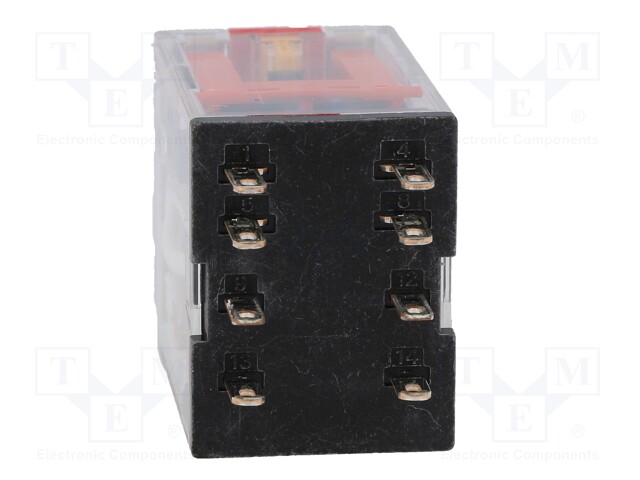

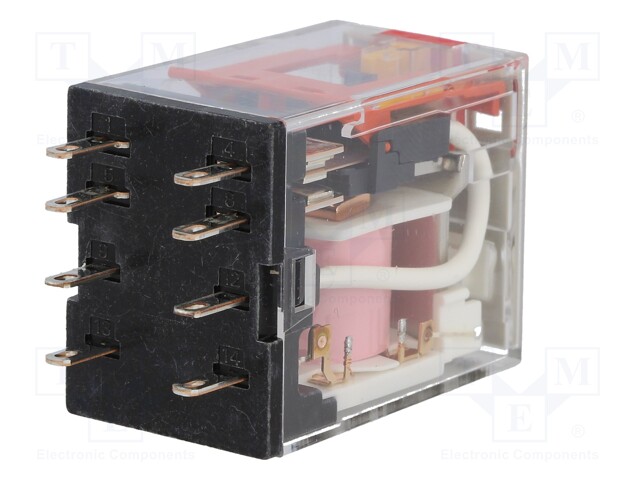

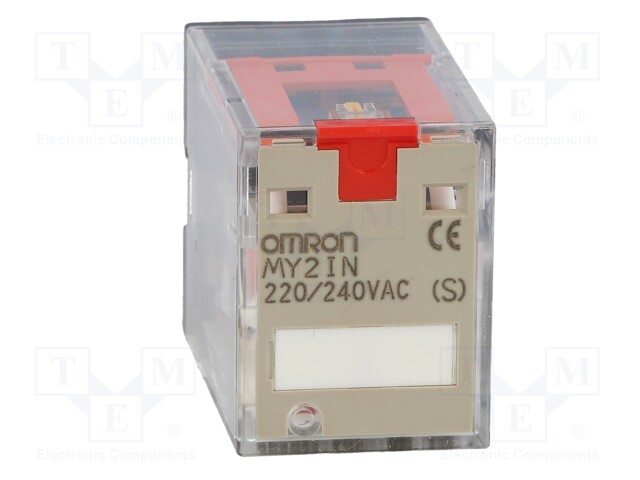

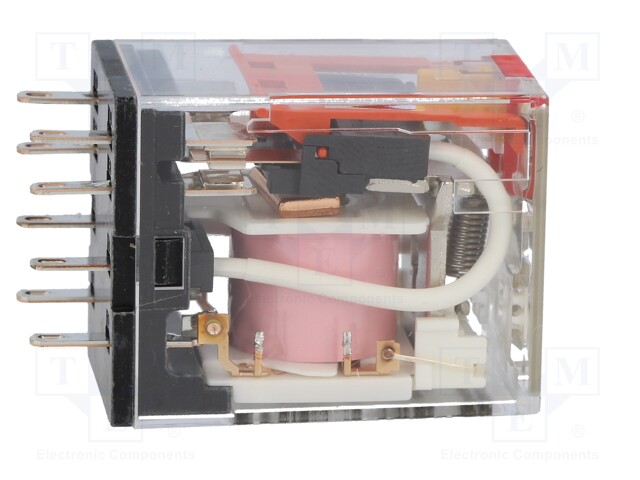

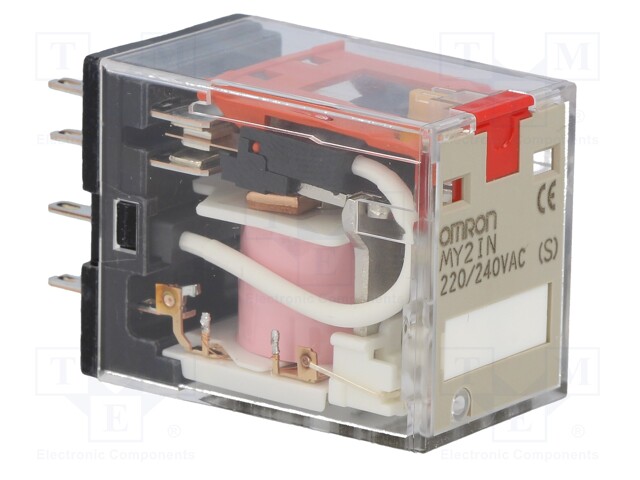

Relay: electromagnetic; DPDT; Ucoil: 230VAC; 10A/220VAC; 10A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MY2IN 220/240VAC (S)
    Tootja: OMRON
    Tootja tootekood: MY2IN 220/240VAC (S)
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Indication
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 230VAC; 10A/220VAC; 10A/24VDC

    Mounting socket
    Operating temperature -55...70°C
    Leads connectors
    Body dimensions 28x21.5x36mm
    Switched voltage ≤ 125V DC, ≤ 250V AC
    Indication LED
    Coil resistance 18.79kΩ
    Contacts configuration DPDT
    DC contacts rating @R 10A / 24V DC
    AC contacts rating @R 10A / 220V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Operate time 20ms
    Release time 20ms
    Coil current 5.3mA
