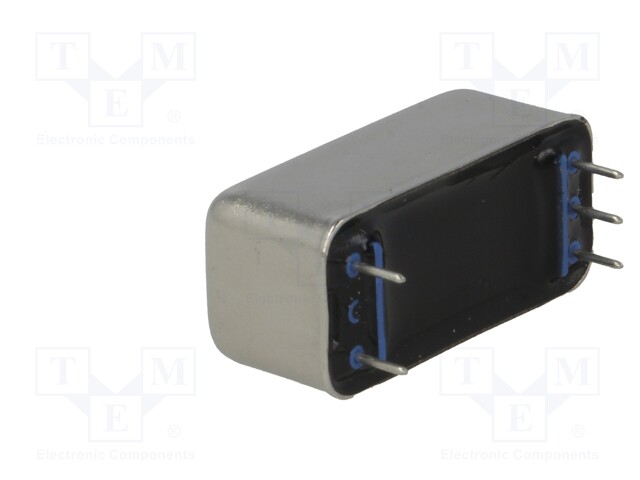

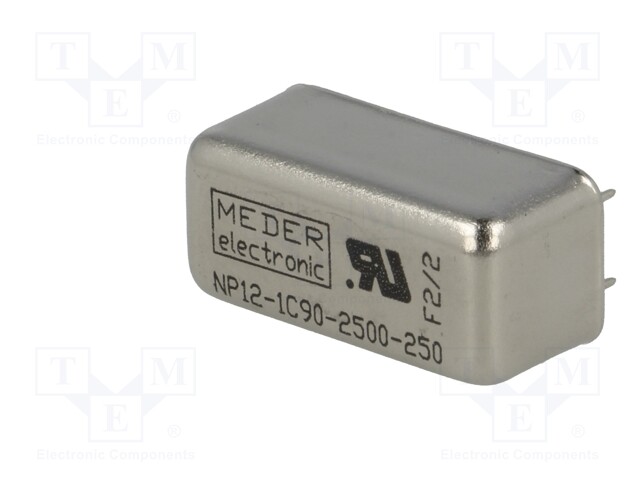

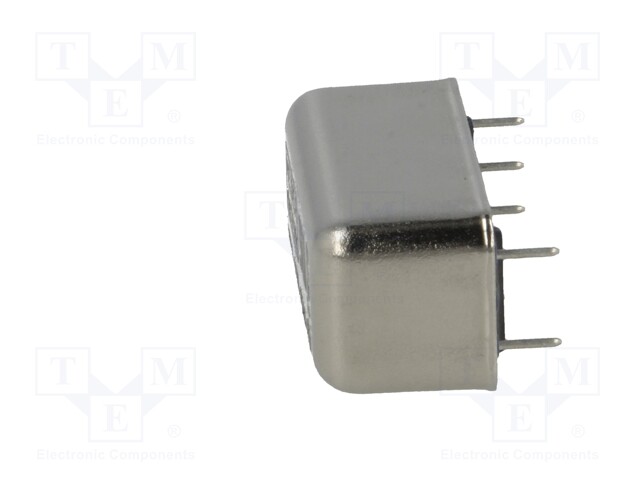

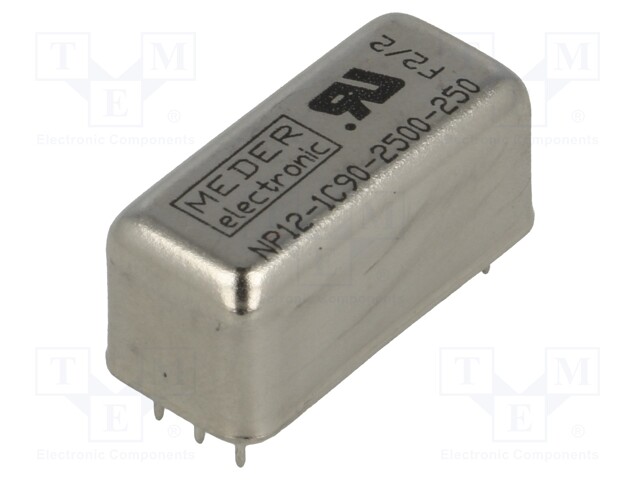

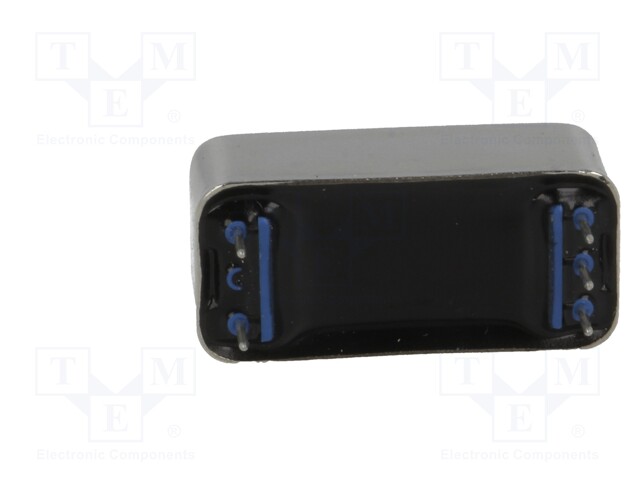

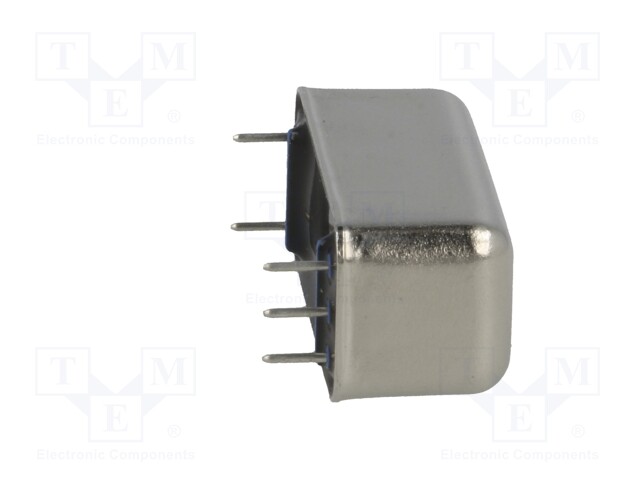

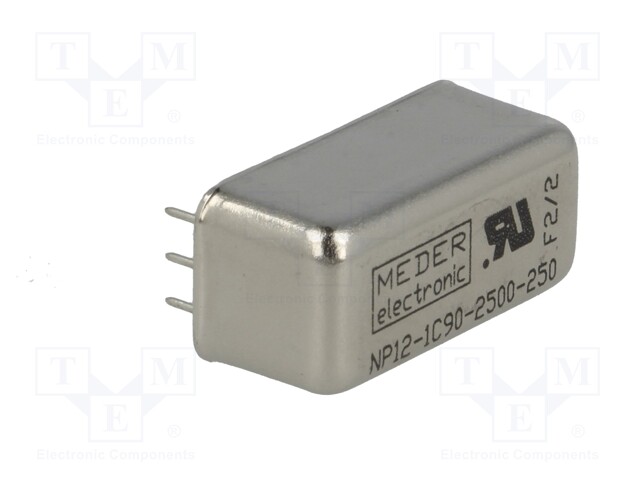

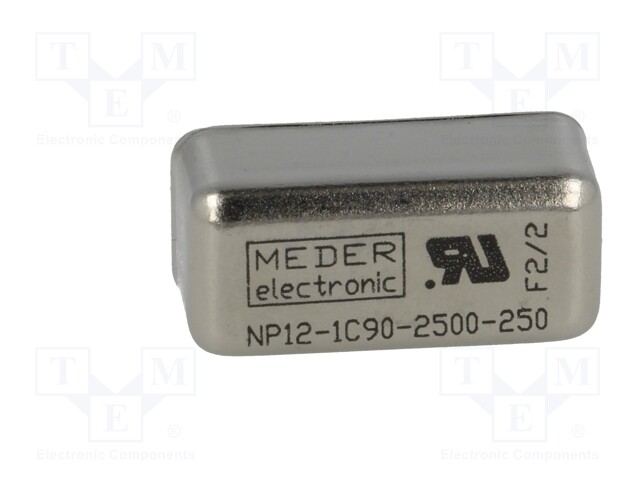

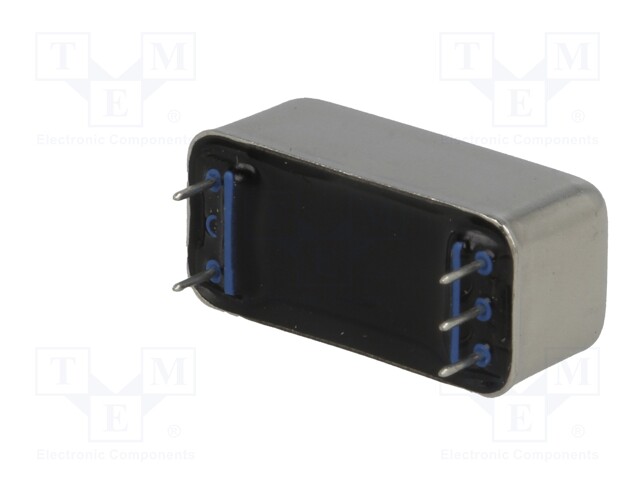

Relay: reed; SPDT; Ucoil: 12VDC; 1.2A; max.175VDC; max.175VAC; 3W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: NP12-1C90-2500-250
    Tootja: MEDER
    Tootja tootekood: NP12-1C90-2500-250
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    9,71 € 9,71 € (KM-TA) 9.71 EUR

    9,71 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPDT; Ucoil: 12VDC; 1.2A; max.175VDC; max.175VAC; 3W

    Mounting PCB
    Operating temperature -20...85°C
    Terminal pitch 5.08mm
    Body dimensions 22x10.2x10.1mm
    Switched voltage ≤ 175V AC, ≤ 175V DC
    Min. insulation resistance 10GΩ
    Switching capacity 3W
    Coil resistance 2.5kΩ
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    Contact resistance 150mΩ
    Contact current max. 1.2A
    Type of relay reed
    Coil power consumption 60mW
    Operate time 1.5ms
    Release time 1.5ms
