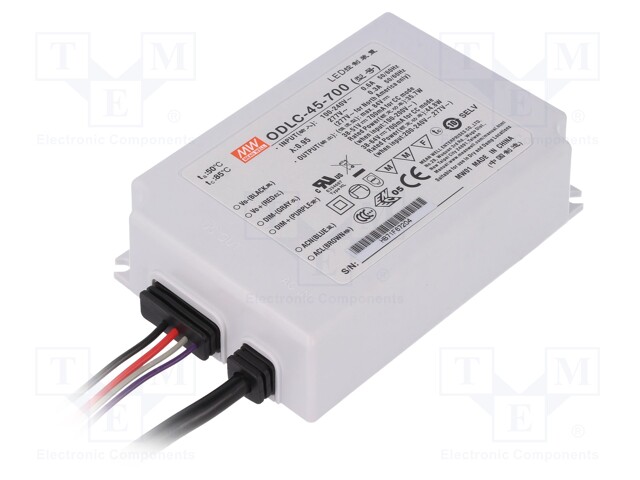

Power supply: switched-mode; LED; 45W; 38÷64VDC; 700mA; 90÷295VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: ODLC-45-700
    Tootja: MEAN WELL
    Tootja tootekood: ODLC-45-700
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • IP rating
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection

    27,26 € 27,26 € (KM-TA) 27.26 EUR

    27,26 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Power supply: switched-mode; LED; 45W; 38÷64VDC; 700mA; 90÷295VAC

    Output current 700mA
    Supply voltage 90...295V AC, 127...417V DC
    Power 45W
    Operating temperature -20...85°C
    IP rating IP67
    Protection short circuit protection
    Type of power supply switched-mode
    Series ODLC-45
    Application LED

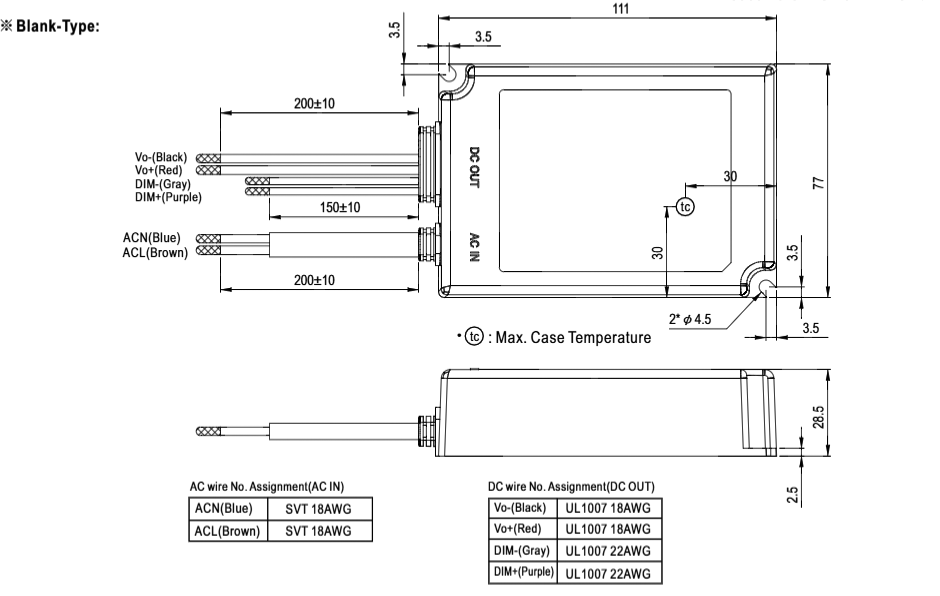

    Body dimensions 111x77x28.5mm
    Output voltage 38...64V DC
    Additional functions active PFC, dimming function 0-10V DC, PWM controlled dimming function
    Efficiency 85%
    Number of outputs 1
    Electrical connection wires
