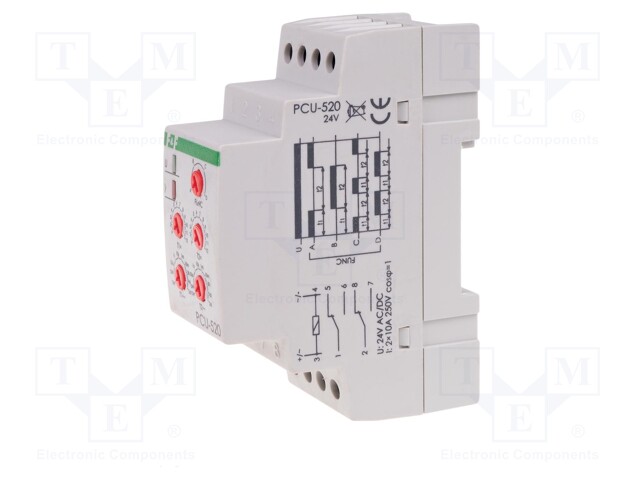

Timer; 0,1s÷24days; DPDT; 250VAC/10A; Usup: 24VAC; 24VDC; -25÷50°C
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PCU-520-24V
Tootja: F&F
Tootja tootekood: PCU-520-24V
Product downloads
Spetsifikatsioon tootele Timer; 0,1s÷24days; DPDT; 250VAC/10A; Usup: 24VAC; 24VDC; -25÷50°C
| Mounting | for DIN rail mounting |
| Supply voltage | 24V AC, 24V DC |
| Operating temperature | -25...50°C |
| IP rating | IP20 |
| Number of pins | 8 |

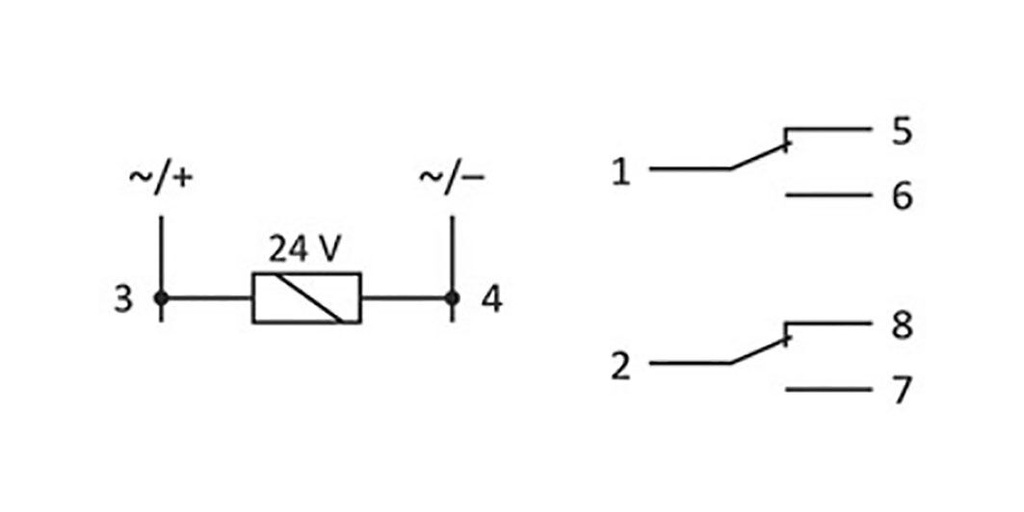

| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,1s...24days |

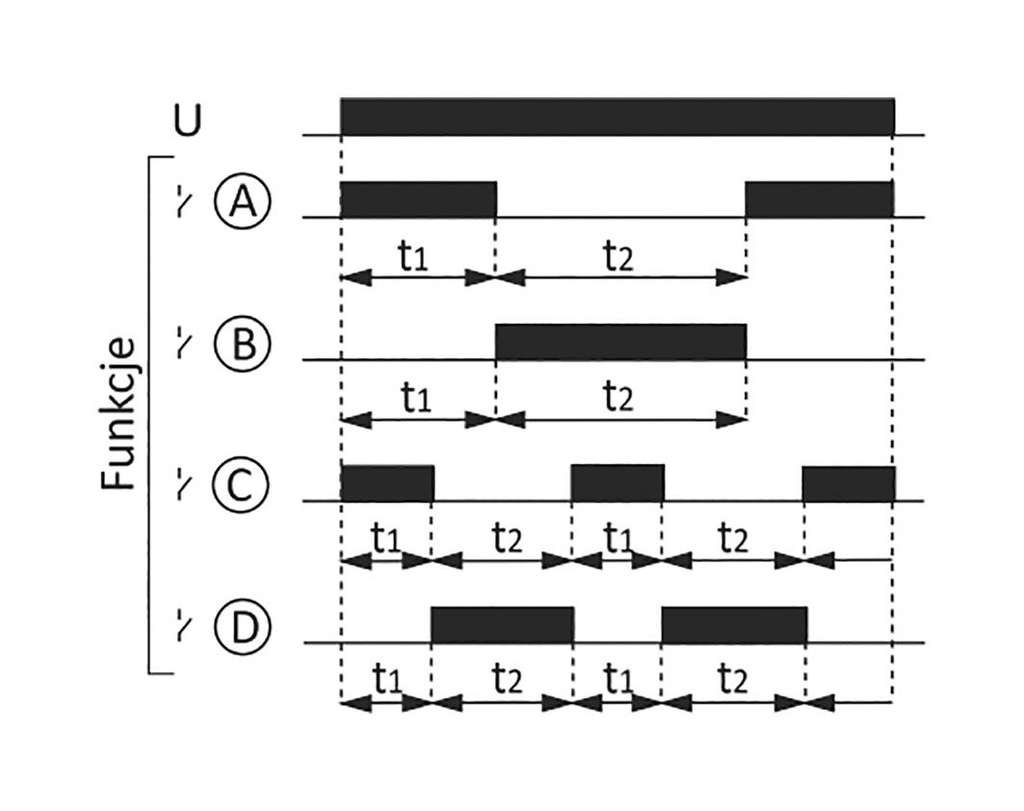

| Counter operation modes | cyclical operation with two independent times T1 and T2, pause first, cyclical operation with two independent times T1 and T2, pulse first, delayed switching off, delayed switching on |
| number of operation modes | 4 |
