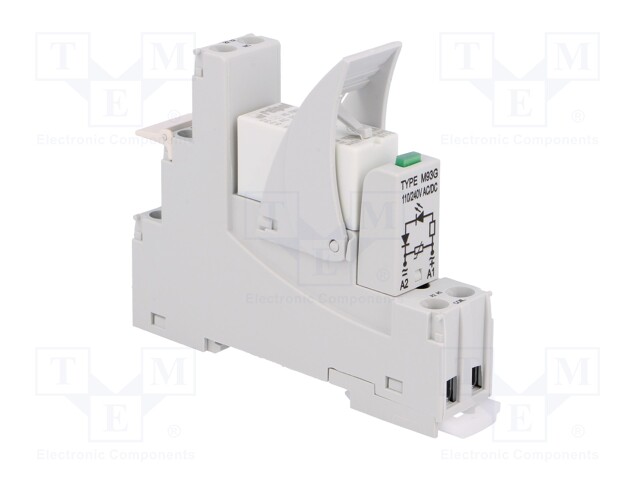

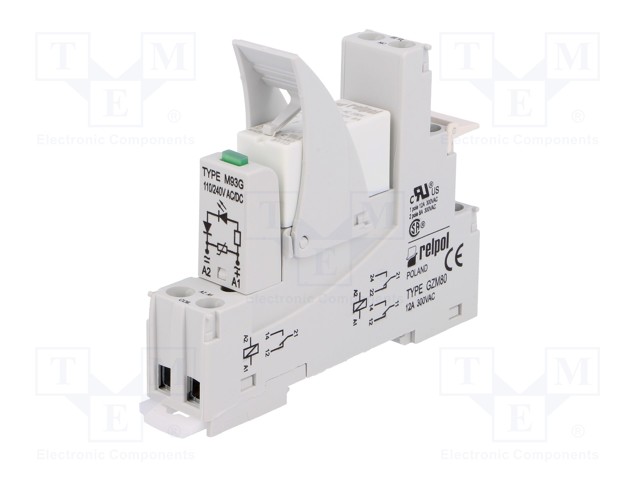

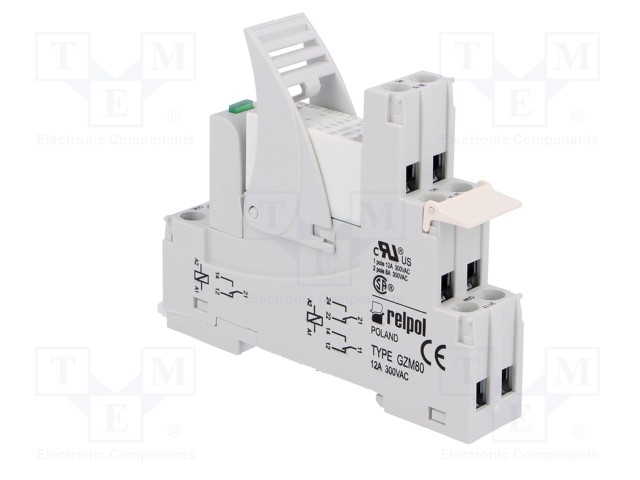

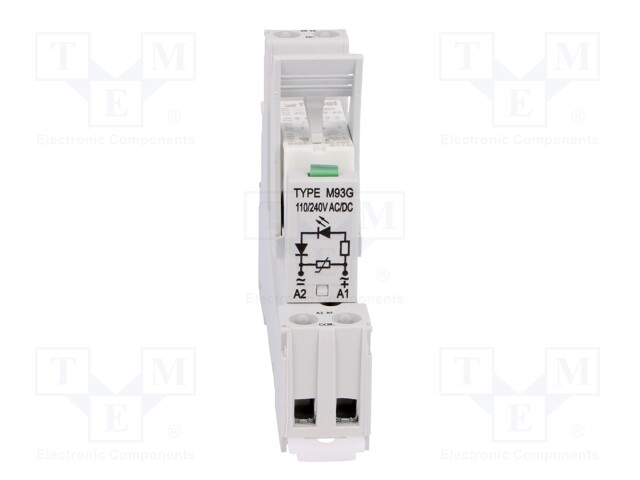

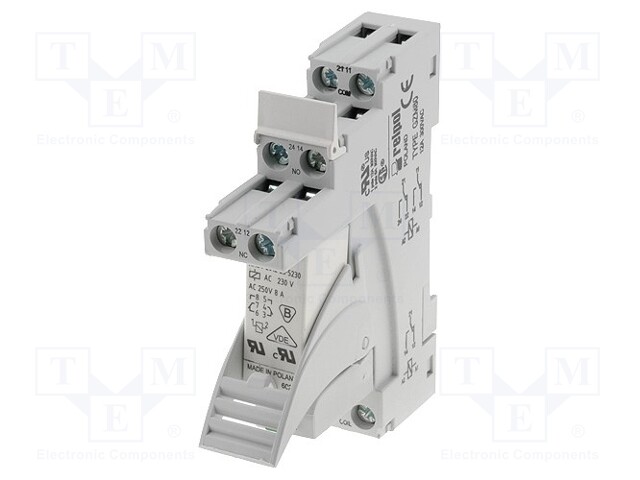

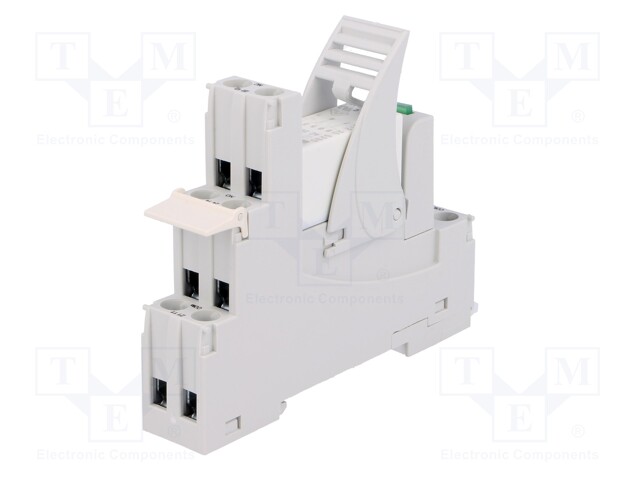

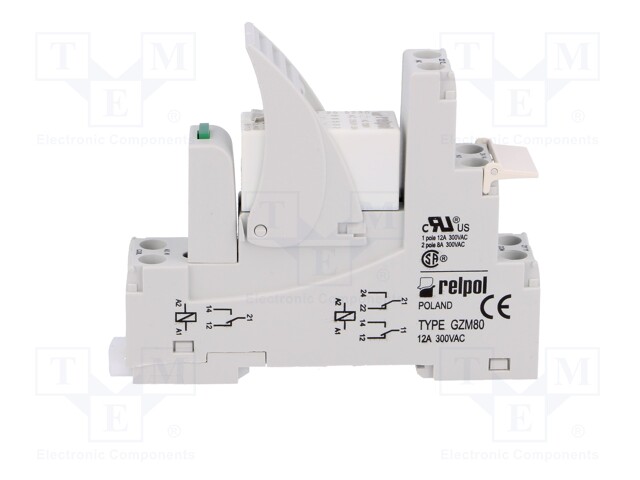

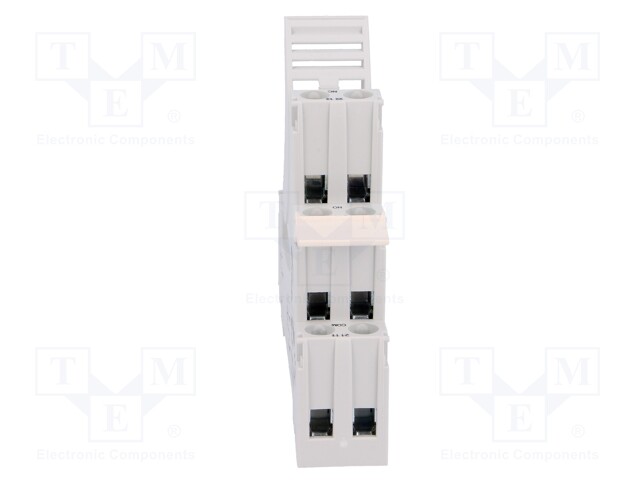

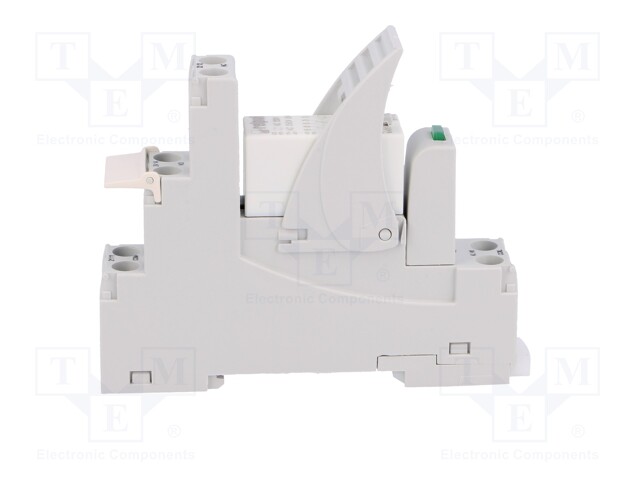

Relay: interface; DPDT; Ucoil: 230VAC; 8A; 8A/230VAC; 8A/24VDC; 2kVA

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PI84-230AC-M93G-MS-2012
    Tootja: RELPOL
    Tootja tootekood: PI84-230AC-M93G-MS-2012
    • Mounting
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • OEM number

    18,72 € 18,72 € (KM-TA) 18.72 EUR

    18,72 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; DPDT; Ucoil: 230VAC; 8A; 8A/230VAC; 8A/24VDC; 2kVA

    Mounting on panel, for DIN rail mounting
    Max. operating current 8A
    Operating temperature -40...70°C
    Leads screw terminals
    Contact material AgNi
    Body dimensions 78.1x15.9x66.5mm
    Kit contents ejector, indication module, label, RM84 relay, socket
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Switching capacity 2kVA
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 230V AC
    Relay variant Relay set
    Type of relay interface
    Operate time 7ms
    Release time 3ms
    OEM number 854915
