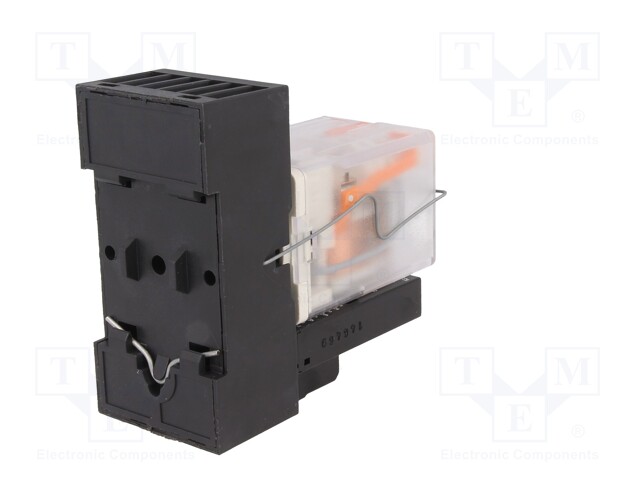

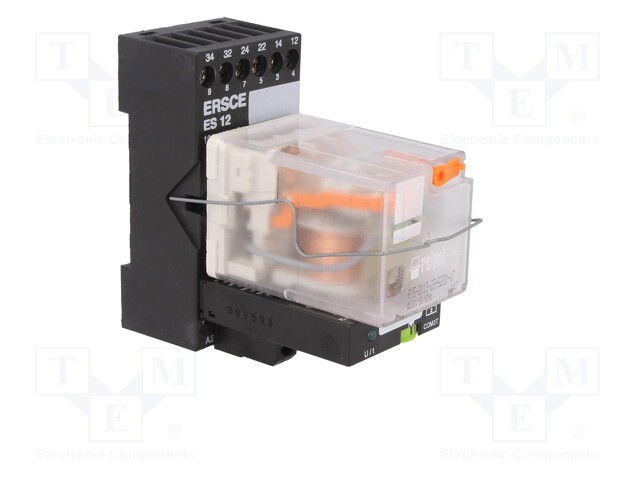

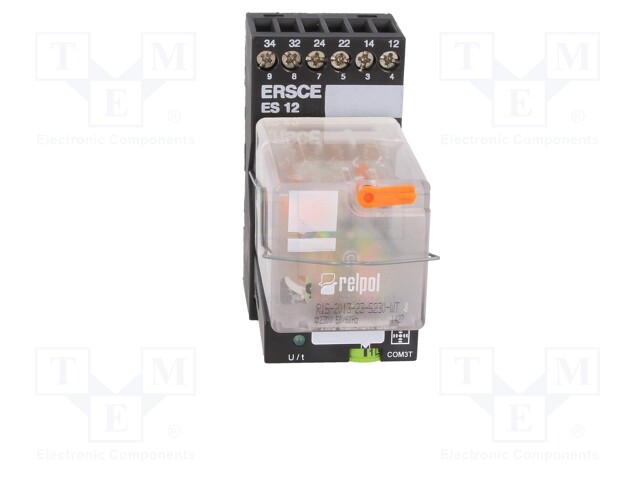

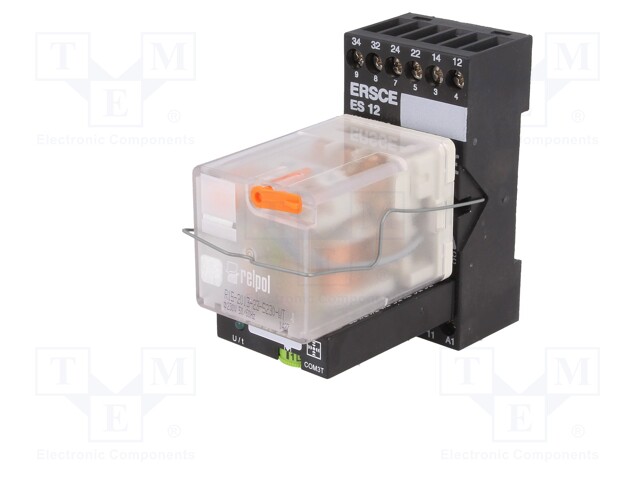

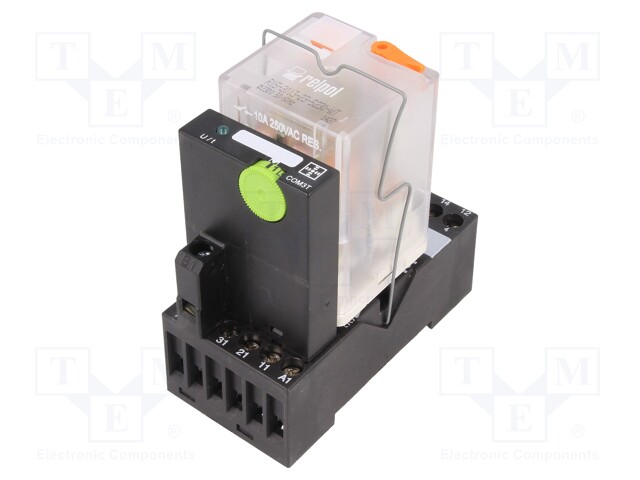

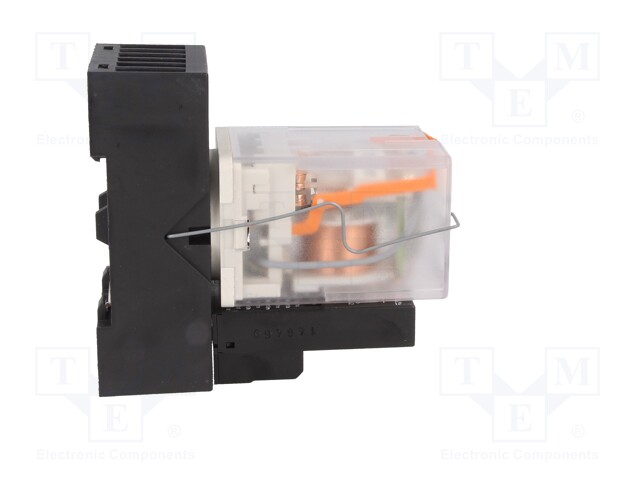

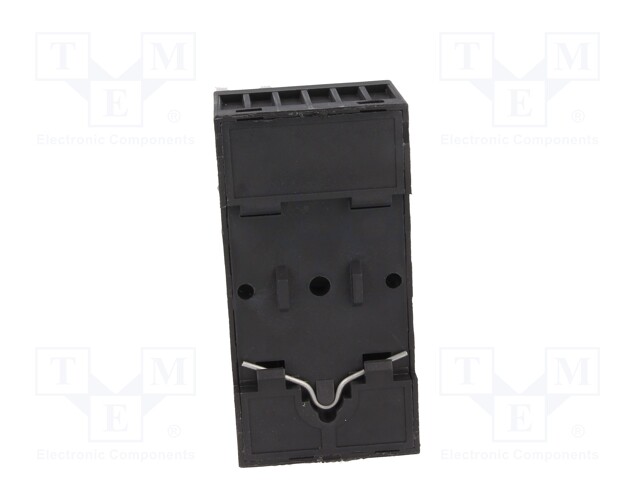

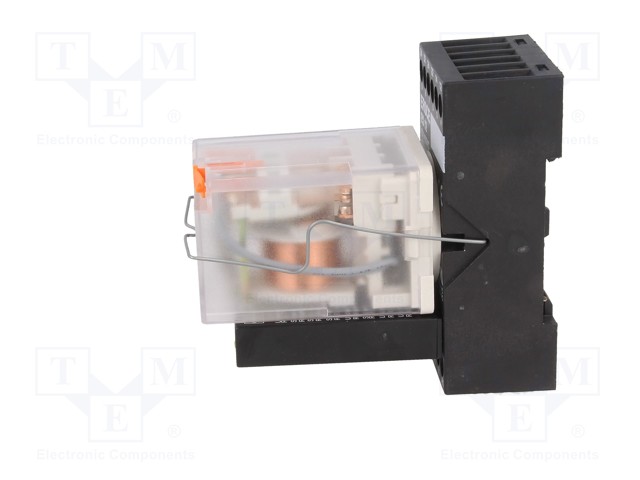

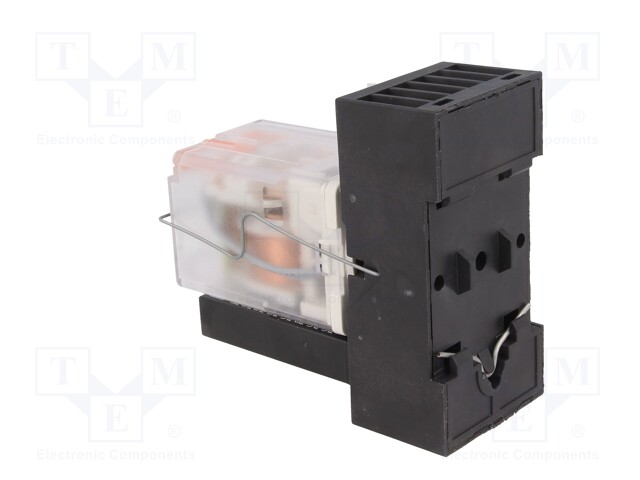

Timer; 1s÷10days; 3PDT; 250VAC/10A; 230VAC; DIN; -40÷55°C; PIN: 13
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PIR153-230AC-00T
Tootja: RELPOL
Tootja tootekood: PIR153-230AC-00T
Product downloads
Spetsifikatsioon tootele Timer; 1s÷10days; 3PDT; 250VAC/10A; 230VAC; DIN; -40÷55°C; PIN: 13
| Mounting | for DIN rail mounting |
| Supply voltage | 230V AC |
| Operating temperature | -40...55°C |
| IP rating | IP20 |
| Number of pins | 13 |
| Kind of output | 3PDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 1s...10days |
| Counter operation modes | delayed switching on, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| number of operation modes | 8 |
| OEM number | 855537 |
| The additional control inputs | START |
