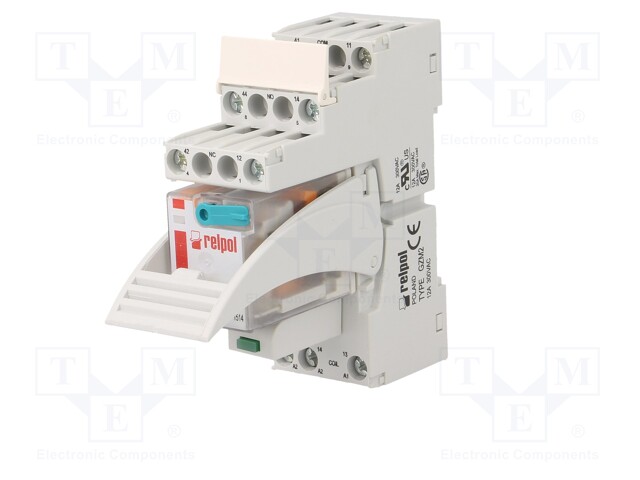

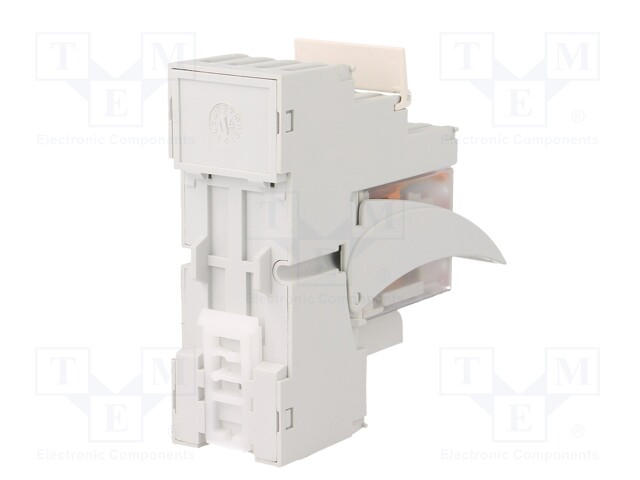

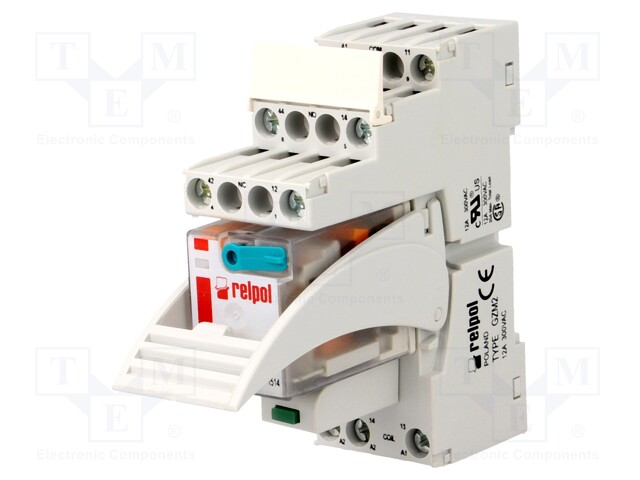

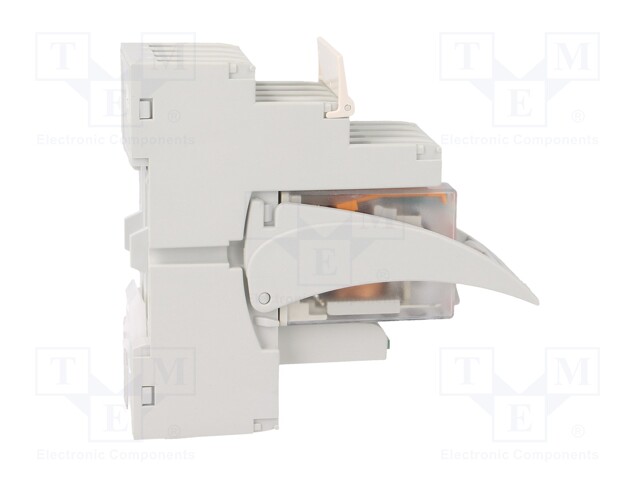

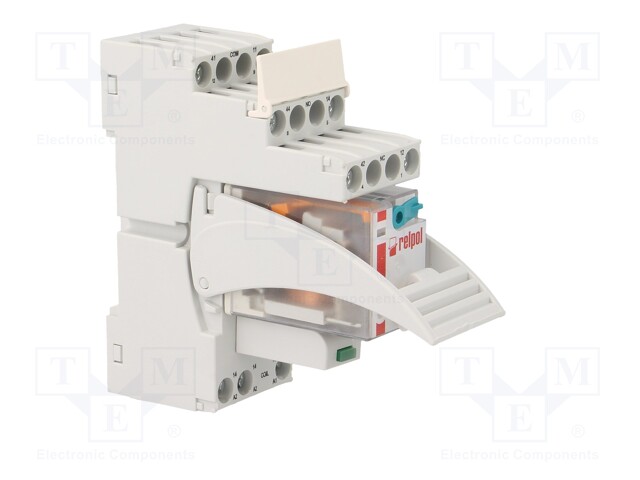

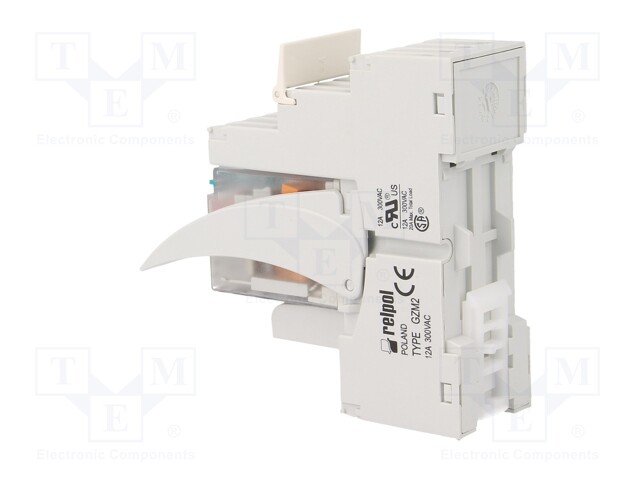

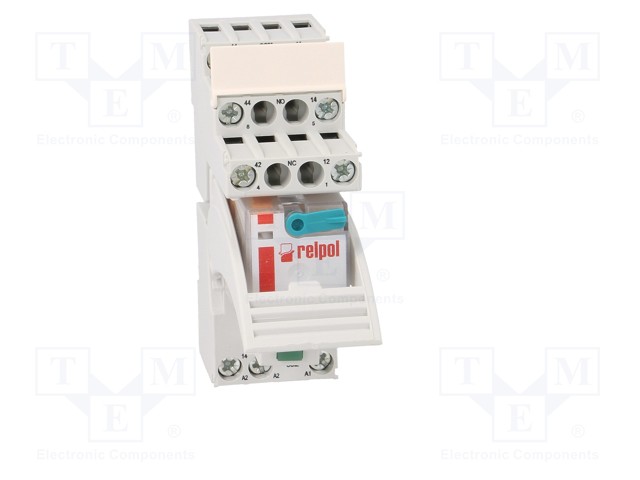

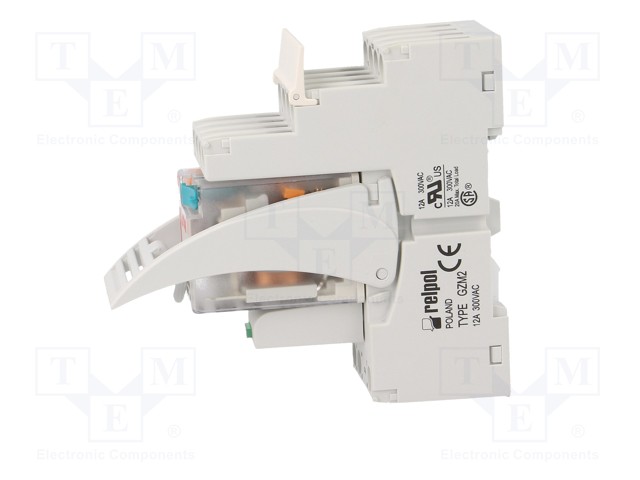

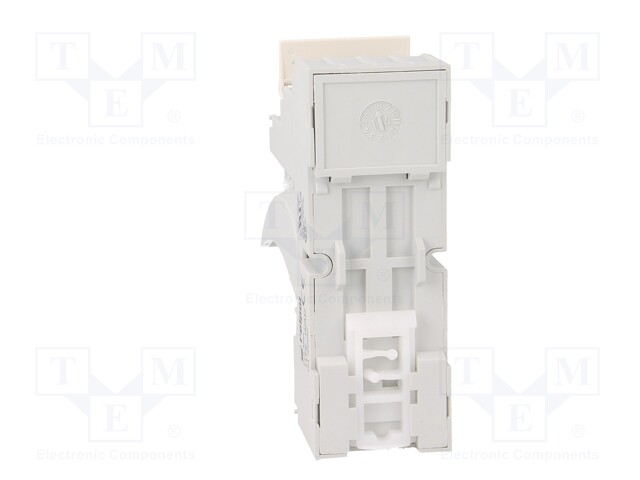

Relay: interface; DPDT; Ucoil: 12VDC; 12A; 12A/250VAC; 12A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PIR2-012DC-00LD
    Tootja: RELPOL
    Tootja tootekood: PIR2-012DC-00LD
    • Mounting
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • OEM number

    18,02 € 18,02 € (KM-TA) 18.02 EUR

    18,02 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; DPDT; Ucoil: 12VDC; 12A; 12A/250VAC; 12A/24VDC

    Mounting on panel, for DIN rail mounting
    Max. operating current 12A
    Operating temperature -40...55°C
    Leads screw terminals
    Contact material AgNi
    Body dimensions 75x27x82mm
    Kit contents ejector, indication module, label, R2 relay, socket
    Switched voltage ≤ 250V AC, ≤ 250V DC
    Coil resistance 160Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Relay variant Relay set
    Type of relay interface
    OEM number 854794
