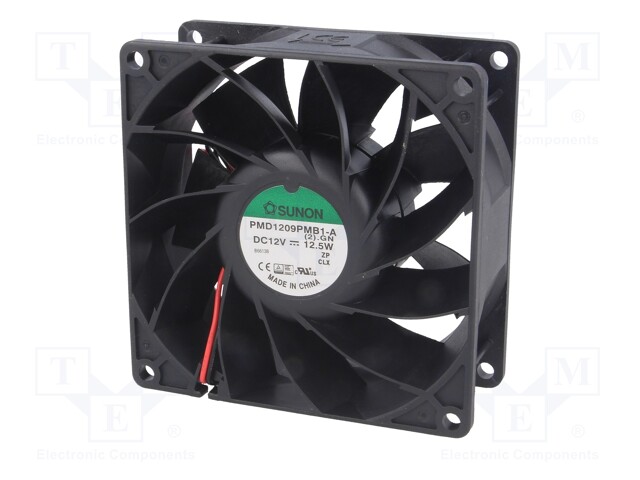

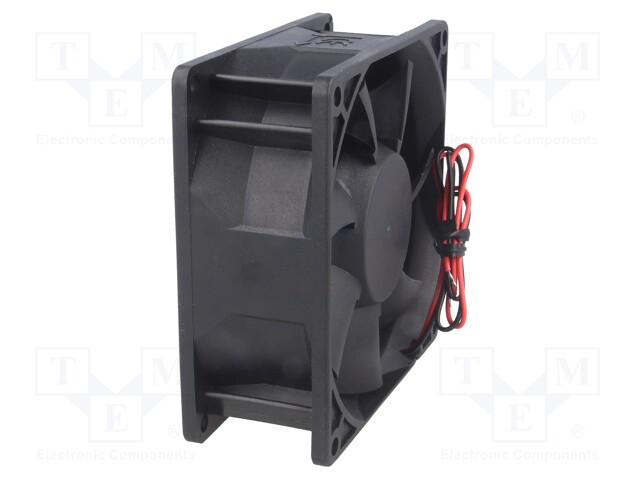

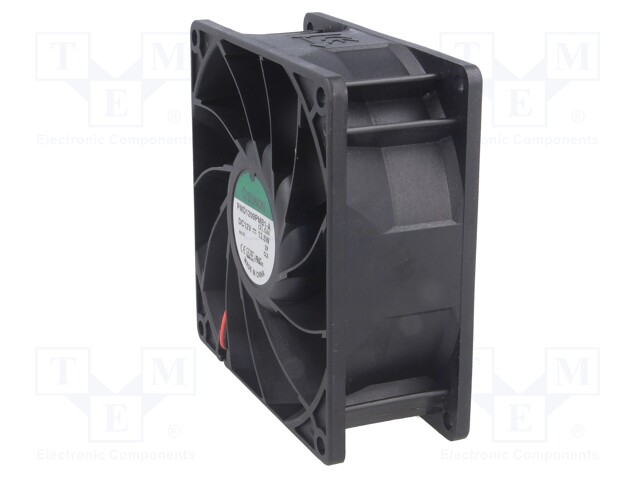

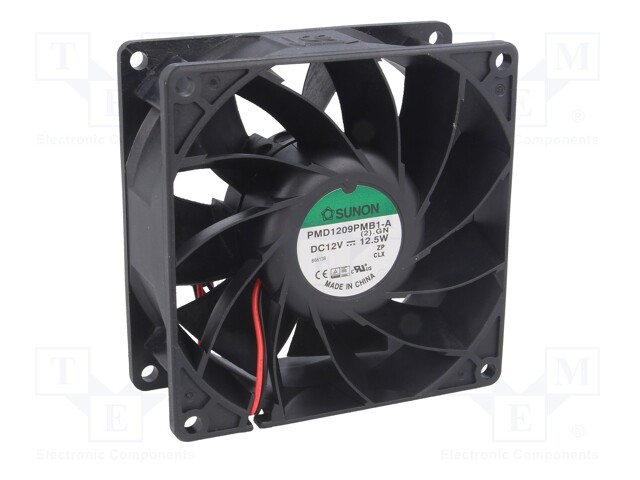

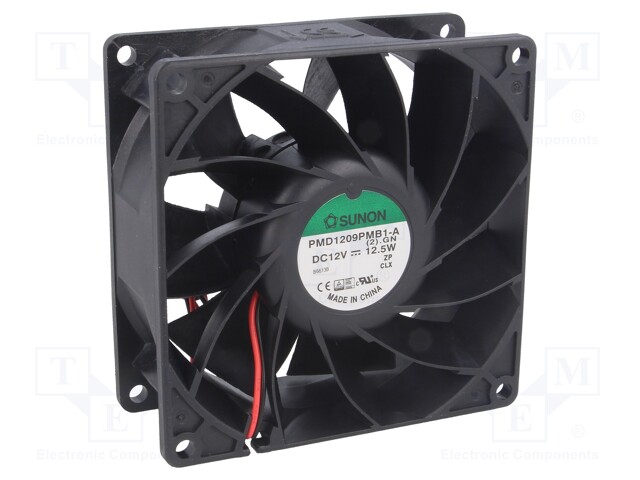

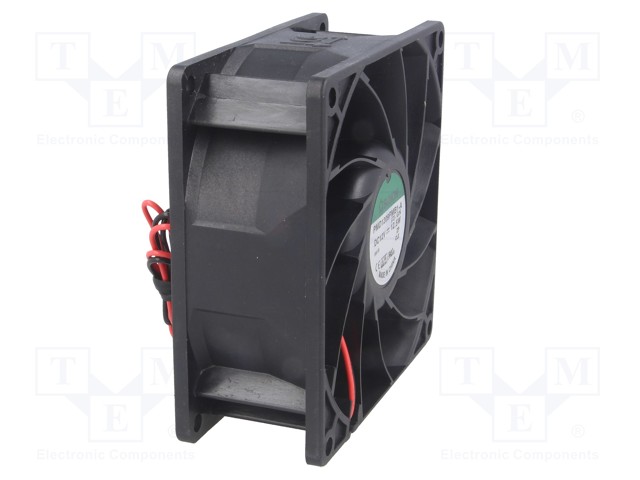

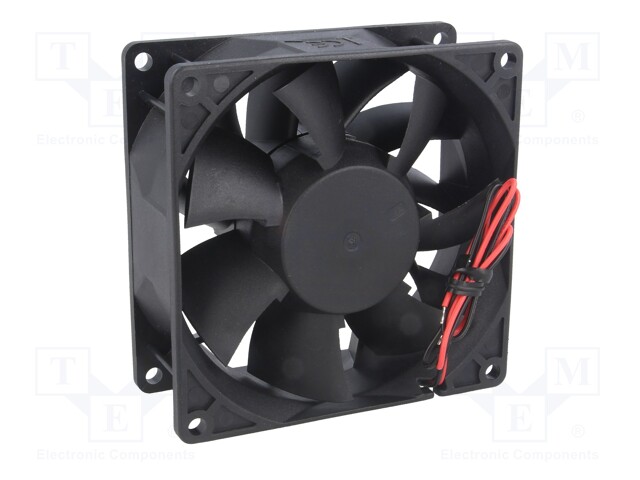

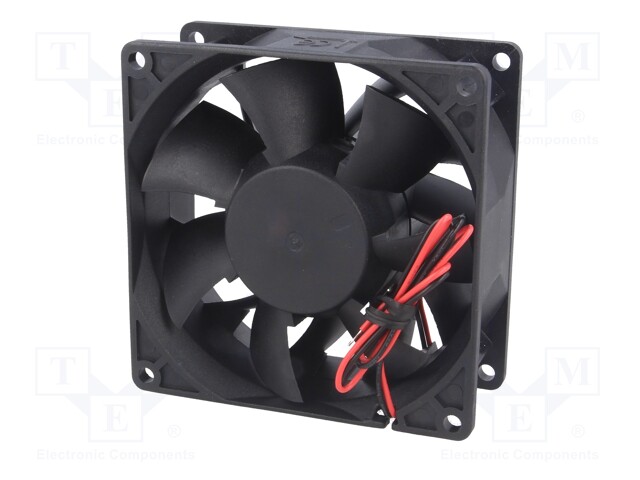

Fan: DC; axial; 12VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; Len: 300mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PMD1209PMB1-A(2).GN
    Tootja: SUNON
    Tootja tootekood: PMD1209PMB1-A(2).GN
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    22,40 € 22,40 € (KM-TA) 22.400000000000002 EUR

    22,40 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: DC; axial; 12VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; Len: 300mm

    Supply voltage 12V DC
    Operating voltage 6...13.8V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 1A
    Fan efficiency 204.21m<sup>3</sup>/h
    Power consumption 12.5W
    Additional functions Autorestart
    Rotational rate/speed 4900 (±10%)rpm
    Fan motor brushless DC motor
    Fan dimensions 92x92x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 18.02mm H<sub>2</sub>O
    Noise level 57.6dBA
