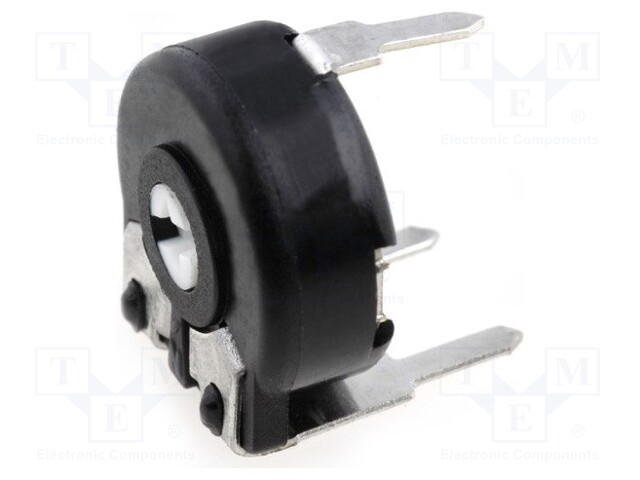

Potentiometer: mounting; single turn,horizontal; 1kΩ; 150mW; ±20%

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PT10LV10102A2020S
    Tootja: PIHER
    Tootja tootekood: PT10LV10102A2020S
    • Mounting
    • Power
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Height
    • Body dimensions
    • Diameter
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    0,77 € 0,77 € (KM-TA) 0.77 EUR

    0,77 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Potentiometer: mounting; single turn,horizontal; 1kΩ; 150mW; ±20%

    Mounting THT
    Power 150mW
    Resistance 1kΩ
    Operating voltage 200V
    Operating temperature -25...70°C
    Tolerance ±20%
    Terminal pitch 5x10mm
    Height 4.5mm

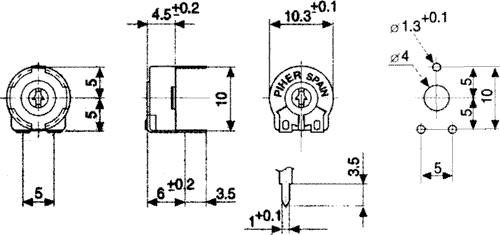

    Body dimensions Ø10.3x4.5mm
    Diameter 10.3mm
    Kind of potentiometer horizontal, single turn
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 235° ±5
    Electrical rotation angle 220° ±20
