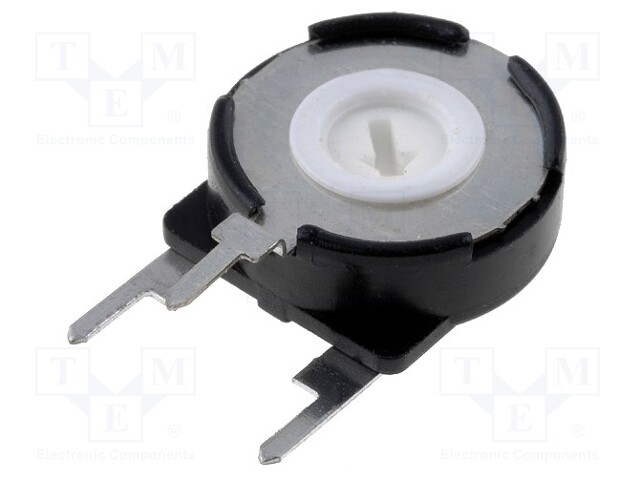

Potentiometer: mounting; single turn,vertical; 100Ω; 150mW; ±30%

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PT15LH05101A2020S
    Tootja: PIHER
    Tootja tootekood: PT15LH05101A2020S
    • Mounting
    • Power
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Height
    • Body dimensions
    • Diameter
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    0,80 € 0,80 € (KM-TA) 0.8 EUR

    0,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Potentiometer: mounting; single turn,vertical; 100Ω; 150mW; ±30%

    Mounting THT
    Power 150mW
    Resistance 100Ω
    Operating voltage 250V
    Operating temperature -25...70°C
    Tolerance ±30%
    Terminal pitch 5x10mm
    Height 6mm
    Body dimensions Ø15x6mm
    Diameter 15mm
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 265° ±5
    Electrical rotation angle 250° ±20
