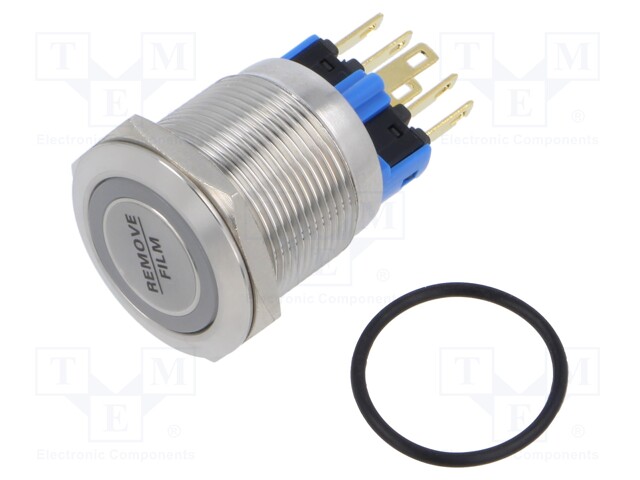

Switch: vandal resistant; Pos: 2; SPST NC + NO; 2A/48VDC; IP65

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PV7F2T0SS-335
    Tootja: E-SWITCH
    Tootja tootekood: PV7F2T0SS-335
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Panel thickness
    • Backlight colour
    • Illumination
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Key stroke
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button shape
    • Button marking
    • Illumination voltage
    • Button material

    23,74 € 23,74 € (KM-TA) 23.740000000000002 EUR

    23,74 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPST NC + NO; 2A/48VDC; IP65

    Mounting on panel
    Operating temperature -20...55°C
    IP rating IP65
    Type of switch vandal resistant
    Contact plating silver plated
    Number of positions 2
    Leads for soldering
    Max. contact resistance 50mΩ
    Body material stainless steel
    Mounting hole diameter Ø22mm
    Body colour silver
    Panel thickness ≤ 12mm
    Backlight colour green
    Illumination LED, ring
    Min. insulation resistance 1GΩ
    Electrical life 50000cycles
    Key stroke 2.2mm
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 2A / 48V DC
    Switching method OFF-ON, ON-OFF
    Stable positions number 2
    Operating Force 4N
    Actuator colour silver
    Button shape flat, round
    Button marking blank
    Illumination voltage 24V
    Button material stainless steel
