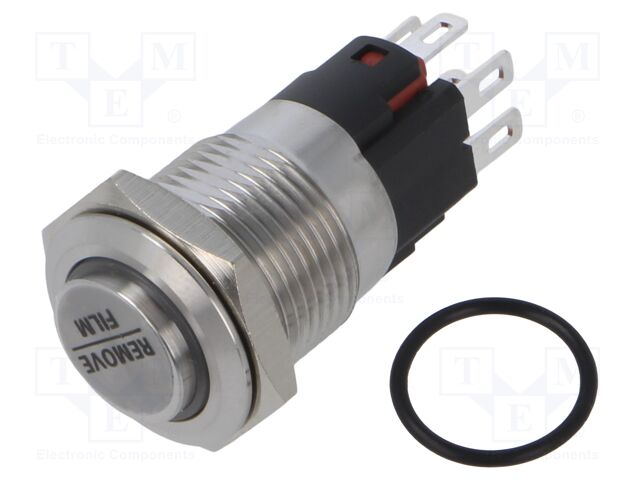

Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/24VDC; IP65

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PVB3H2B0SS3R1
    Tootja: E-SWITCH
    Tootja tootekood: PVB3H2B0SS3R1
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Panel thickness
    • Backlight colour
    • Illumination
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Key stroke
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button shape

    16,98 € 16,98 € (KM-TA) 16.98 EUR

    16,98 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/24VDC; IP65

    Mounting on panel
    Operating temperature -25...55°C
    IP rating IP67
    Type of switch vandal resistant
    Contact plating unplated
    Number of positions 2
    Leads for soldering
    Contact material silver
    Max. contact resistance 50mΩ
    Mounting hole diameter Ø16mm
    Body colour silver
    Body dimensions Ø16x26mm
    Mechanical durability 1000000cycles
    Panel thickness 1...7mm
    Backlight colour RGB
    Illumination LED, ring
    Min. insulation resistance 1GΩ
    Electrical life 50000cycles
    Key stroke 3mm
    Contacts configuration SPDT
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 5A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 2.5N
    Actuator colour silver
    Button shape prominent, round
