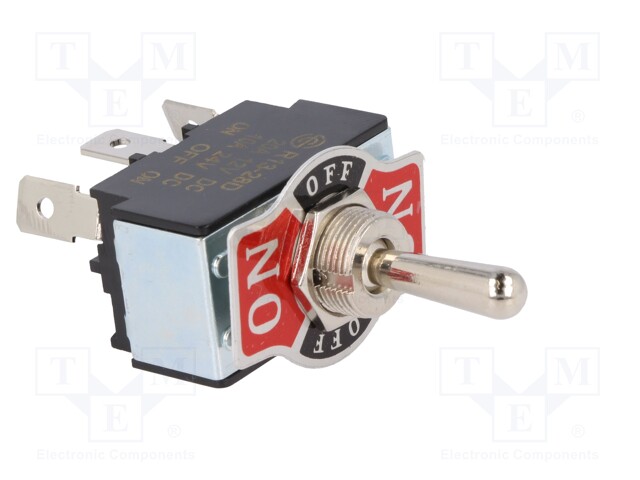

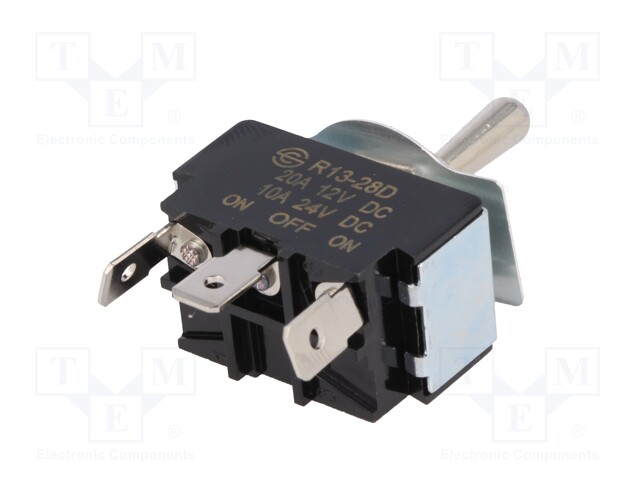

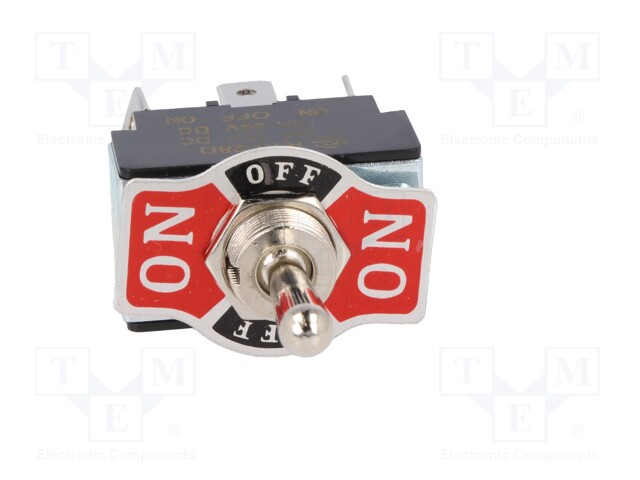

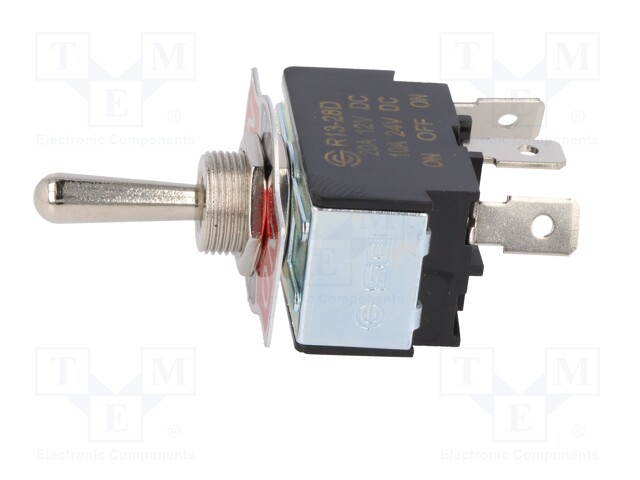

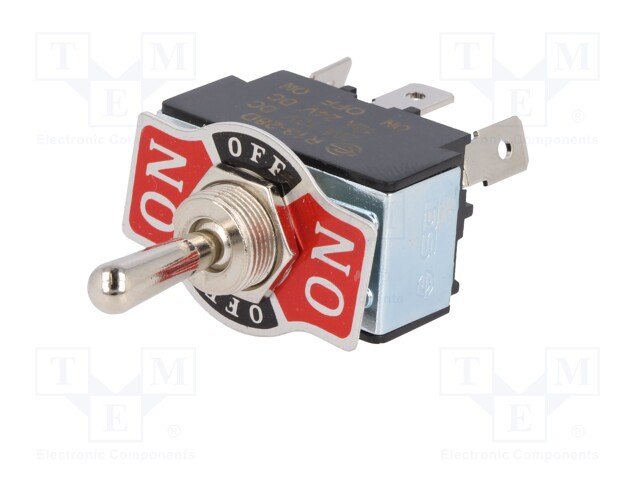

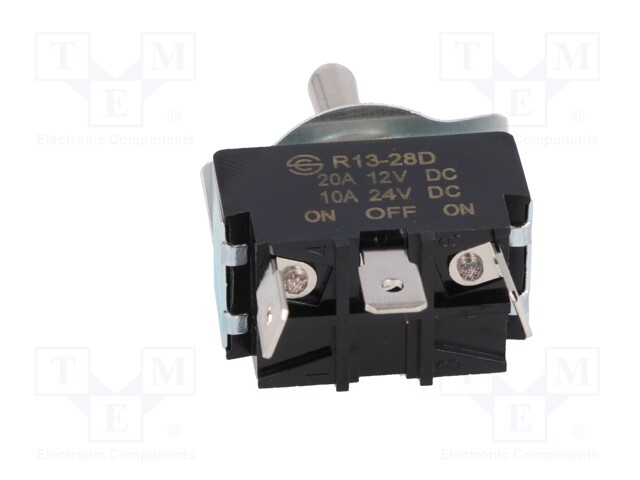

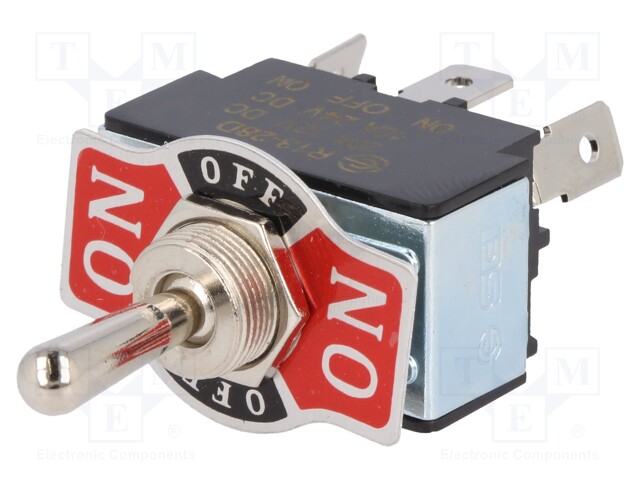

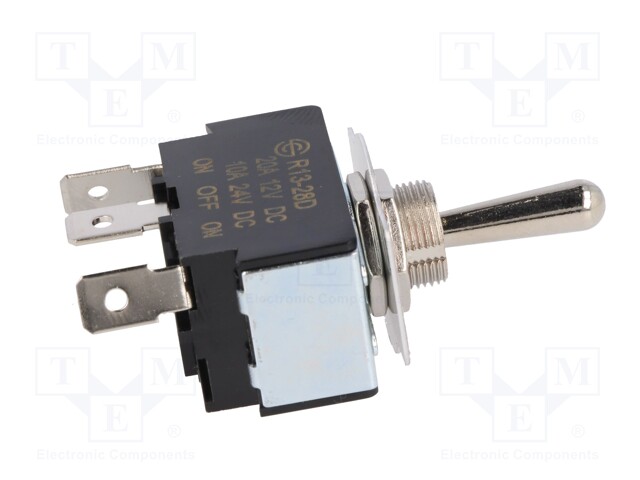

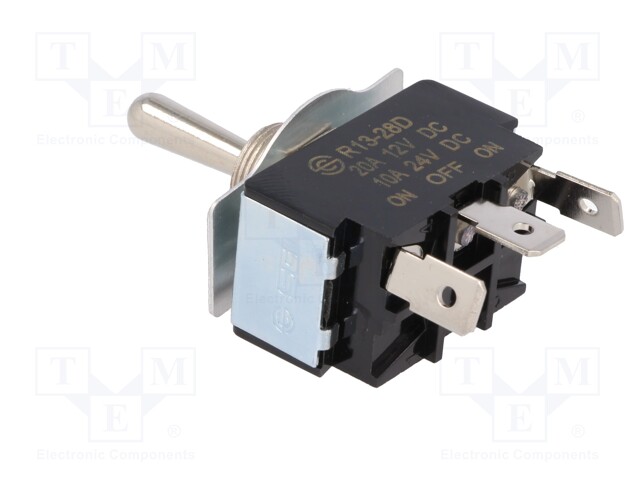

Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 20A/12VDC; 0÷55°C; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R13-28D-01-HPH
    Tootja: SCI
    Tootja tootekood: R13-28D-01-HPH
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Terminals plating
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator material
    • Knob height
    • Kind of toggle

    3,39 € 3,39 € (KM-TA) 3.39 EUR

    3,39 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 20A/12VDC; 0÷55°C; 50mΩ

    Operating temperature 0...55°C
    Type of switch toggle
    Number of positions 3
    Leads connectors
    Max. contact resistance 50mΩ

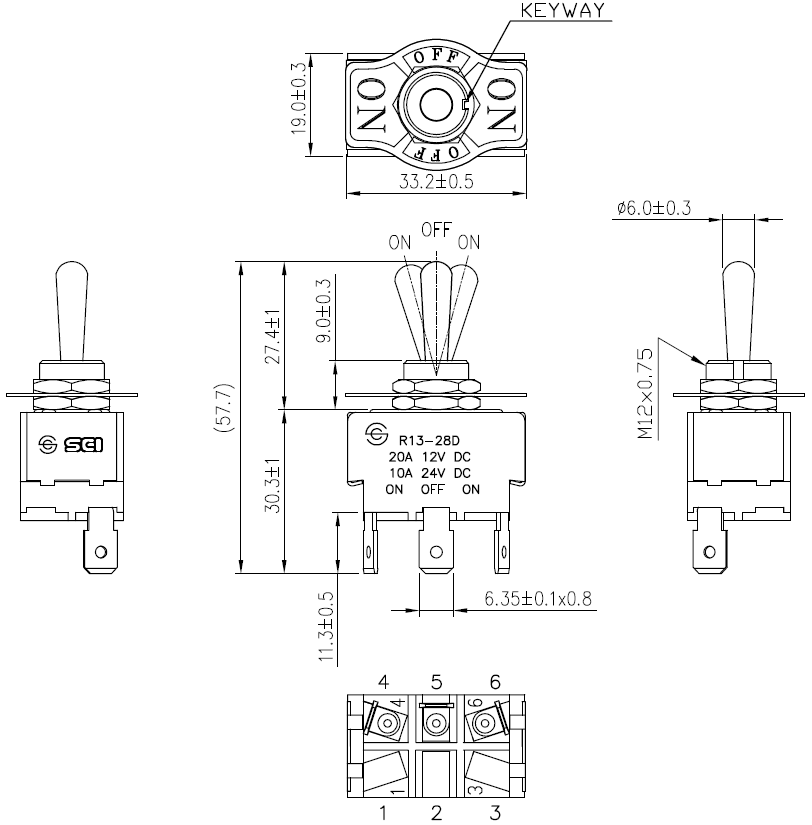

    Mounting hole diameter Ø12.2mm
    Body dimensions 33.2x19x19mm
    Panel thickness ≤ 6mm
    Terminals plating nickel
    Test voltage 1.5kV
    Contacts configuration SP3T
    DC contacts rating @R 20A / 12V DC
    Switching method ON-OFF-ON
    Stable positions number 3
    Actuator material metal
    Knob height 18.4mm
    Kind of toggle round
