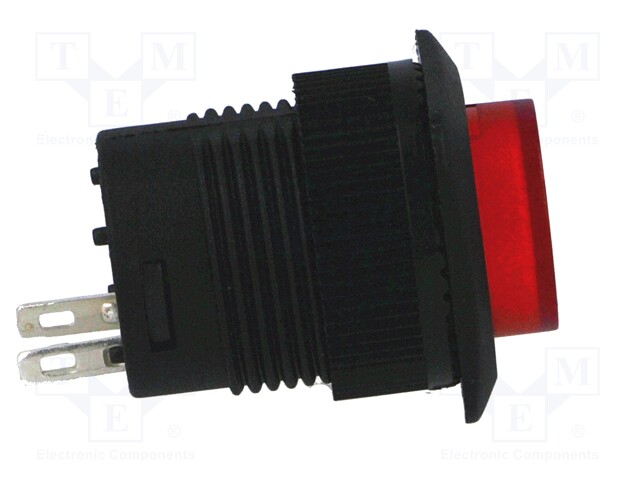

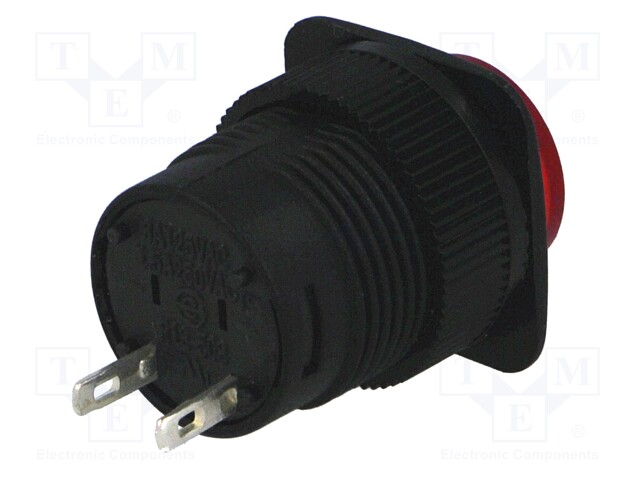

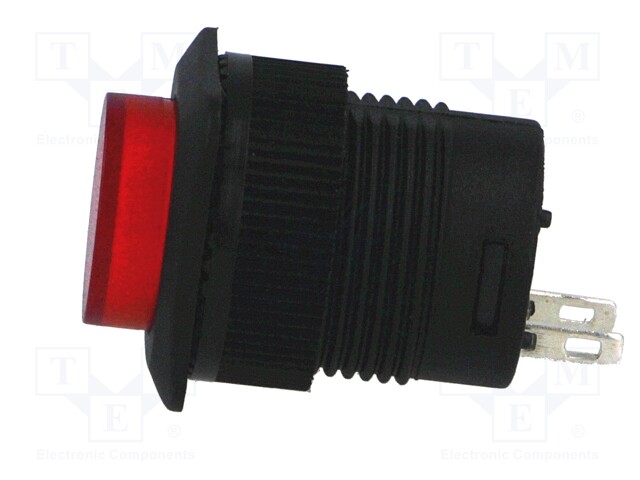

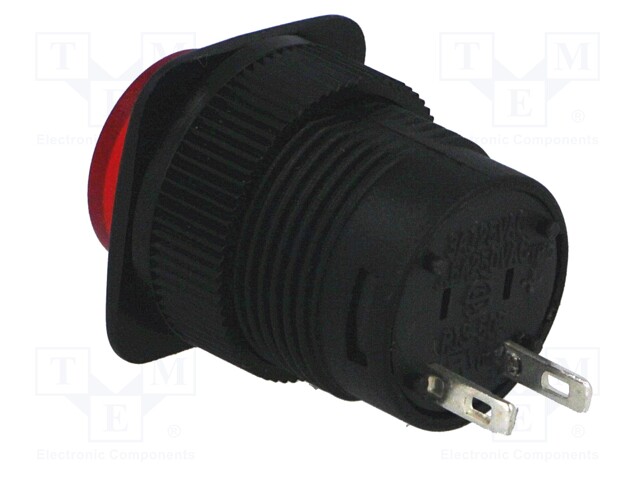

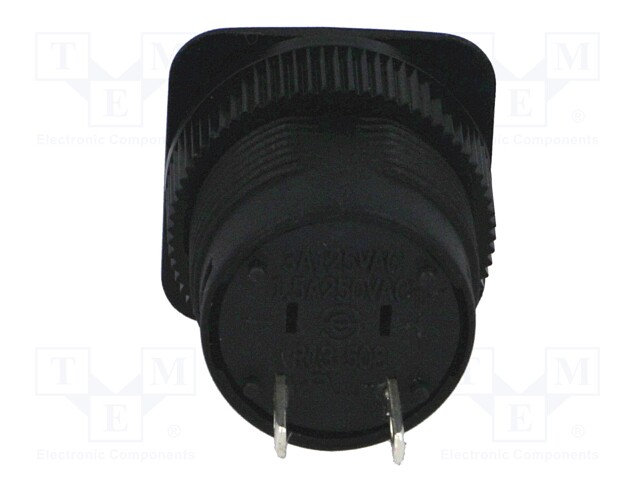

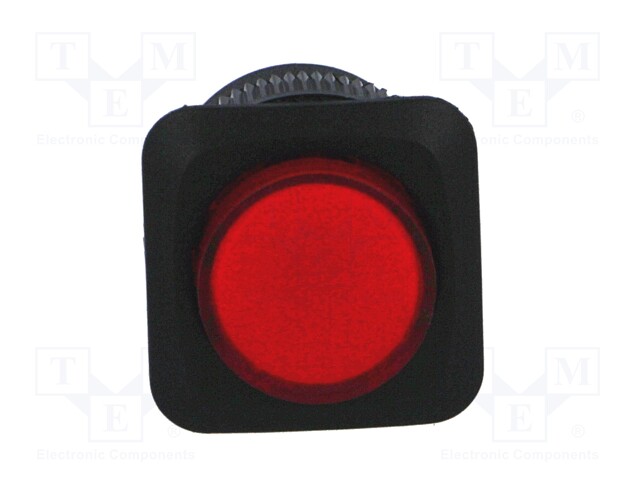

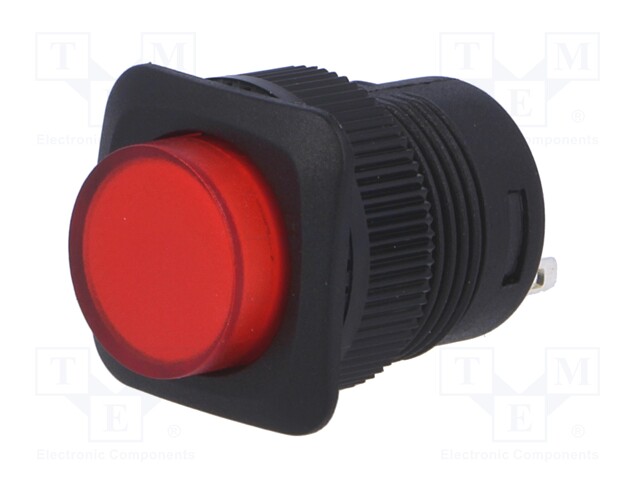

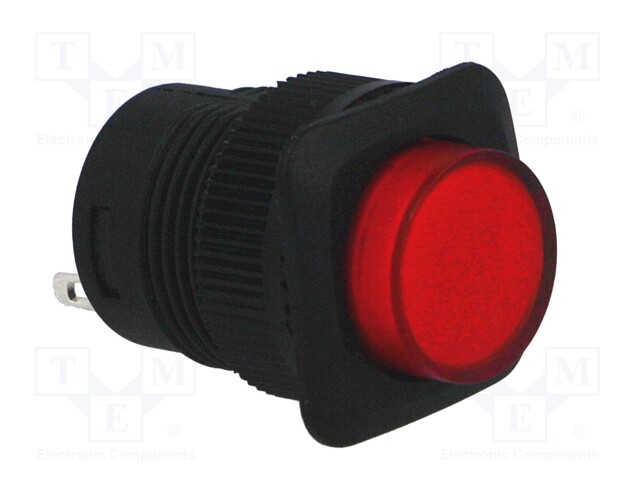

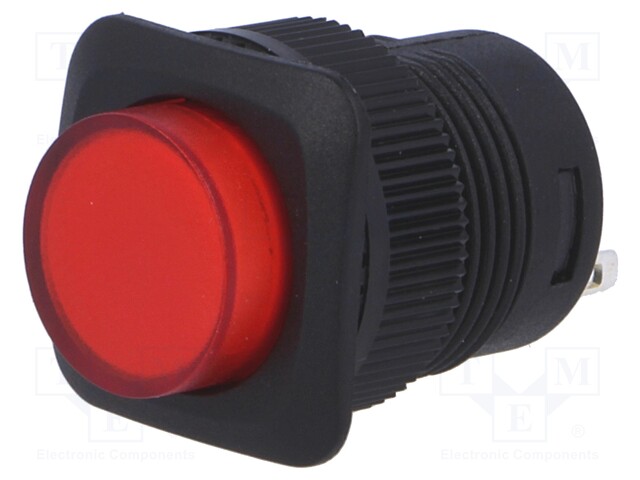

Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; red; none; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R13-508A-05-BR
    Tootja: SCI
    Tootja tootekood: R13-508A-05-BR
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body material
    • Flammability rating
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Illumination
    • Terminals plating
    • AC test voltage
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button shape

    1,82 € 1,82 € (KM-TA) 1.82 EUR

    1,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; red; none; 50mΩ

    Mounting on panel
    Operating temperature -25...70°C
    Type of switch push-button
    Number of positions 2
    Leads for soldering
    Max. contact resistance 50mΩ
    Body material polyamide
    Flammability rating UL94HB
    Mounting hole diameter Ø16mm

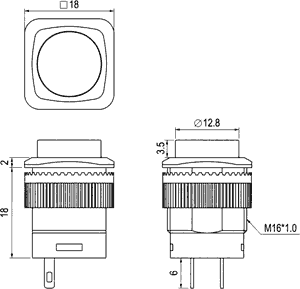

    Body dimensions Ø17.5x18mm
    Panel thickness ≤ 7mm
    Illumination none
    Terminals plating silver plated
    AC test voltage 1.5kV
    Contacts configuration SPST-NO
    AC contacts rating @R 1.5A / 250V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Actuator colour red
    Button shape prominent, round
