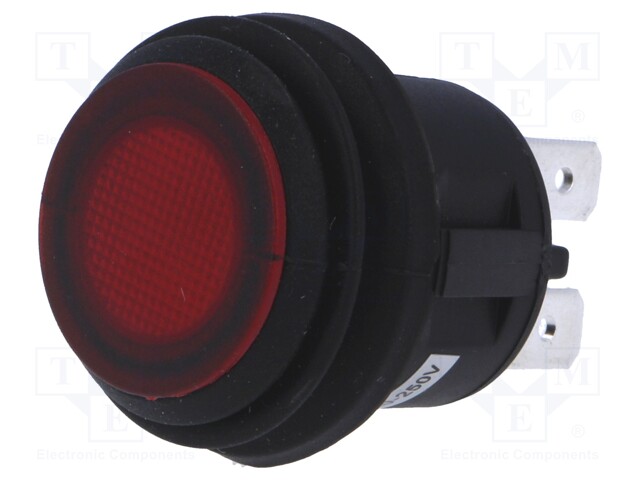

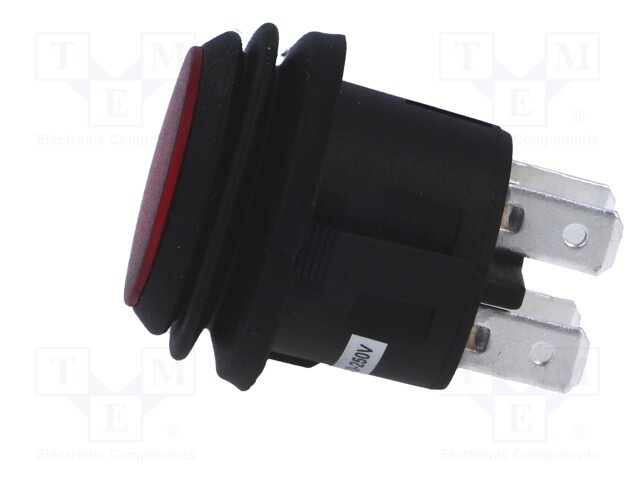

Switch: push-button; Pos: 2; DPST-NO; 6A/250VAC; red; red; IP65; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R13-527B2L-02-BR-N-2
    Tootja: SCI
    Tootja tootekood: R13-527B2L-02-BR-N-2
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body material
    • Flammability rating
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Backlight colour
    • Illumination
    • Terminals plating
    • AC test voltage
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Illumination voltage

    7,13 € 7,13 € (KM-TA) 7.13 EUR

    7,13 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; DPST-NO; 6A/250VAC; red; red; IP65; 50mΩ

    Mounting on panel
    Operating temperature -25...70°C
    IP rating IP65
    Type of switch push-button
    Number of positions 2
    Leads connectors
    Max. contact resistance 50mΩ
    Body material polyamide
    Flammability rating UL94V-2
    Mounting hole diameter Ø20.2mm
    Body dimensions Ø17.5x18mm
    Panel thickness ≤ 3mm
    Backlight colour red
    Illumination neon lamp
    Terminals plating silver plated
    AC test voltage 1.5kV
    Contacts configuration DPST-NO
    AC contacts rating @R 6A / 250V AC
    Switching method OFF-ON
    Stable positions number 2
    Actuator colour red
    Button shape round
    Illumination voltage 230V
