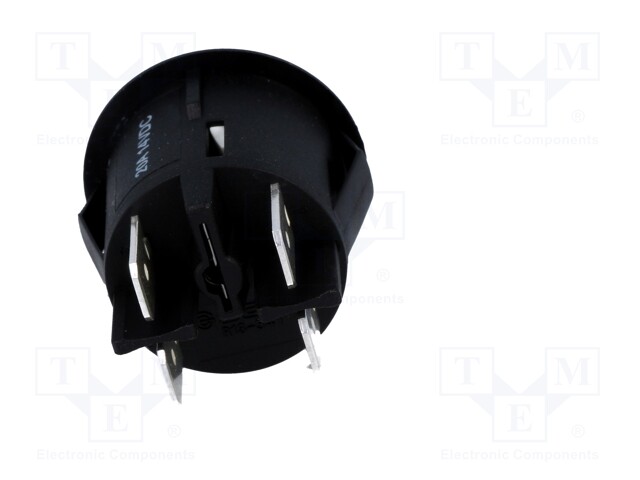

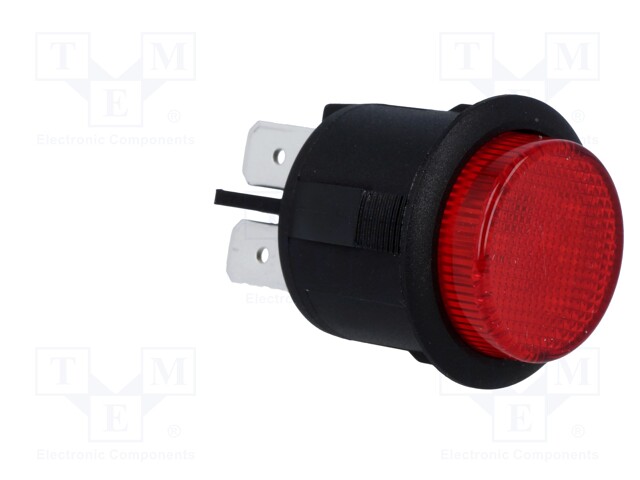

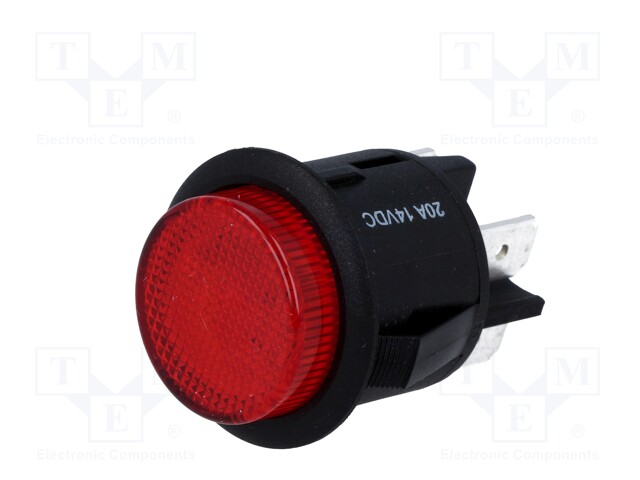

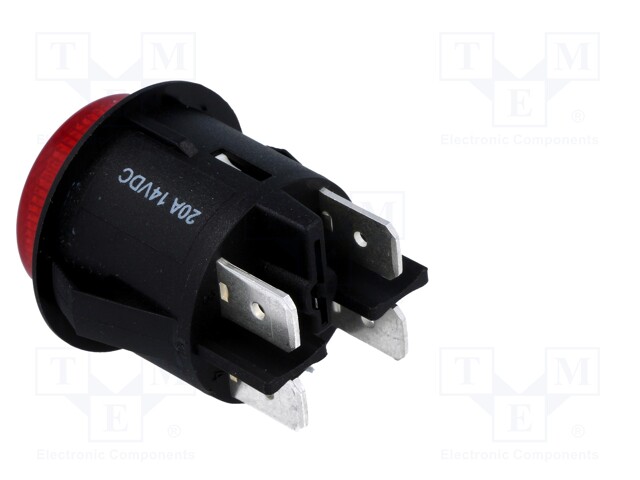

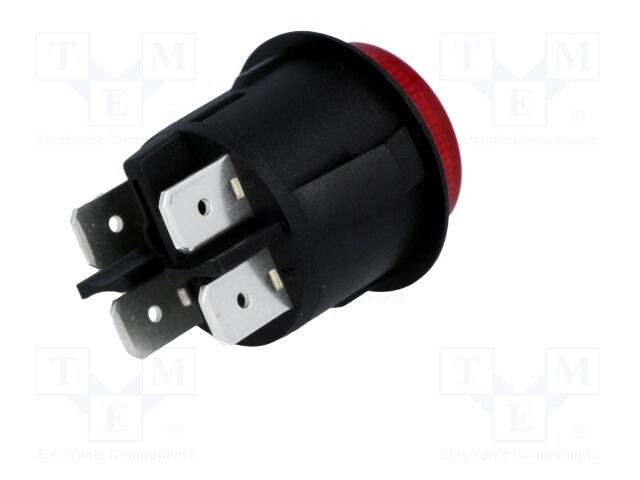

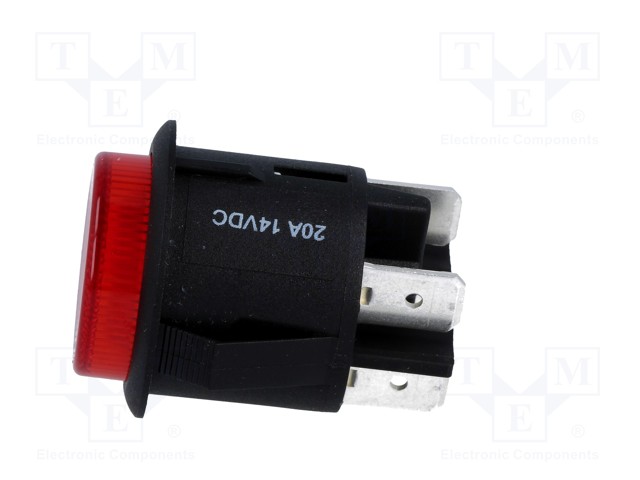

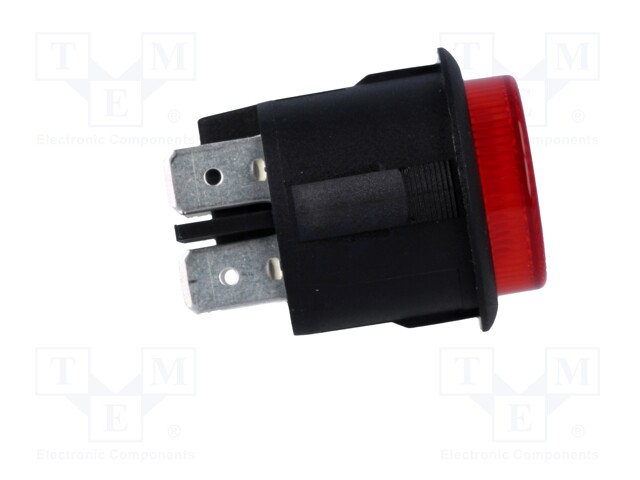

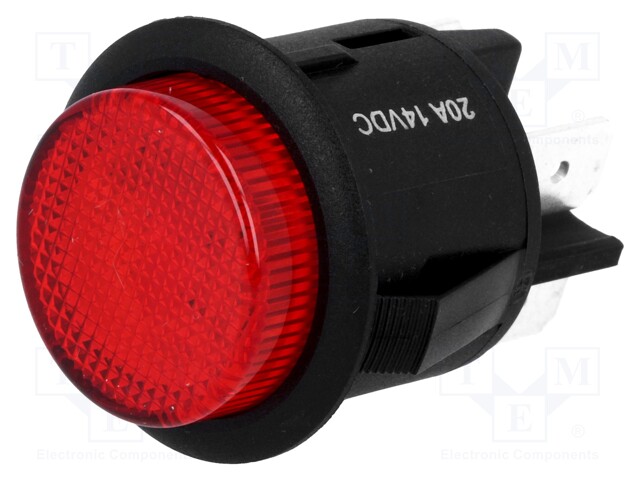

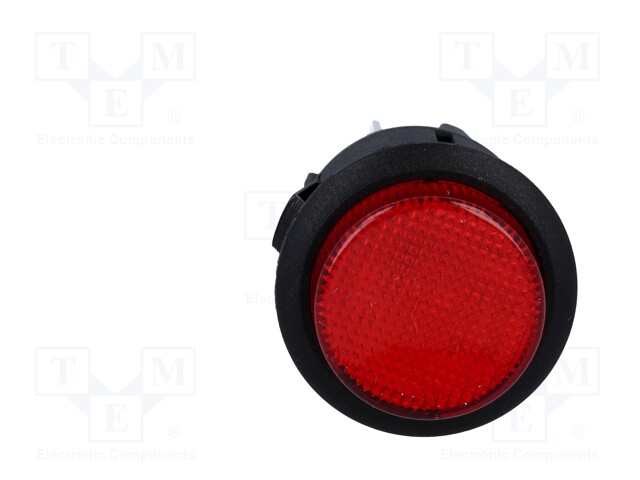

Switch: push-button; Pos: 2; DPST-NO; 20A/12VDC; red; red; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R13-541BL-01-BR-L1
    Tootja: SCI
    Tootja tootekood: R13-541BL-01-BR-L1
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body material
    • Flammability rating
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Backlight colour
    • Illumination
    • Terminals plating
    • AC test voltage
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button shape

    7,32 € 7,32 € (KM-TA) 7.32 EUR

    7,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; DPST-NO; 20A/12VDC; red; red; 50mΩ

    Mounting on panel
    Operating temperature -25...70°C
    Type of switch push-button
    Number of positions 2
    Leads connectors
    Max. contact resistance 50mΩ
    Body material polyamide
    Flammability rating UL94V-2
    Mounting hole diameter Ø25mm

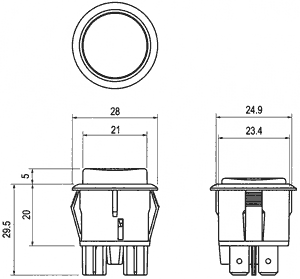

    Body dimensions Ø26x27mm
    Panel thickness ≤ 3mm
    Backlight colour red
    Illumination LED
    Terminals plating silver plated
    AC test voltage 1.5kV
    Contacts configuration DPST-NO
    DC contacts rating @R 20A / 12V DC
    Switching method OFF-ON
    Stable positions number 2
    Actuator colour red
    Button shape prominent, round
