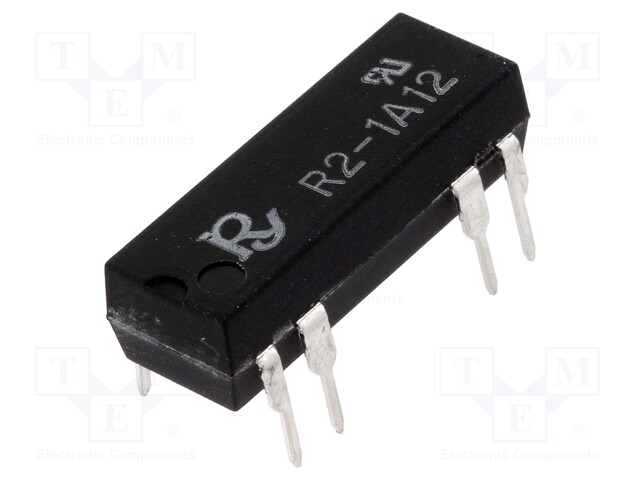

Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA; Rcoil: 1kΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R2-1A12
    Tootja: RAYEX ELECTRONICS
    Tootja tootekood: R2-1A12
    • Mounting
    • Case
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    4,61 € 4,61 € (KM-TA) 4.61 EUR

    4,61 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA; Rcoil: 1kΩ

    Mounting PCB
    Case DIP14
    Operating temperature -40...85°C
    Contact material AgCdO
    Terminal pitch 2.54mm
    Body dimensions 20x7x5.5mm
    Switched voltage ≤ 250V DC
    Switching capacity 10VA
    Coil resistance 1kΩ
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 20V DC
    Type of relay reed
    Coil voltage min. 9V DC
    Coil power consumption 144mW
    Operate time 1ms
    Release time 500µs
