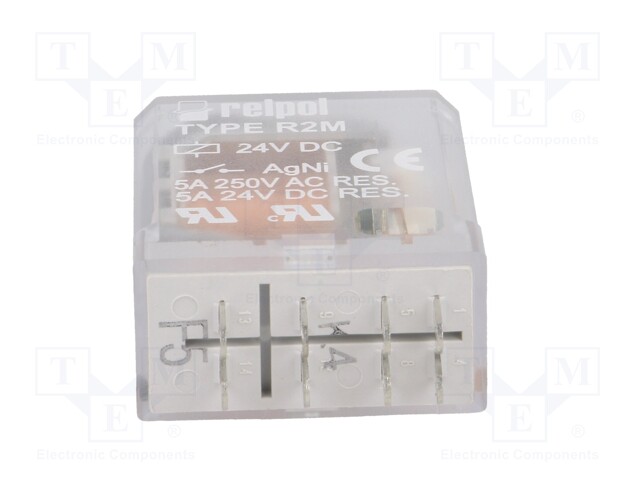

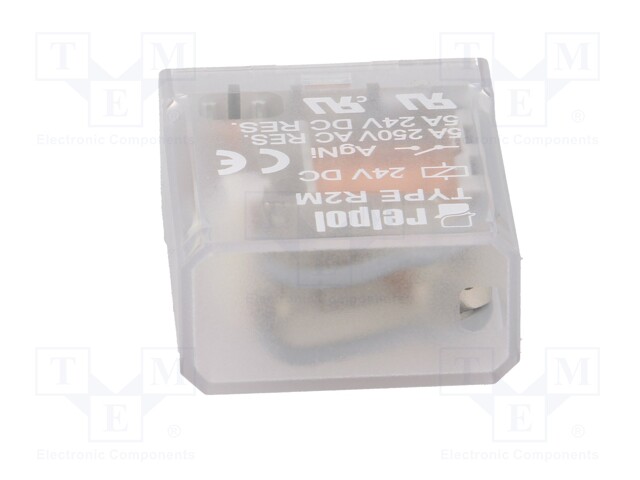

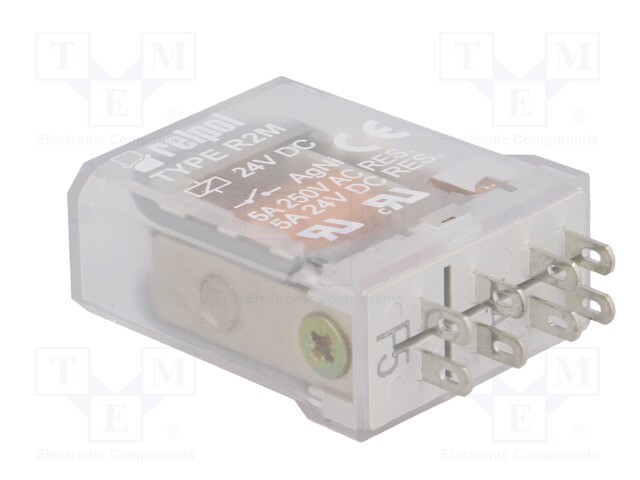

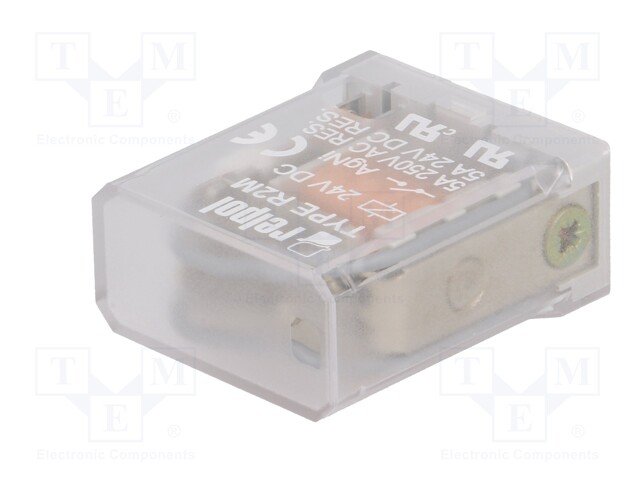

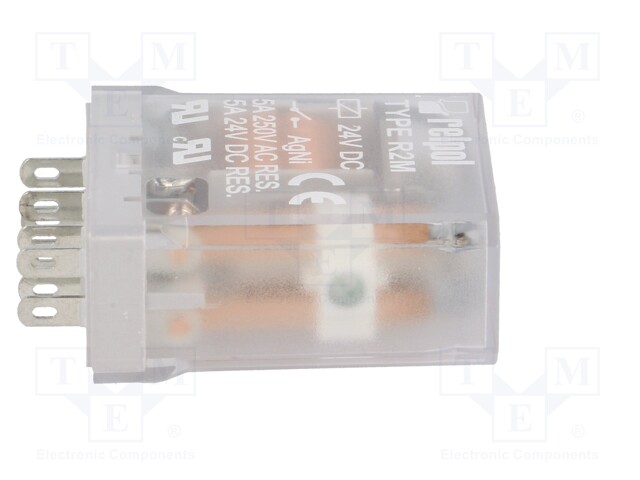

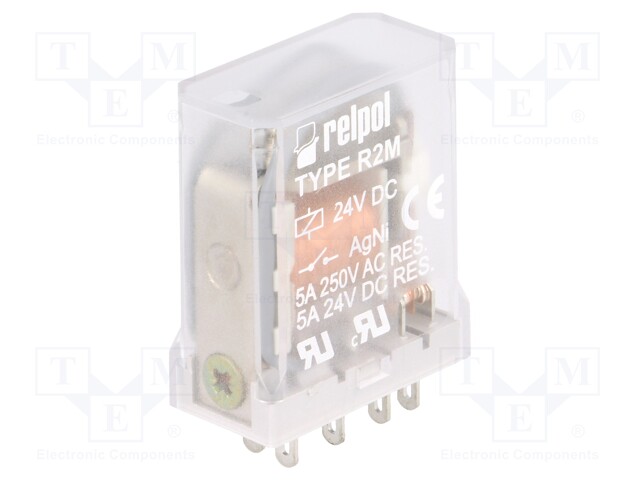

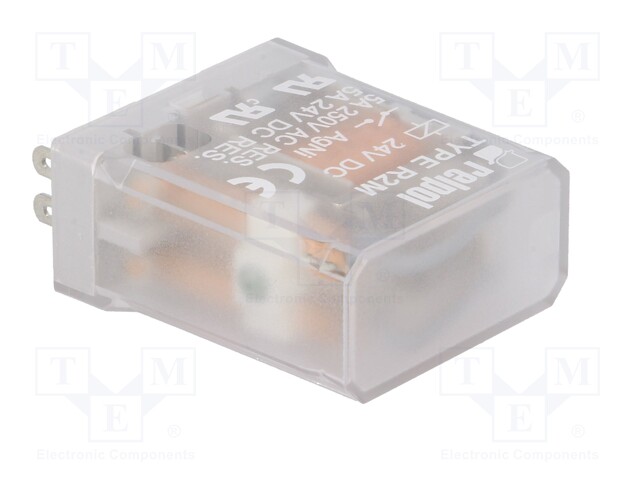

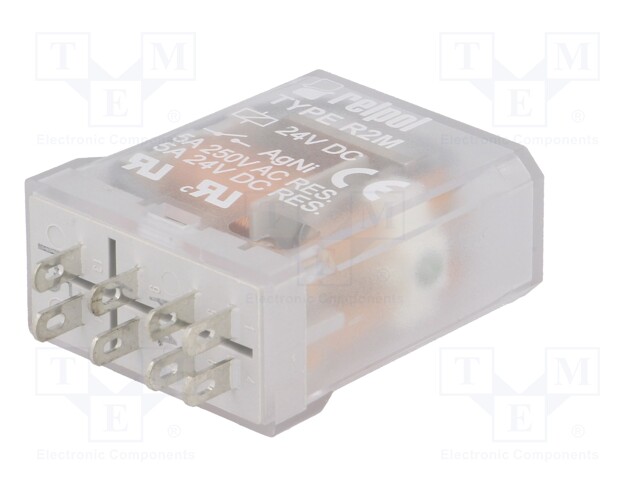

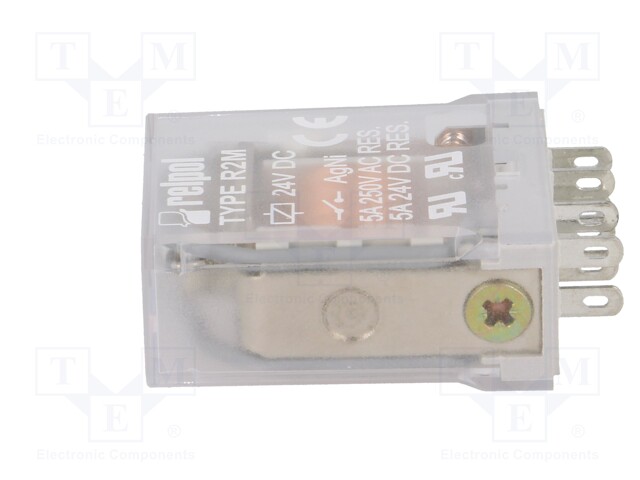

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A/250VAC; 5A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R2M-2012-23-1024
    Tootja: RELPOL
    Tootja tootekood: R2M-2012-23-1024
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    14,66 € 14,66 € (KM-TA) 14.66 EUR

    14,66 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A/250VAC; 5A/24VDC

    Mounting socket
    Operating temperature -40...55°C
    Leads connectors
    Body dimensions 27.5x14x33mm
    Mechanical durability 1000000cycles
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Electrical life 20000000cycles
    Switching capacity 1.25kVA
    Coil resistance 750Ω
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 5A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 0.9W
    Operate time 8ms
    Release time 7ms
    OEM number 617171
