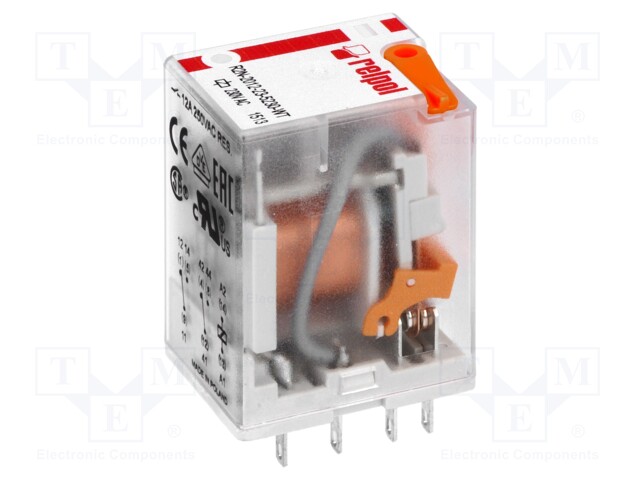

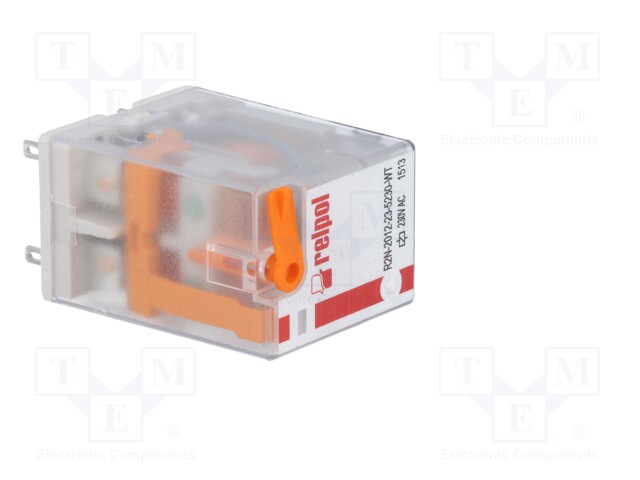

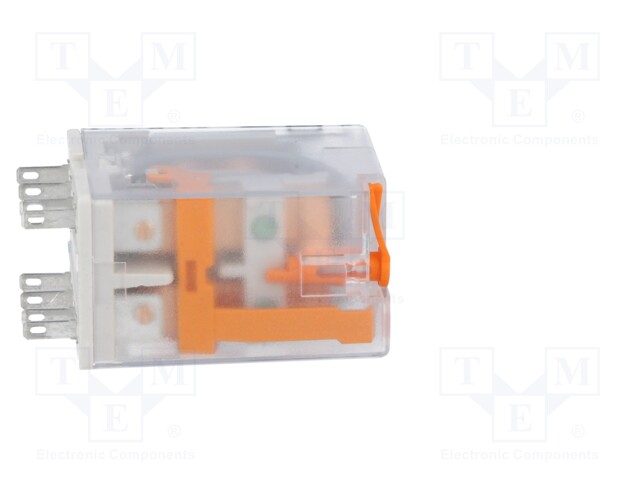

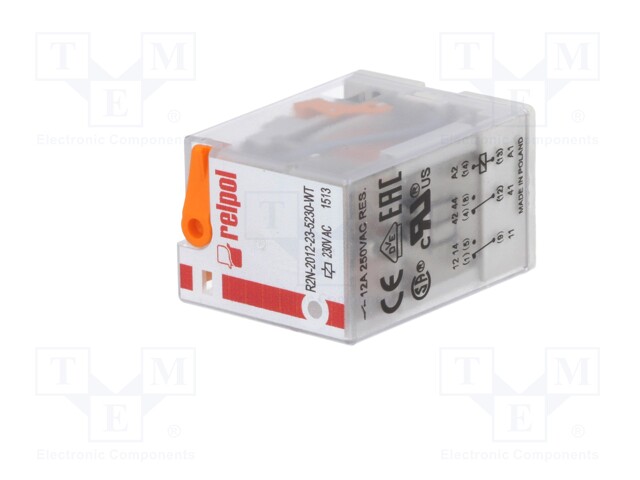

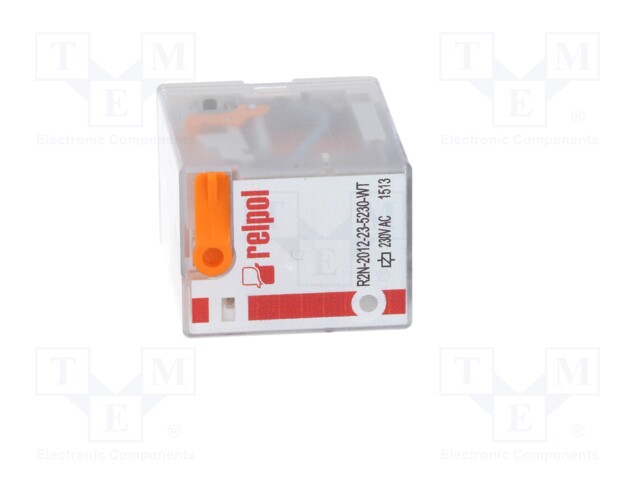

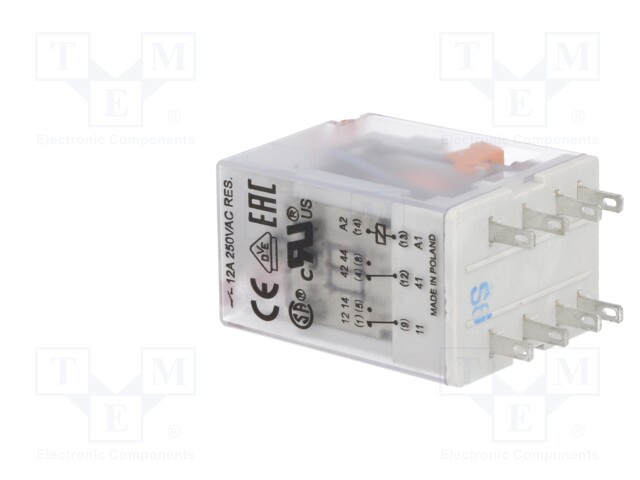

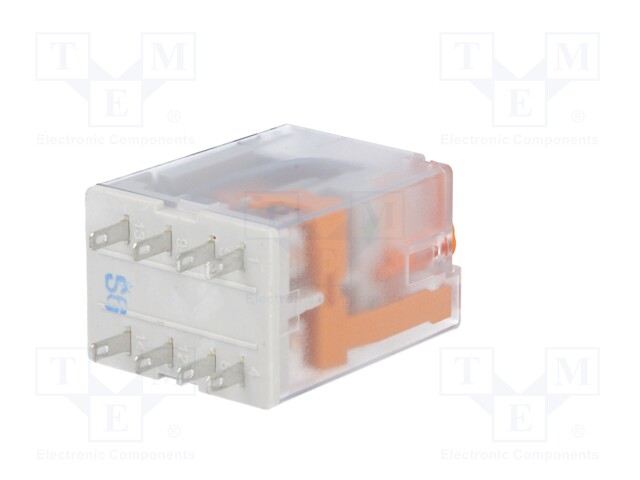

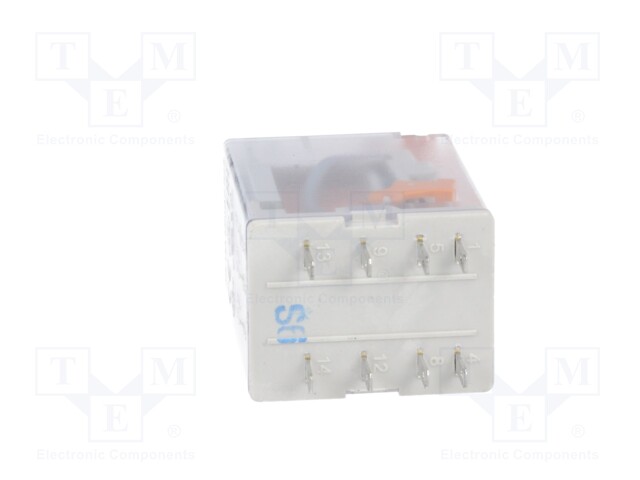

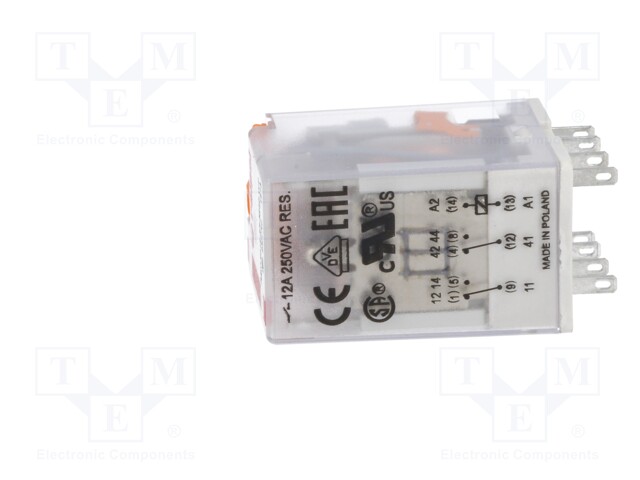

Relay: electromagnetic; DPDT; Ucoil: 230VAC; 12A/250VAC; 12A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R2N-2012-23-5230-WT
    Tootja: RELPOL
    Tootja tootekood: R2N-2012-23-5230-WT
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Optional equipment
    • Optional equipment
    • OEM number

    13,04 € 13,04 € (KM-TA) 13.040000000000001 EUR

    13,04 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 230VAC; 12A/250VAC; 12A/24VDC

    Mounting socket
    Operating temperature -40...55°C
    IP rating IP40
    Leads connectors
    Number of pins 8
    Contact material AgNi
    Body dimensions 27.5x21.2x35.6mm
    Switched voltage ≤ 250V DC, ≤ 250V AC
    Coil resistance 16.1kΩ
    Contacts configuration DPDT
    DC contacts rating @R 12A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Contact current max. 24A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.6VA
    Operate time 10ms
    Optional equipment mechanical indicator, test button with blocking function
    OEM number 860400
