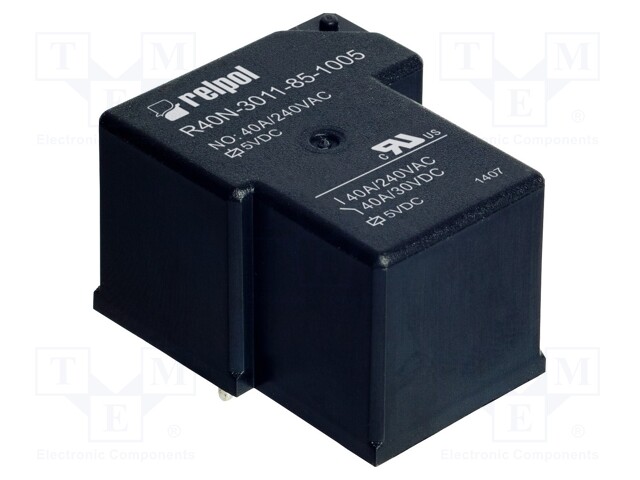

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 40A; Series: R40N; 0.9W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R40N-3011-85-1005
    Tootja: RELPOL
    Tootja tootekood: R40N-3011-85-1005
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    7,40 € 7,40 € (KM-TA) 7.4 EUR

    7,40 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 5VDC; 40A; Series: R40N; 0.9W

    Mounting PCB
    Operating temperature -55...100°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Body dimensions 32.5x27.6x20.5mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 110V DC, ≤ 300V AC
    Electrical life 1000000cycles
    Coil resistance 28Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 40A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 40A / 240V AC
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Operate time 15ms
    Release time 10ms
    OEM number 2614813
