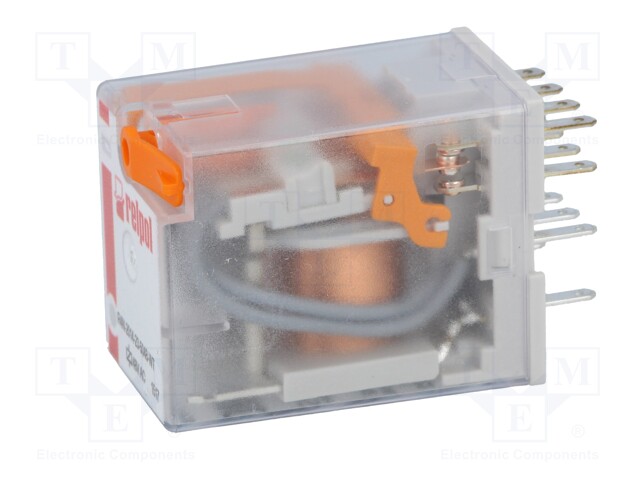

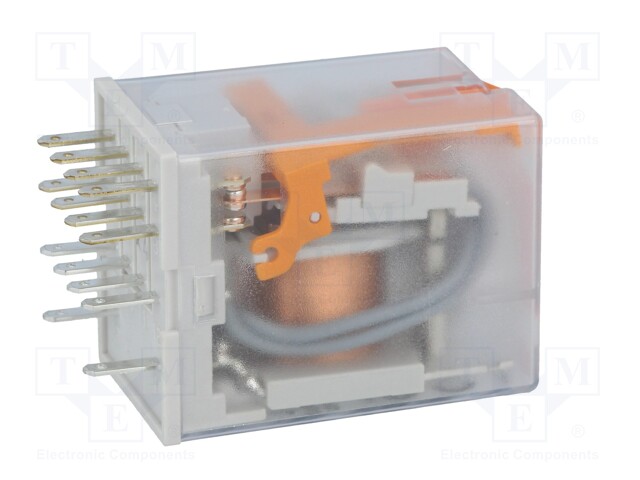

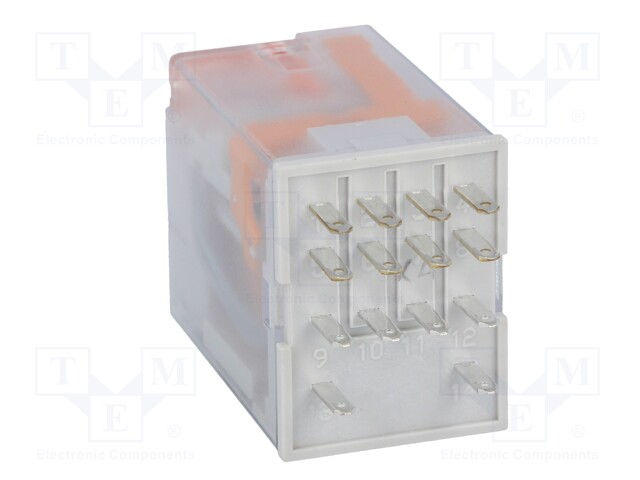

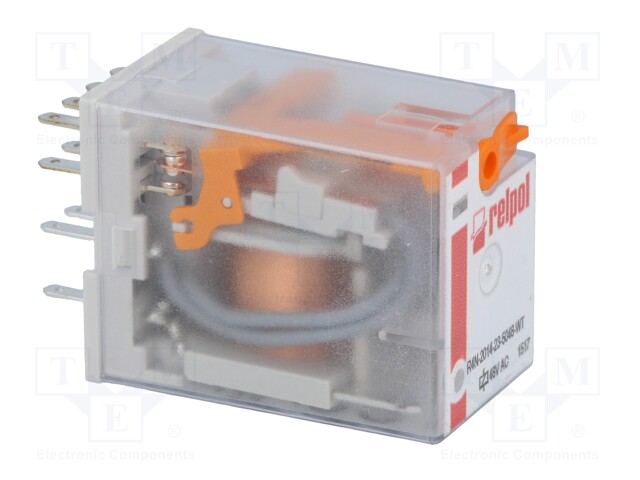

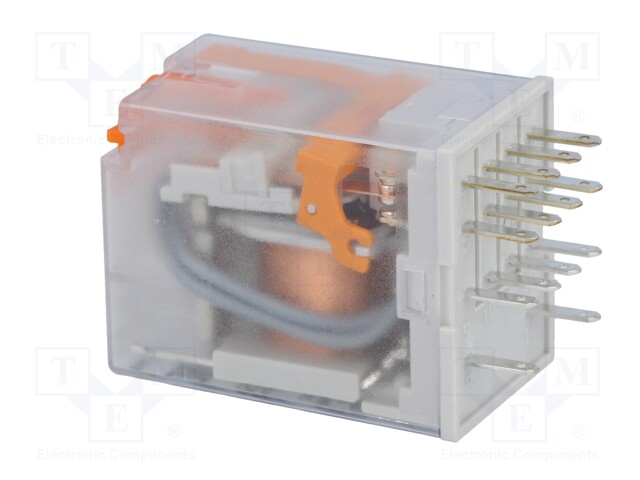

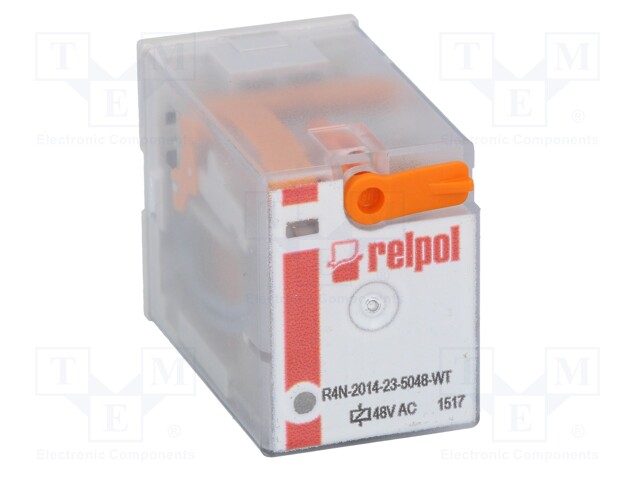

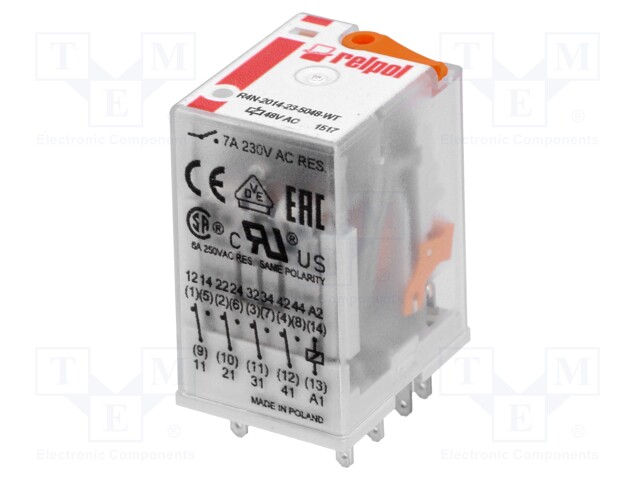

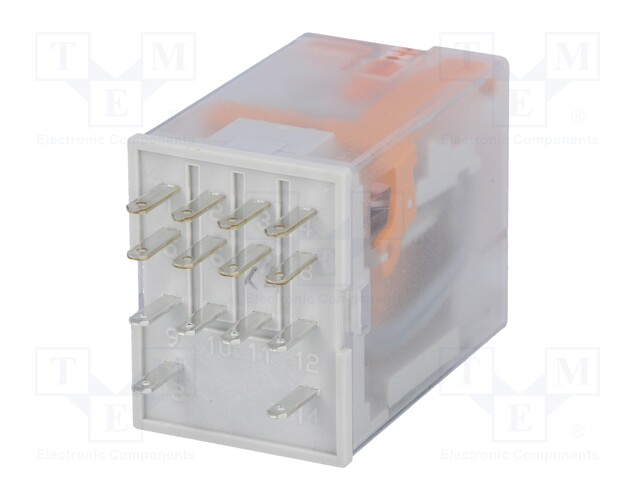

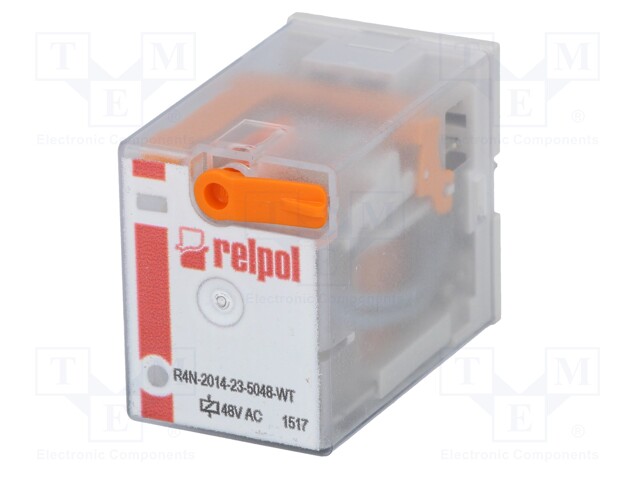

Relay: electromagnetic; 4PDT; Ucoil: 48VAC; 6A/250VAC; 6A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R4N-2014-23-5048-WT
    Tootja: RELPOL
    Tootja tootekood: R4N-2014-23-5048-WT
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Optional equipment
    • Optional equipment
    • OEM number

    18,26 € 18,26 € (KM-TA) 18.26 EUR

    18,26 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 4PDT; Ucoil: 48VAC; 6A/250VAC; 6A/24VDC

    Mounting socket
    Operating temperature -40...55°C
    IP rating IP40
    Leads connectors
    Number of pins 14
    Contact material AgNi
    Body dimensions 27.5x21.2x35.6mm
    Switched voltage ≤ 250V AC, ≤ 250V DC
    Max surge current 12A
    Coil resistance 640Ω
    Contacts configuration 4PDT
    DC contacts rating @R 6A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.6VA
    Optional equipment mechanical indicator, test button with blocking function
    OEM number 860629
