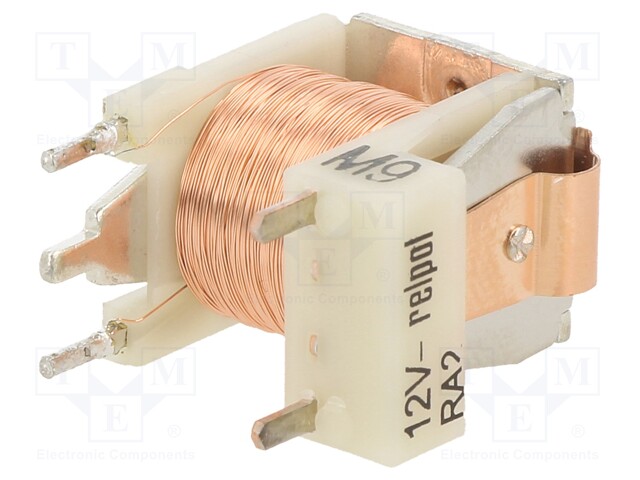

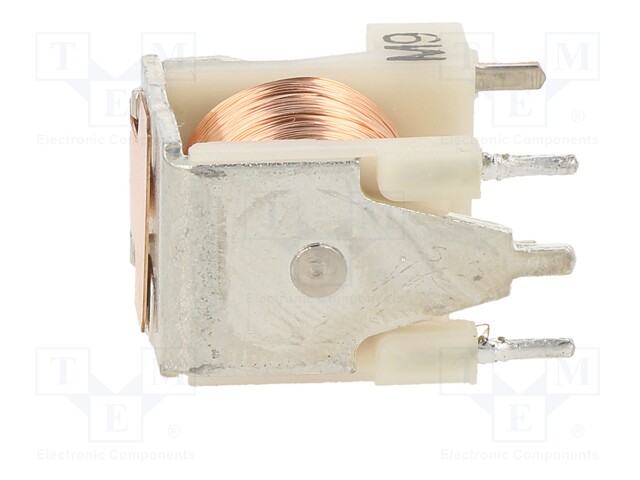

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 110A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RA2-3082-15-1012
    Tootja: RELPOL
    Tootja tootekood: RA2-3082-15-1012
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 110A; automotive

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgSnO<sub>2</sub>

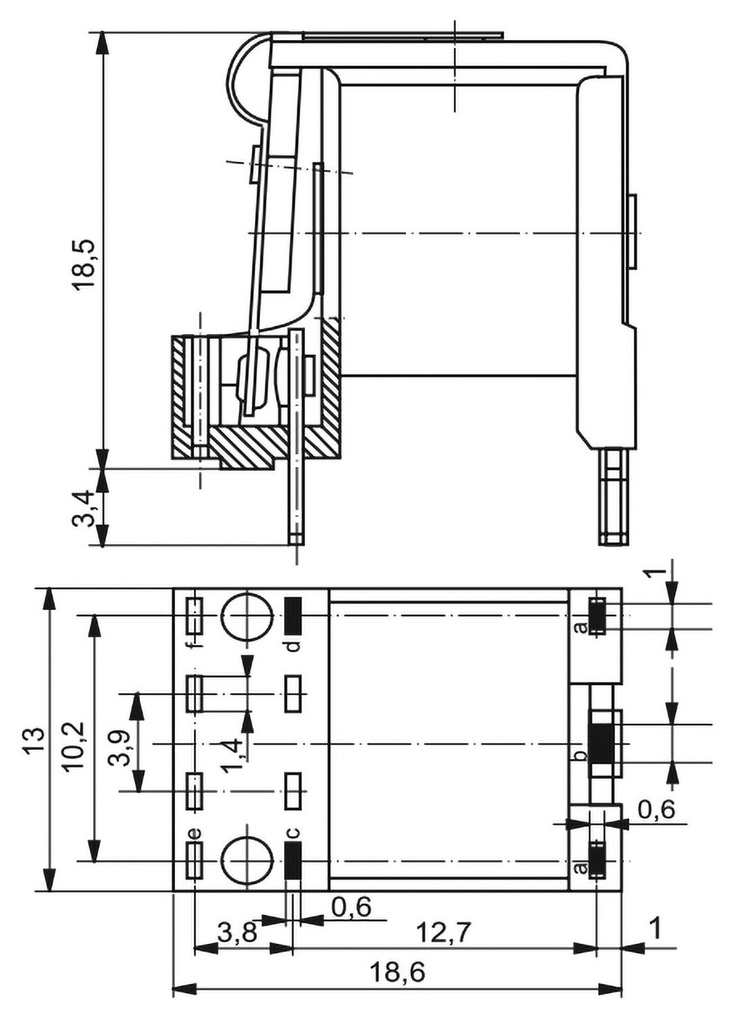

    Body dimensions 18.6x13x18.5mm
    Switched voltage ≤ 60V DC
    Coil resistance 100Ω
    Rated coil voltage 12V DC

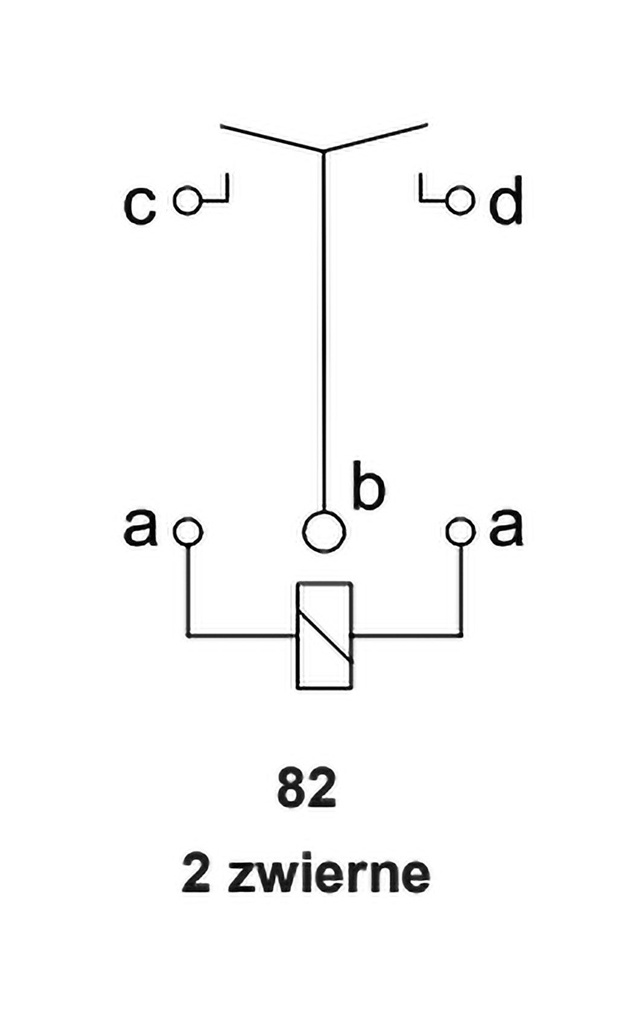

    Contacts configuration DPST-NO
    DC contacts rating @R 12.5A / 14V DC
    Contact resistance 3mΩ
    Contact current max. 110A
    Relay variant automotive
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 1.44W
    Operate time 10ms
    Release time 3ms
