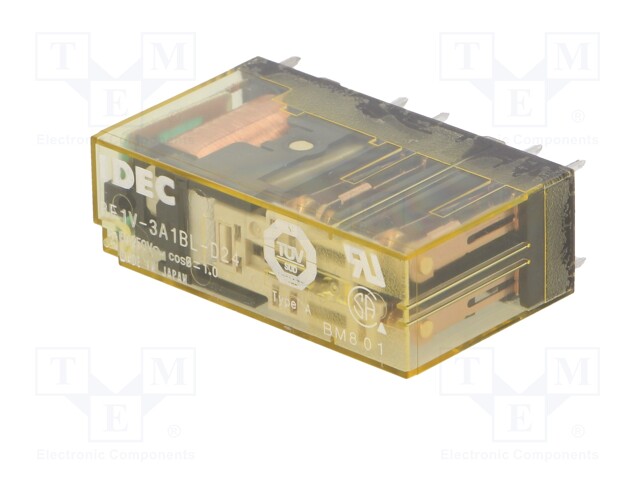

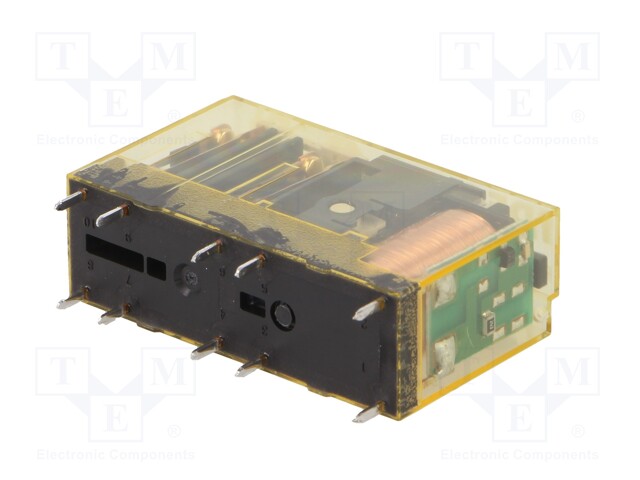

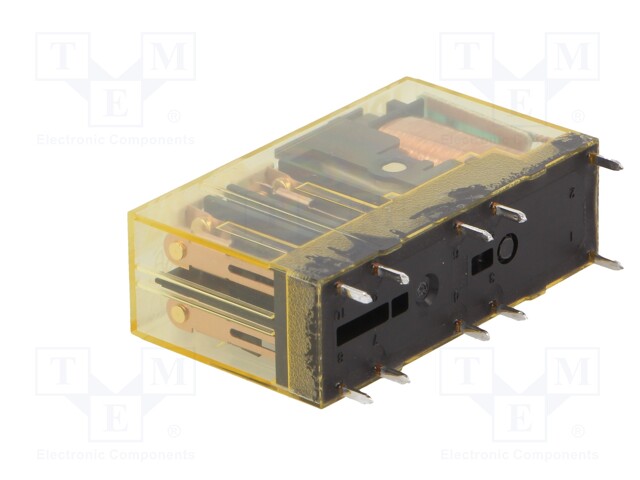

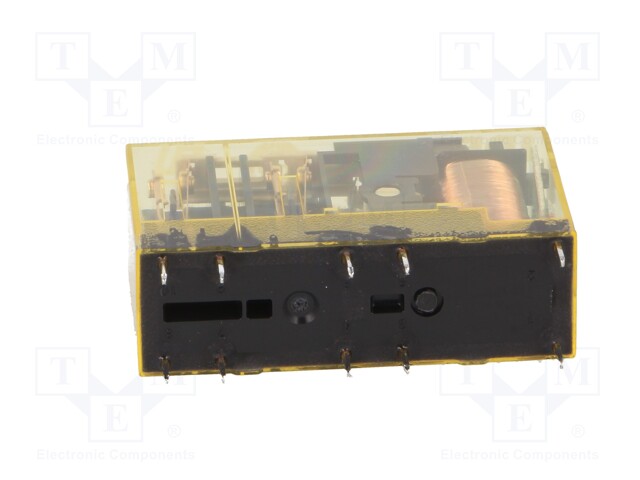

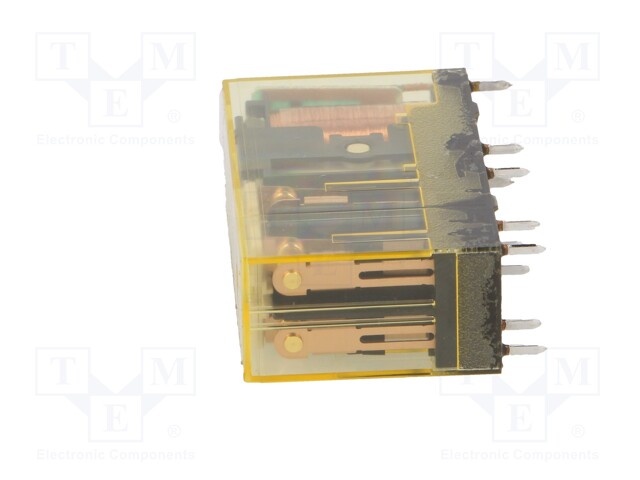

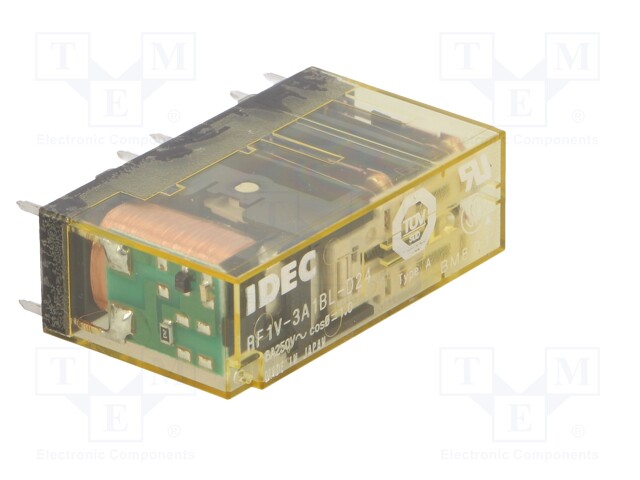

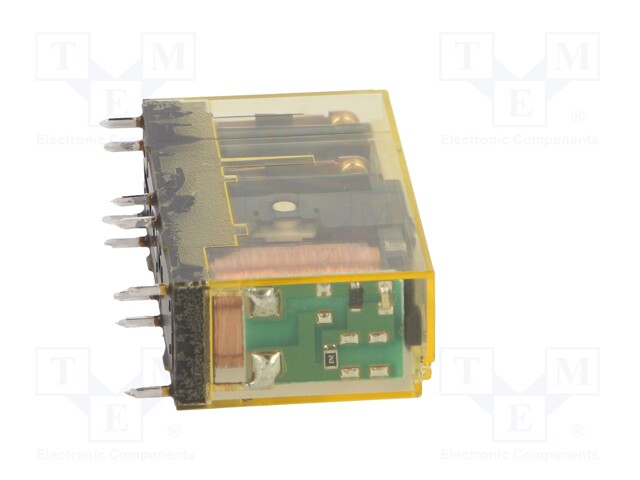

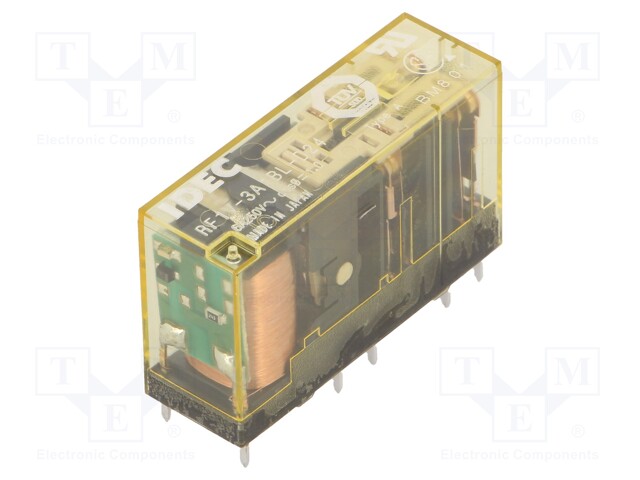

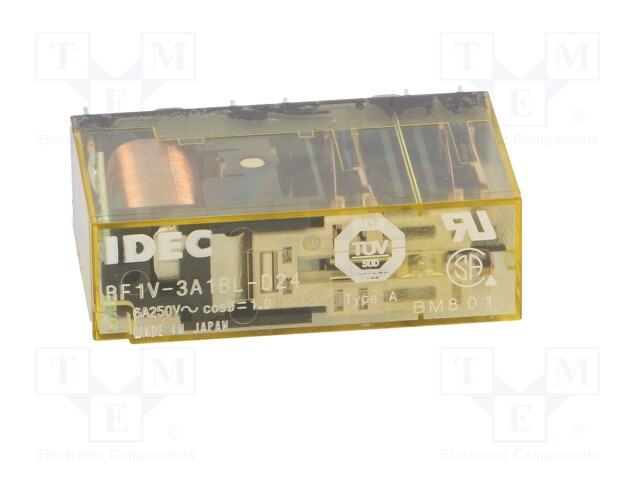

Relay: electromagnetic; NC + NO x3; Ucoil: 24VDC; 6A/250VAC; 20g

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RF1V-3A1BL-D24
    Tootja: IDEC
    Tootja tootekood: RF1V-3A1BL-D24
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current
    • Optional equipment

    22,48 € 22,48 € (KM-TA) 22.48 EUR

    22,48 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; NC + NO x3; Ucoil: 24VDC; 6A/250VAC; 20g

    Mounting socket
    Operating temperature -40...85°C
    Number of pins 8
    Contact material AgSnO<sub>2</sub>

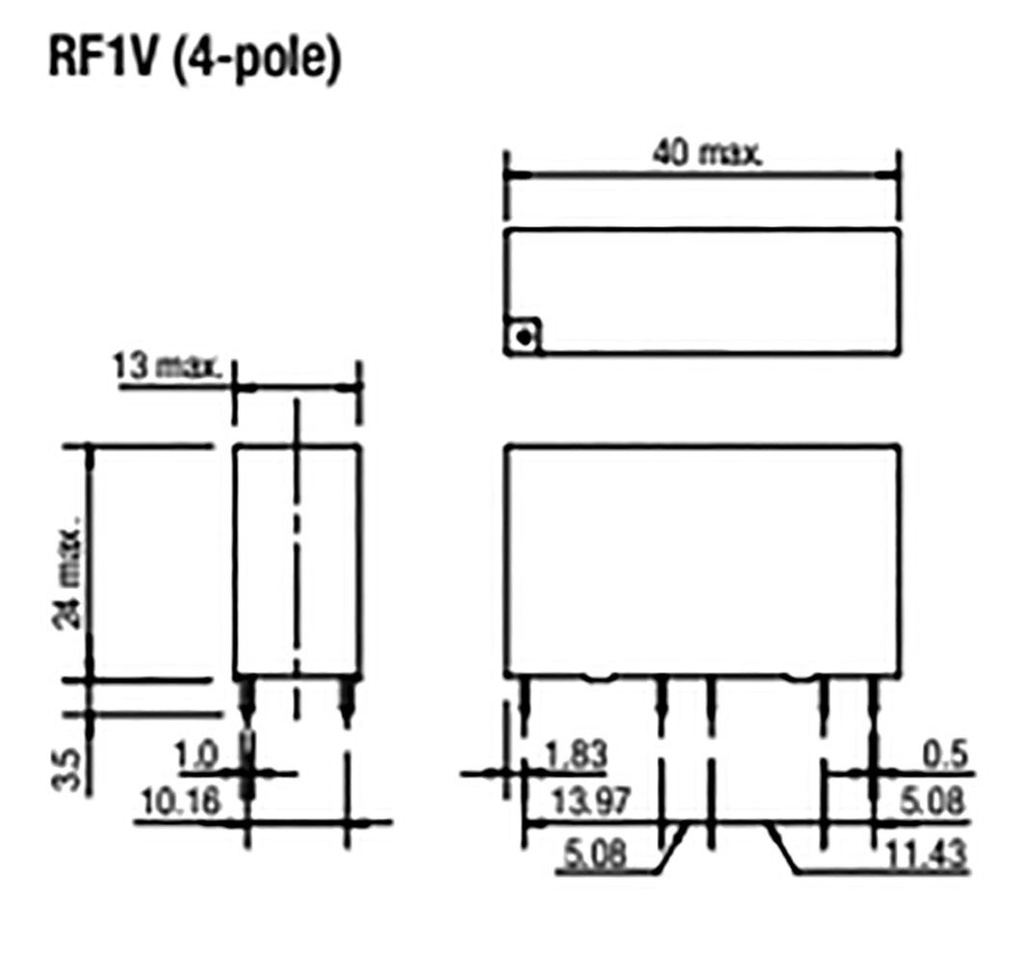

    Body dimensions 40x13x24mm
    Switched voltage ≤ 250V AC, ≤ 30V DC
    Rated voltage 250V AC
    Coil resistance 1.6Ω
    Rated coil voltage 24V DC

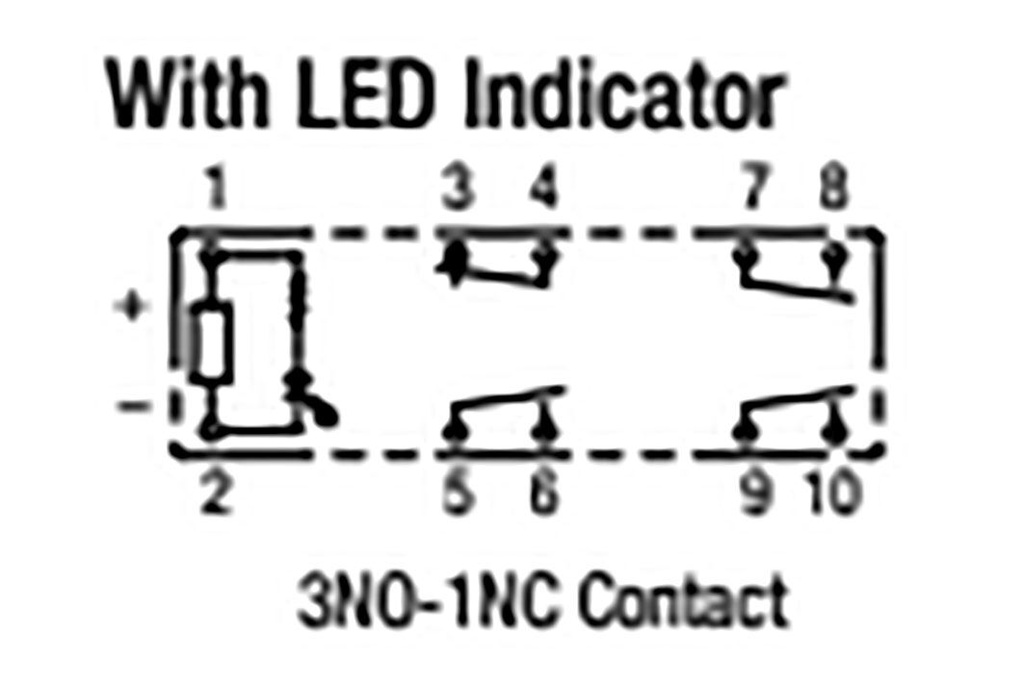

    Contacts configuration NC + NO x3
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant industrial
    Type of relay electromagnetic
    Coil current 15mA
    Optional equipment LED indicator
