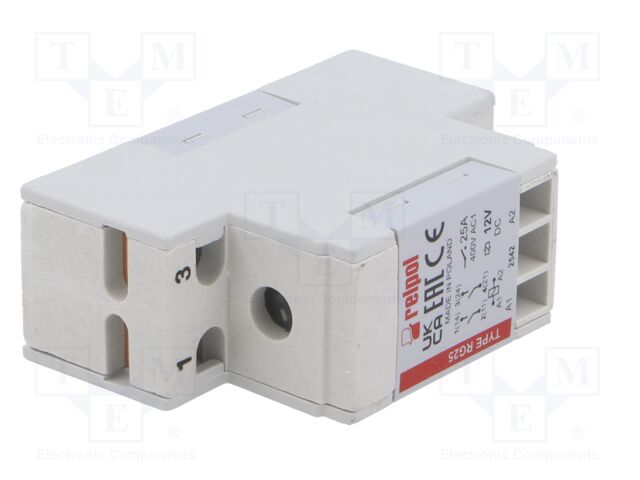

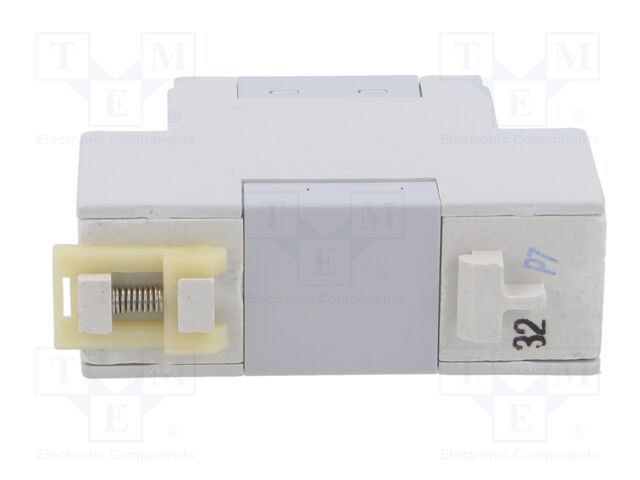

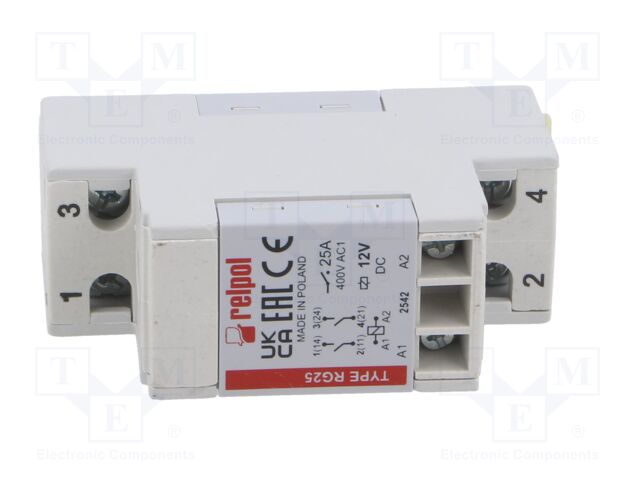

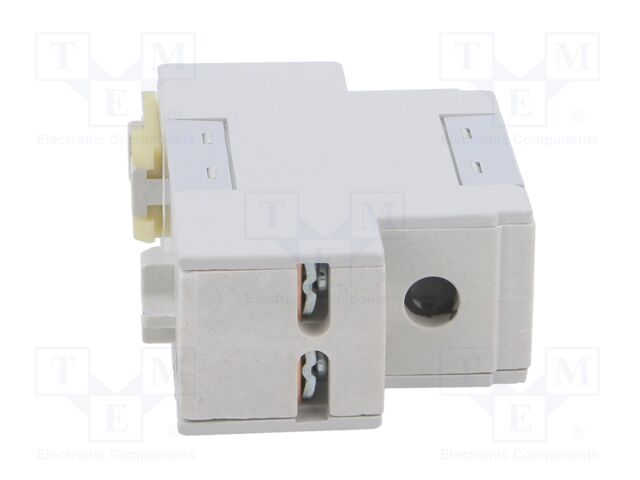

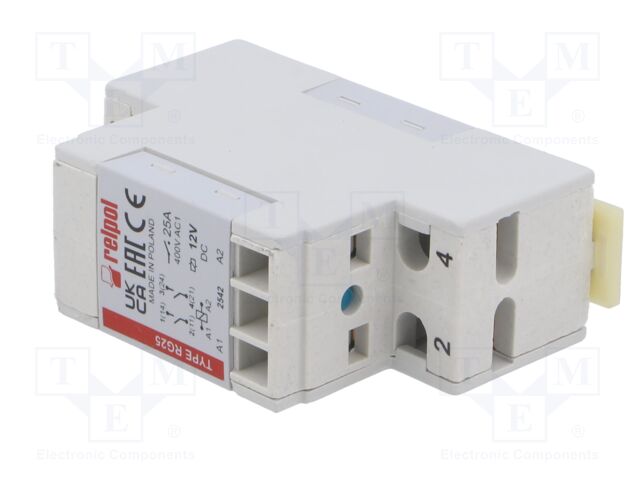

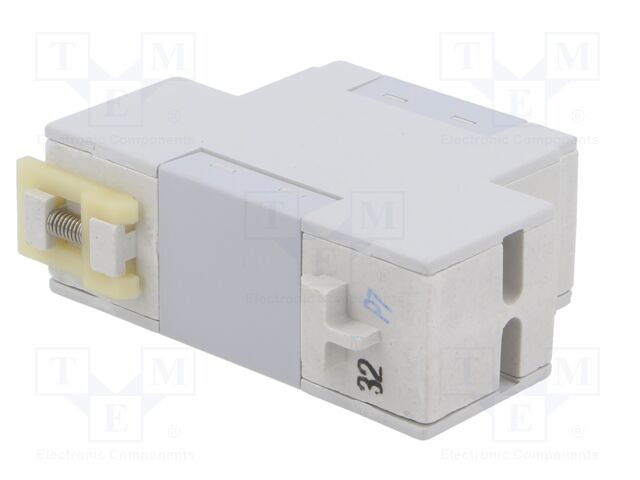

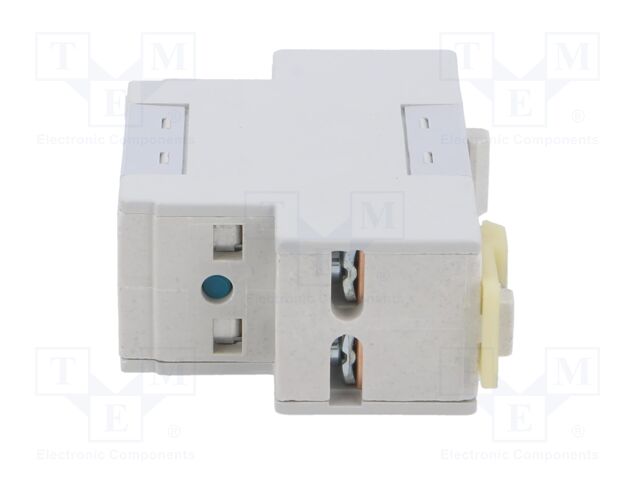

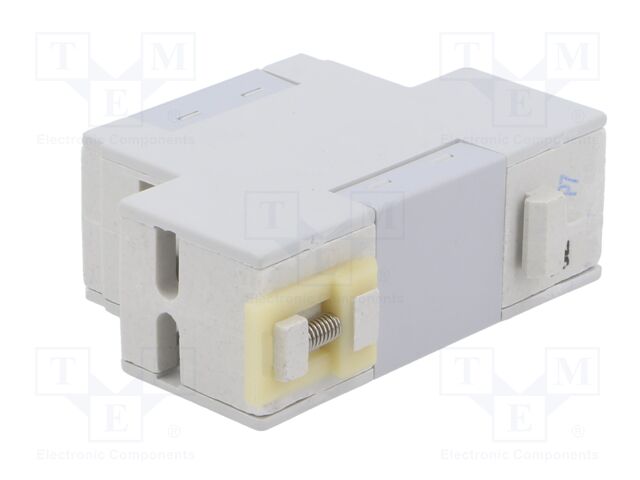

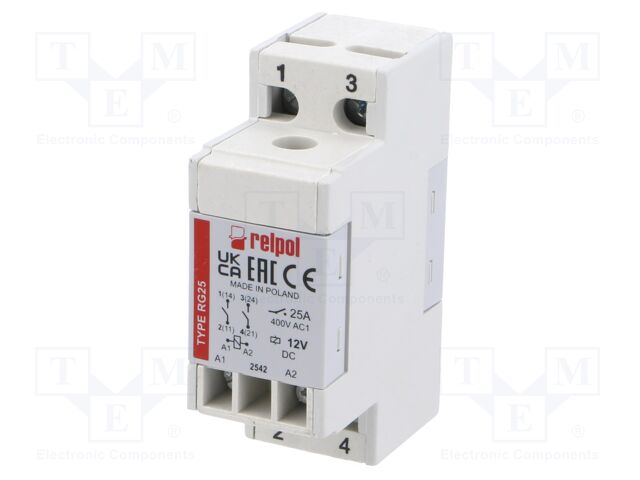

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 25A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RG25-3022-28-1012
    Tootja: RELPOL
    Tootja tootekood: RG25-3022-28-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Current rating
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 25A

    Mounting for DIN rail mounting
    Operating temperature -25...85°C
    IP rating IP20
    Contact material AgSnO<sub>2</sub>
    Body dimensions 26x53.7x75.5mm
    Current rating 25A
    Switched voltage ≤ 440V AC
    Coil resistance 85Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 25A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 25A / 400V AC
    Contact current max. 25A
    Relay variant industrial
    Coil voltage max. 13.2V DC
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 1.7W
    Operate time 20ms
    Release time 20ms
