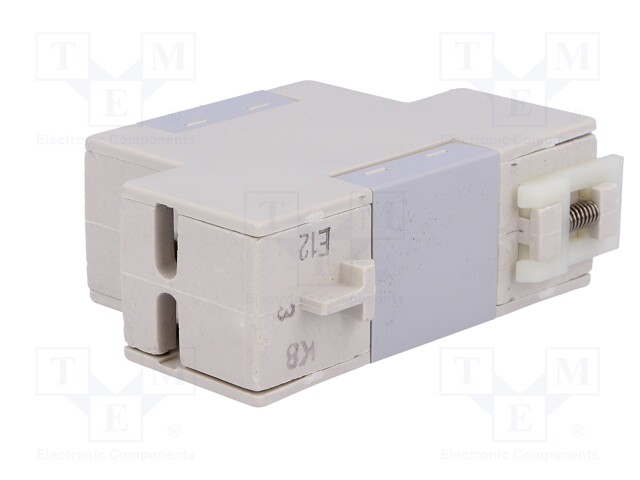

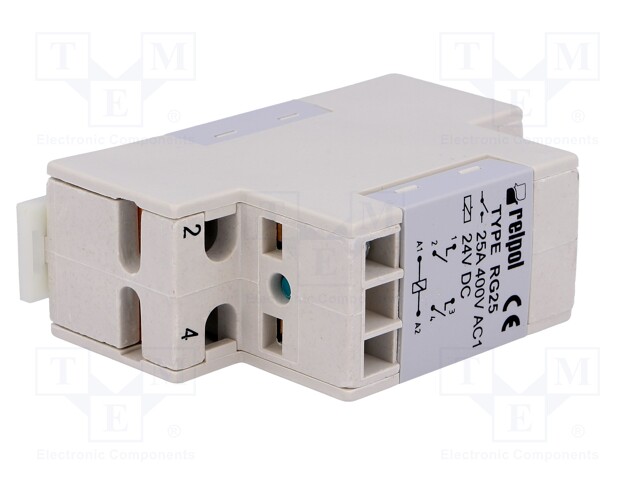

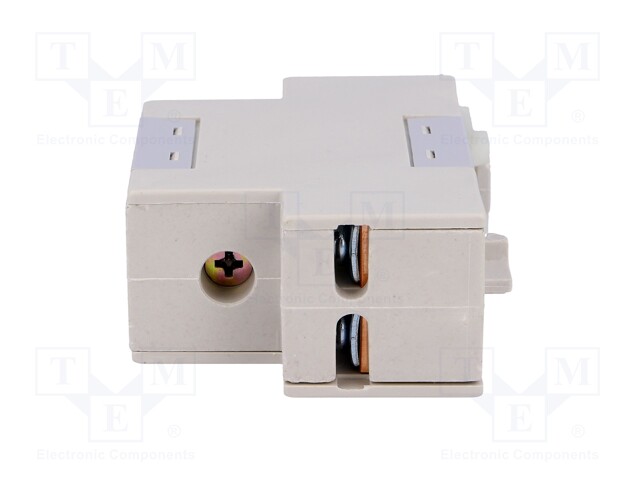

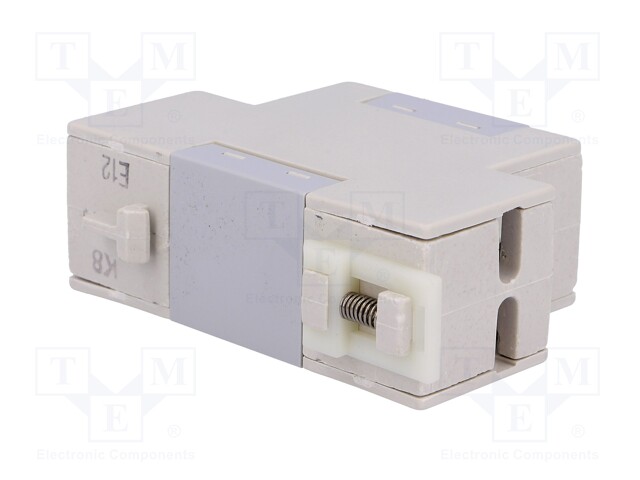

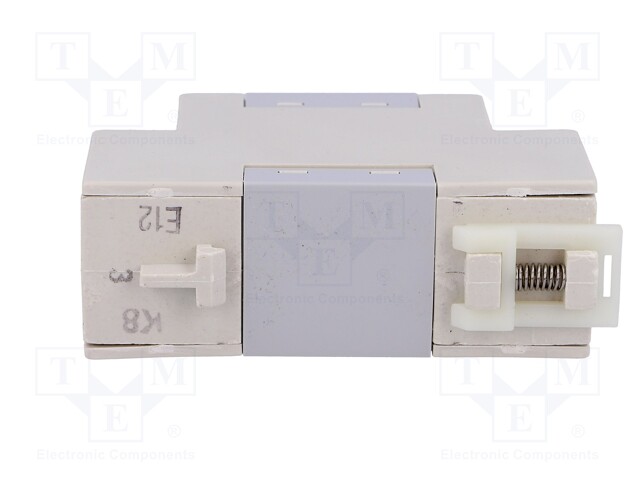

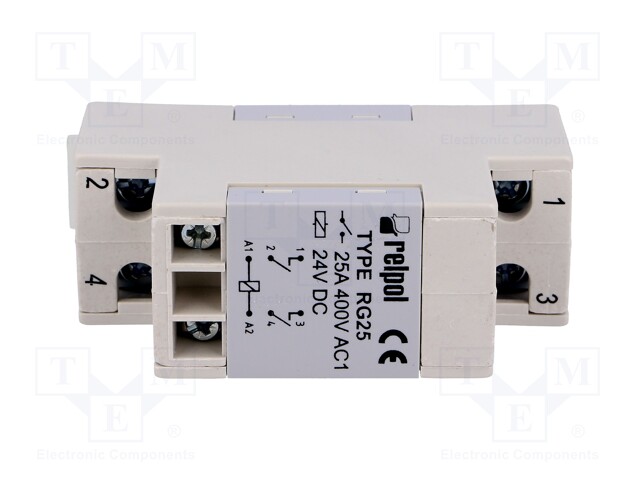

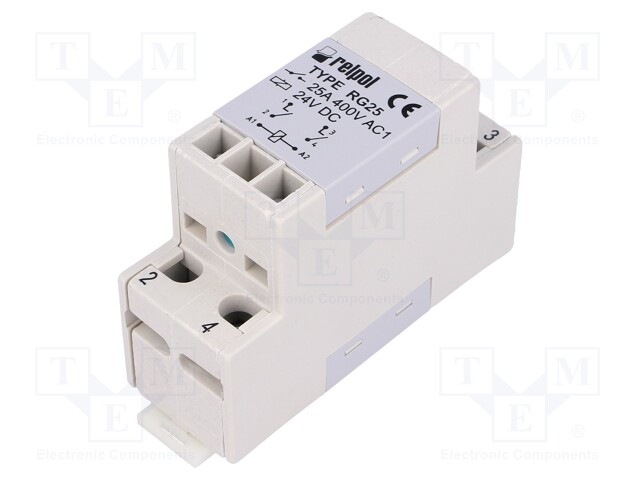

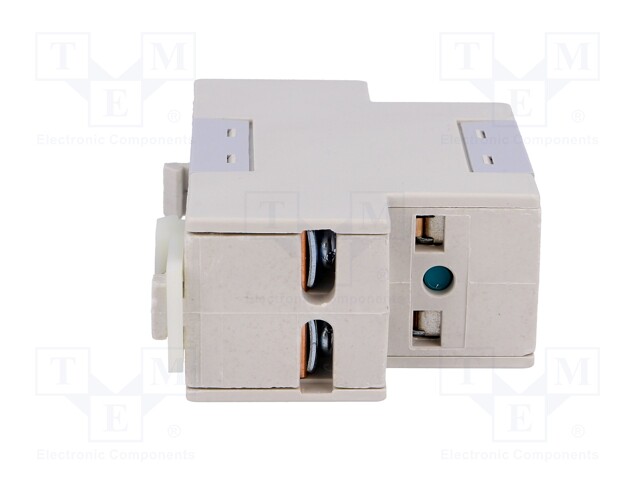

Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 25A/400VAC; 1.7W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RG25-3022-28-1024
    Tootja: RELPOL
    Tootja tootekood: RG25-3022-28-1024
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    20,40 € 20,40 € (KM-TA) 20.400000000000002 EUR

    20,40 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 25A/400VAC; 1.7W

    Mounting for DIN rail mounting
    Operating temperature -25...85°C
    Leads screw terminals
    Contact material AgCdO
    Body dimensions 26x53.7x75.5mm
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Max surge current 40A
    Coil resistance 340Ω
    Rated coil voltage 24V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 25A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 25A / 400V AC
    Contact current max. 25A
    Relay variant industrial
    Coil voltage max. 26.4V DC
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 1.7W
    Operate time 20ms
    Release time 20ms
    OEM number 862724
