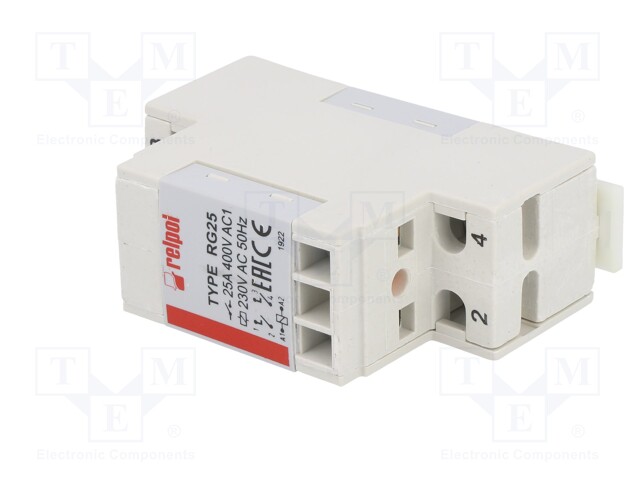

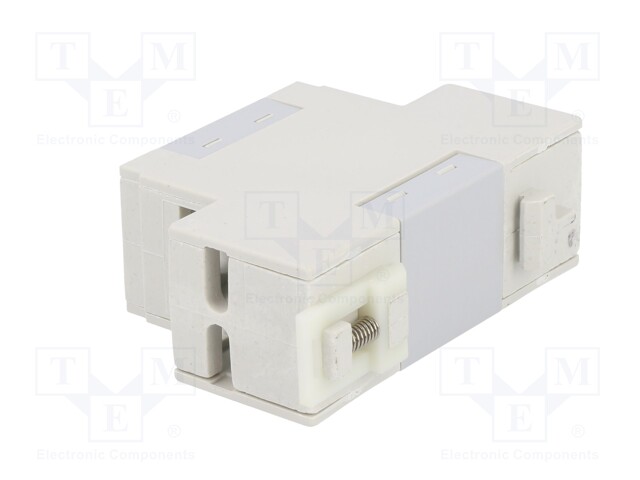

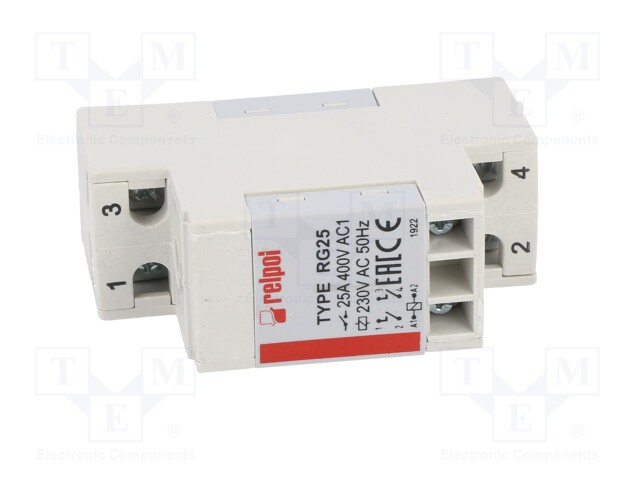

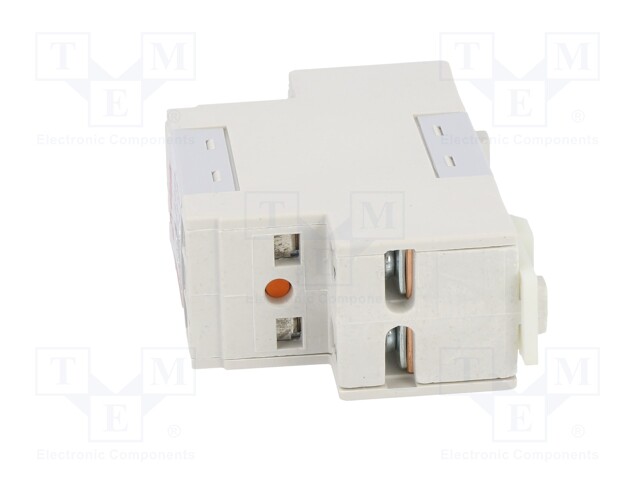

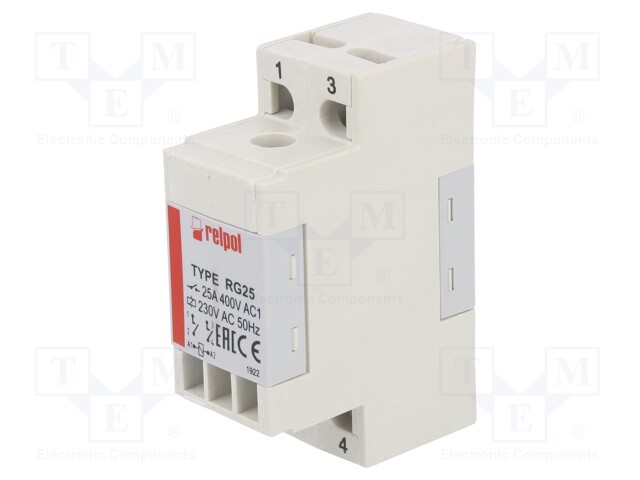

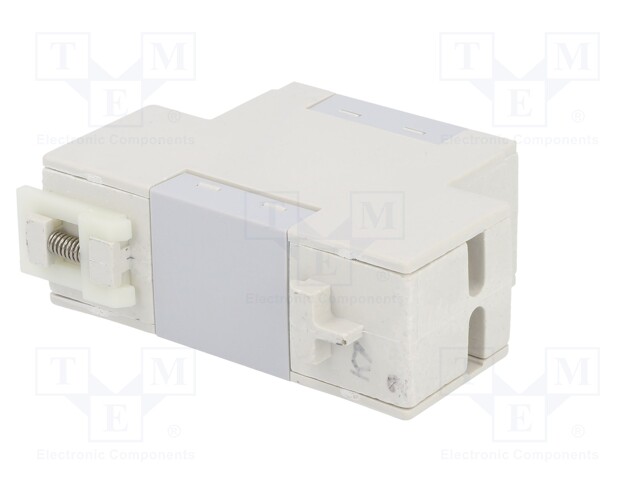

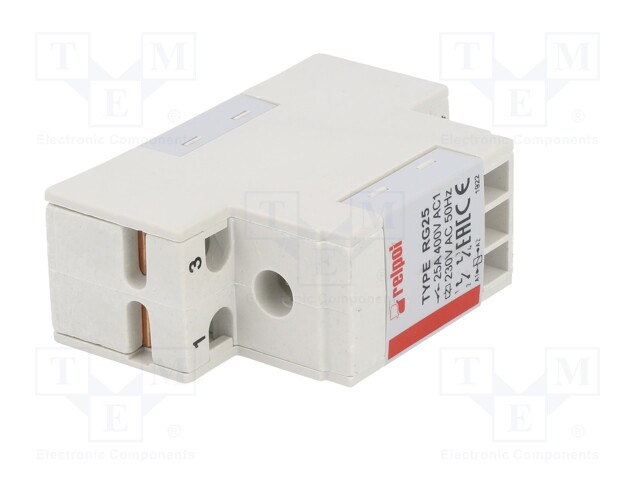

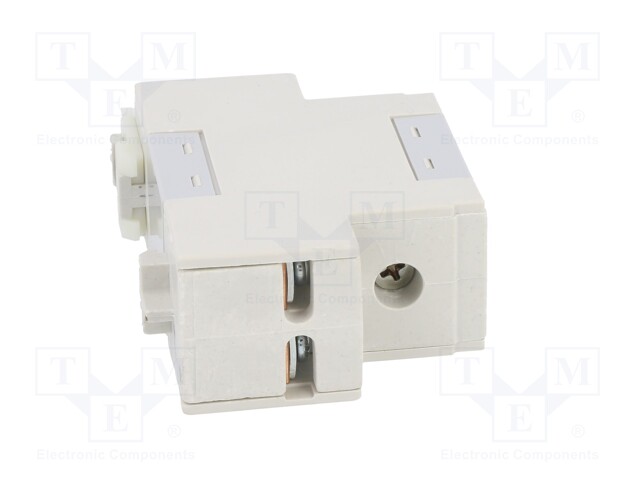

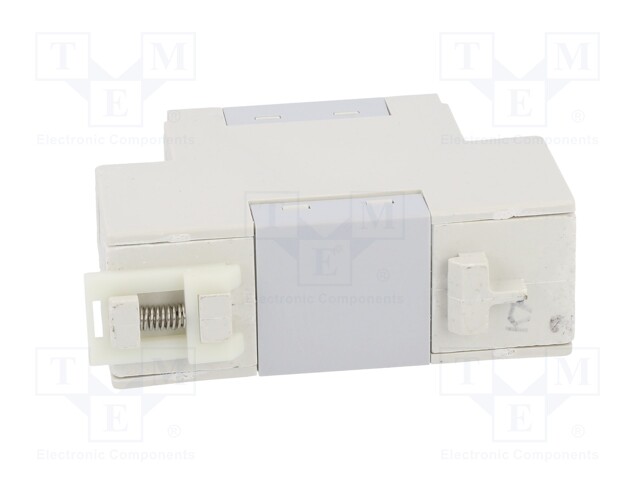

Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; 25A/400VAC; 130g

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RG25-3022-28-3230
    Tootja: RELPOL
    Tootja tootekood: RG25-3022-28-3230
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    21,32 € 21,32 € (KM-TA) 21.32 EUR

    21,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; 25A/400VAC; 130g

    Mounting for DIN rail mounting
    Operating temperature -25...85°C
    Leads screw terminals
    Contact material AgSnO<sub>2</sub>

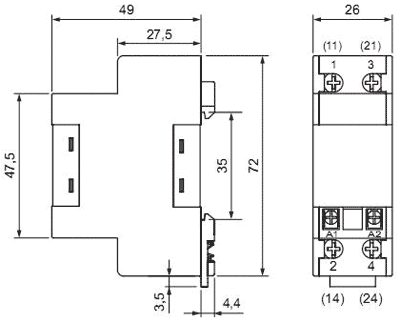

    Body dimensions 26x53.7x75.5mm
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Max surge current 40A
    Coil resistance 6.8kΩ

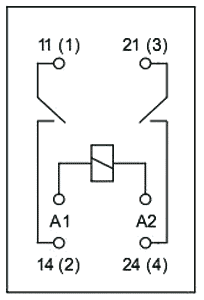

    Contacts configuration DPST-NO
    DC contacts rating @R 25A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 25A / 400V AC
    Contact current max. 25A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 3VA
    Operate time 20ms
    Release time 20ms
    OEM number 862722
