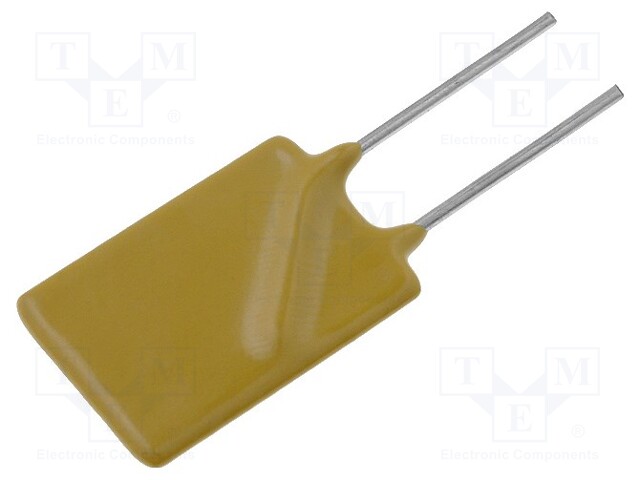

Fuse: PTC polymer; 8A; Pitch: 5.1mm; Leads dim: Ø0.81x7.6mm

    Kordarv: 1.0
    Minimum quantity: 4.0
    Tootekood: RG800-16
    Tootja: ECE
    Tootja tootekood: RG800-16
    • Mounting
    • Power
    • Operating temperature
    • Terminal pitch
    • D dimension
    • Current rating
    • Leads dimensions
    • Max surge current
    • B dimension
    • A dimension
    • C dimension
    • E dimension
    • F dimension
    • Max resistance
    • Type of fuse
    • Switched current
    • Min. resistance

    0,75 € 0,75 € (KM-TA) 0.75 EUR

    0,75 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

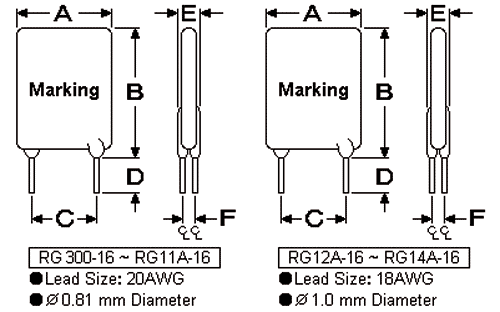

    Spetsifikatsioon tootele Fuse: PTC polymer; 8A; Pitch: 5.1mm; Leads dim: Ø0.81x7.6mm

    Mounting THT
    Power 3W
    Operating temperature -40...85°C
    Terminal pitch 5.1mm
    D dimension 7.6mm
    Current rating 8A
    Leads dimensions Ø0.81x7.6mm
    Max surge current 100A
    B dimension 20.9mm
    A dimension 12.7mm
    C dimension 5.1mm
    E dimension 3mm
    F dimension 1.2mm
    Max resistance 18mΩ
    Type of fuse PTC polymer
    Switched current 13.6A
    Min. resistance 5mΩ
