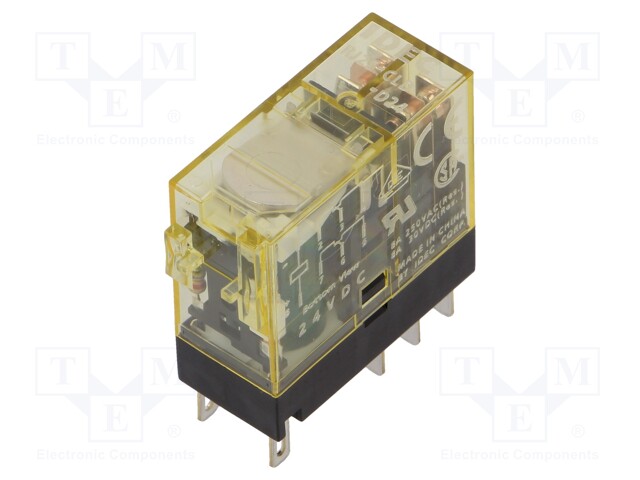

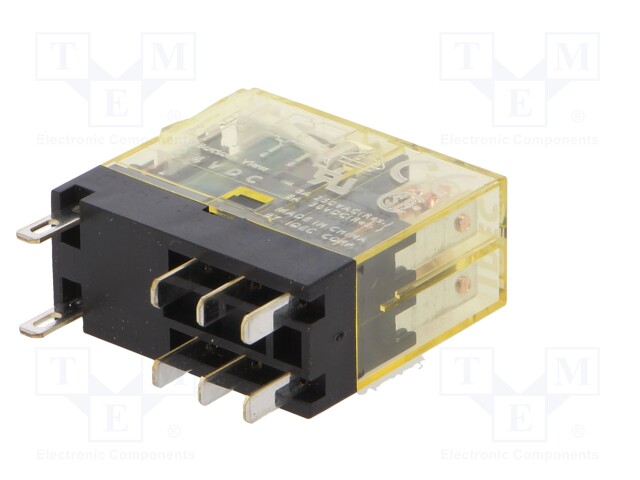

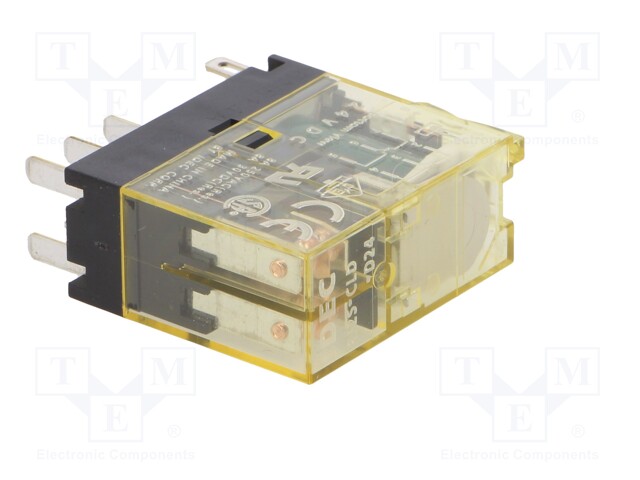

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RJ2S-CLD-D24
    Tootja: IDEC
    Tootja tootekood: RJ2S-CLD-D24
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Switched voltage
    • Switched voltage
    • Rated voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current
    • Optional equipment

    6,89 € 6,89 € (KM-TA) 6.890000000000001 EUR

    6,89 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Number of pins 8
    Contact material AgSnO<sub>2</sub>
    Switched voltage ≤ 125V DC, ≤ 250V AC
    Rated voltage 250V AC
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 4A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant industrial
    Type of relay electromagnetic
    Coil current 25.7mA
    Optional equipment LED indicator
