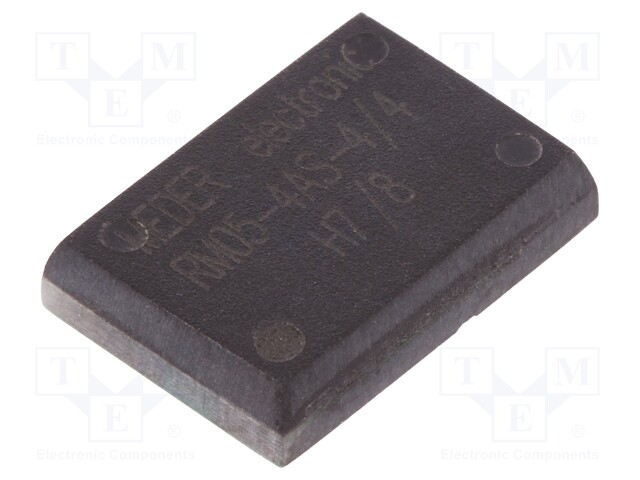

Relay: reed; SPST-NO x4; Ucoil: 5VDC; 500mA; max.170VDC; max.170VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM05-4AS-4/4
    Tootja: MEDER
    Tootja tootekood: RM05-4AS-4/4
    • Mounting
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    22,72 € 22,72 € (KM-TA) 22.72 EUR

    22,72 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: reed; SPST-NO x4; Ucoil: 5VDC; 500mA; max.170VDC; max.170VAC

    Mounting SMD, PCB
    Operating temperature -40...85°C
    Body dimensions 16x11.2x4mm
    Switched voltage ≤ 170V AC, ≤ 170V DC
    Min. insulation resistance 10GΩ
    Switching capacity 10W
    Coil resistance 185Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO x4
    Contact resistance 200mΩ
    Contact current max. 500mA
    Type of relay reed
    Coil power consumption 135mW
    Operate time 600µs
    Release time 100µs
