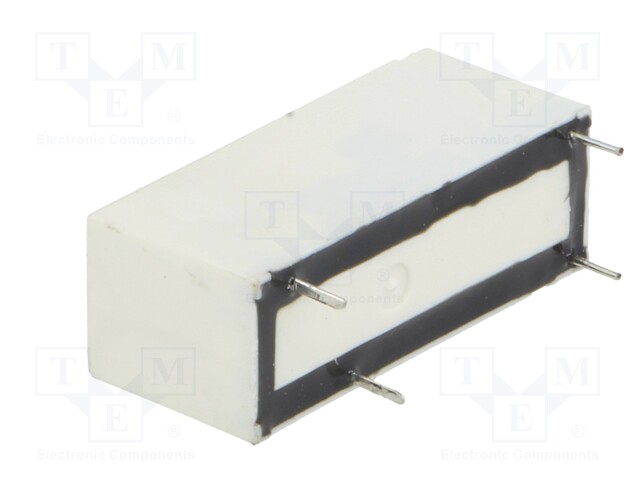

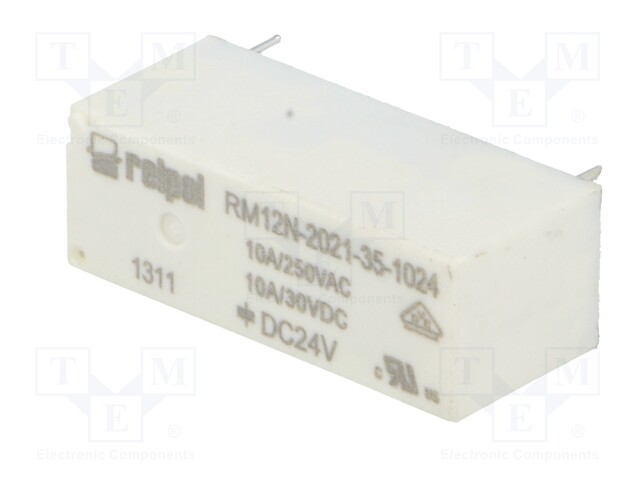

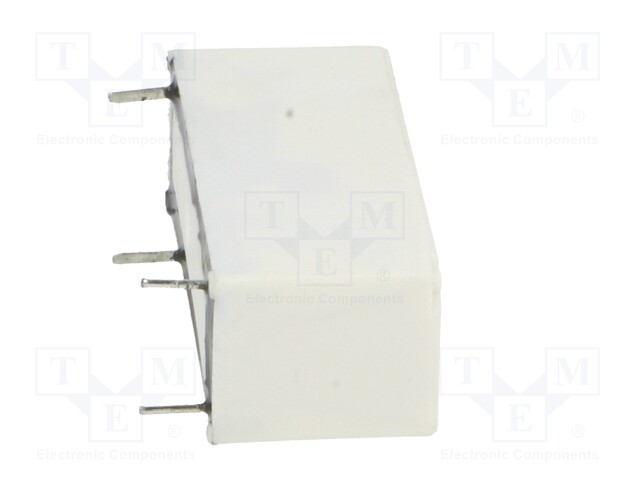

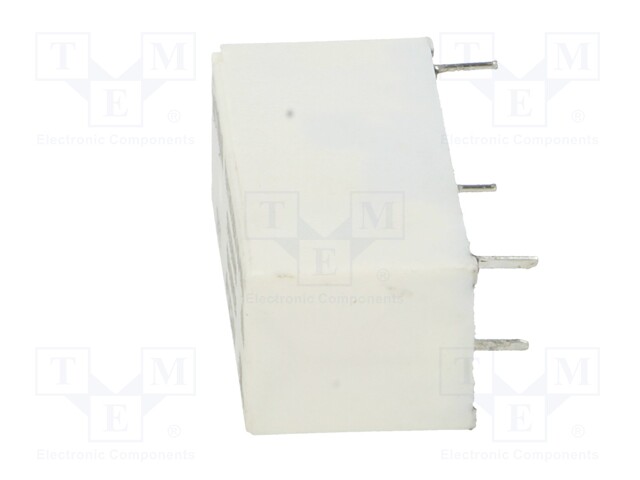

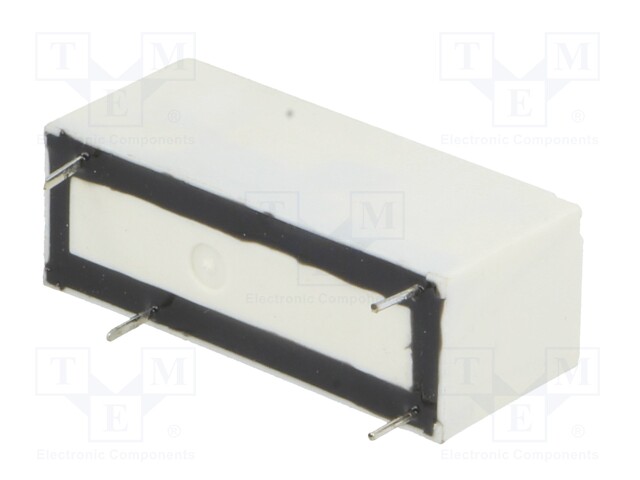

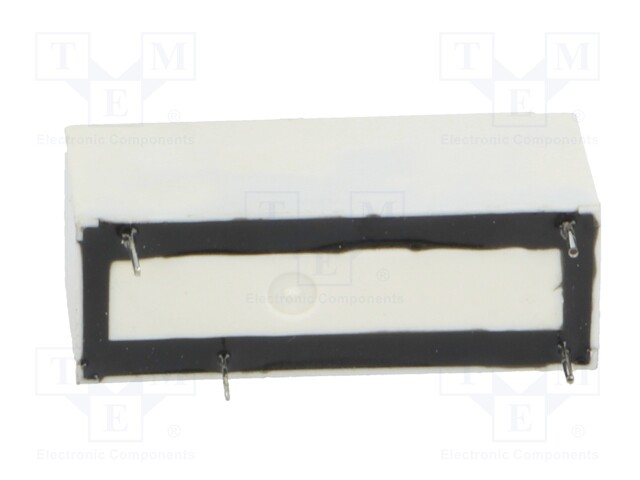

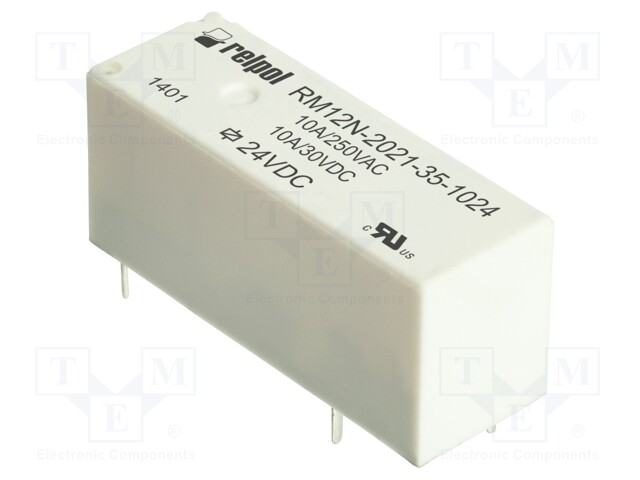

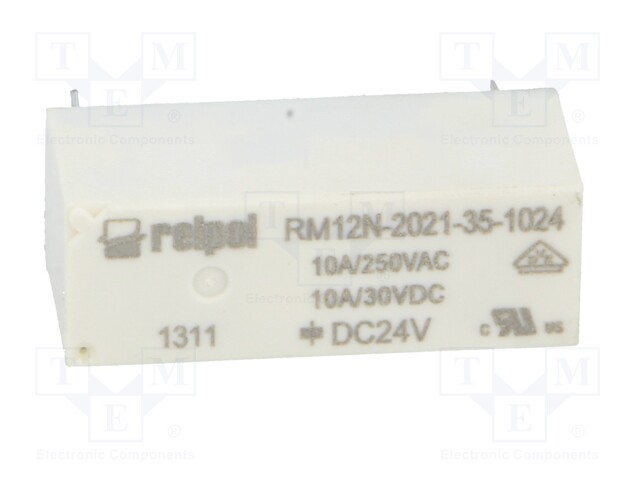

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/250VAC; 8A/28VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM12N-2021-35-1024
    Tootja: RELPOL
    Tootja tootekood: RM12N-2021-35-1024
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3,62 € 3,62 € (KM-TA) 3.62 EUR

    3,62 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/250VAC; 8A/28VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgNi
    Terminal pitch 7.62mm
    Body dimensions 28.7x10.3x12.7mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 30V DC, ≤ 440V AC
    Electrical life 100000cycles
    Coil resistance 2.35kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 8A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 220mW
    Operate time 10ms
    Release time 5ms
    OEM number 2614967
