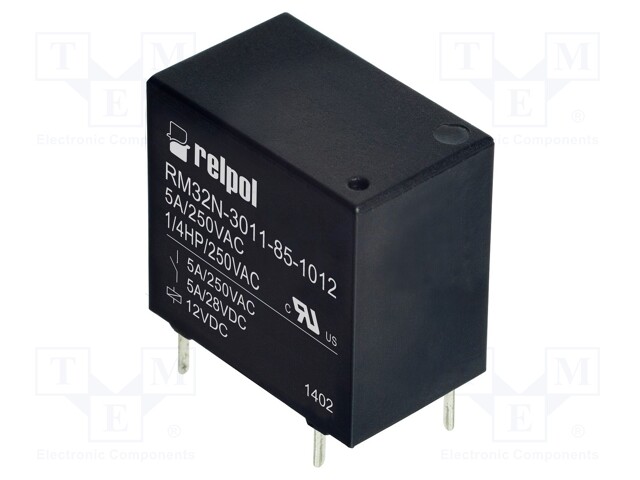

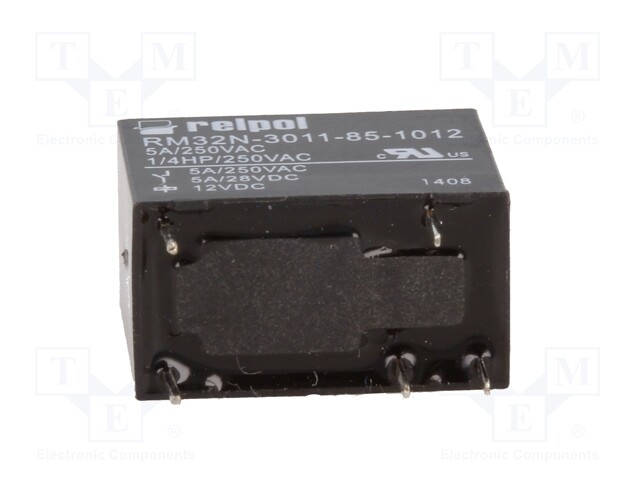

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/250VAC; 5A/28VDC; 5A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM32N-3011-85-1012
    Tootja: RELPOL
    Tootja tootekood: RM32N-3011-85-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3,48 € 3,48 € (KM-TA) 3.48 EUR

    3,48 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/250VAC; 5A/28VDC; 5A

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 7.62mm
    Body dimensions 18.8x10.6x15.3mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 28V DC, ≤ 277V AC
    Electrical life 100000cycles
    Coil resistance 320Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
    Operate time 8ms
    Release time 5ms
    OEM number 2615029
