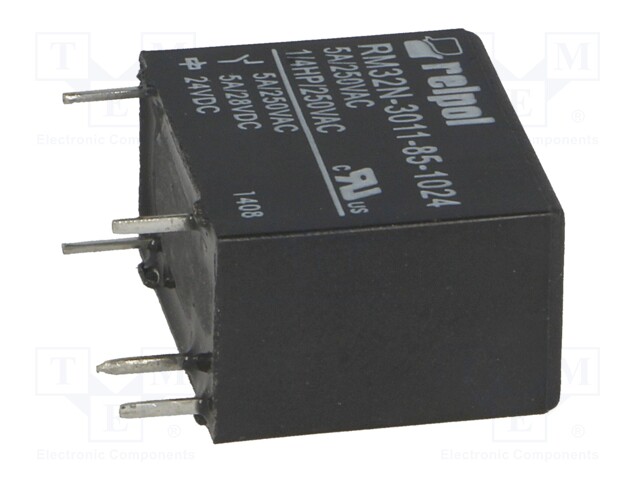

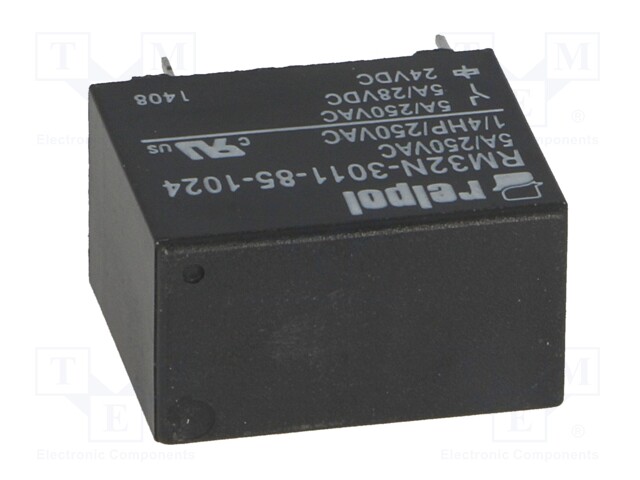

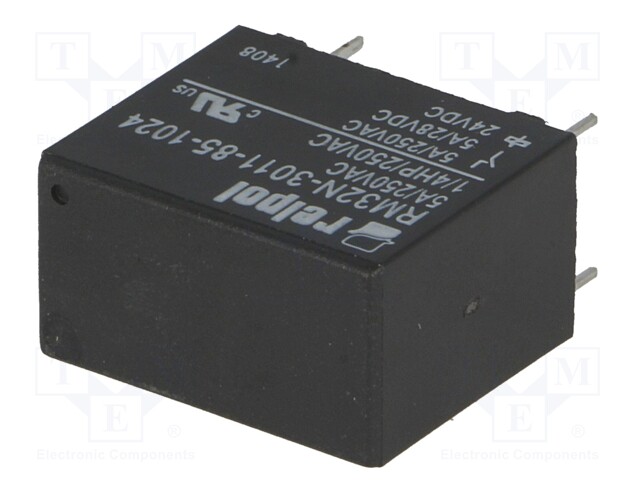

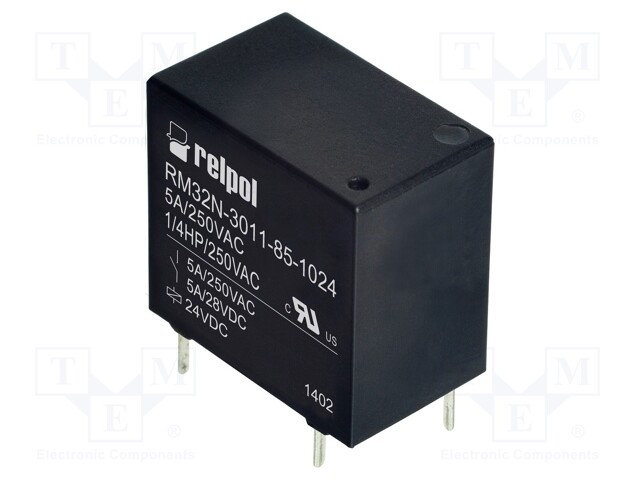

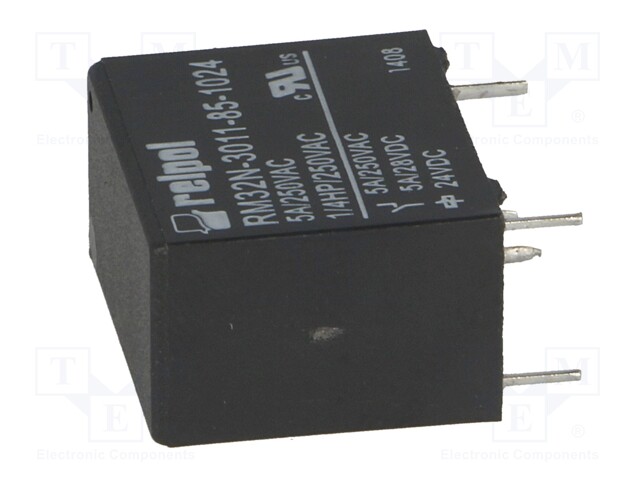

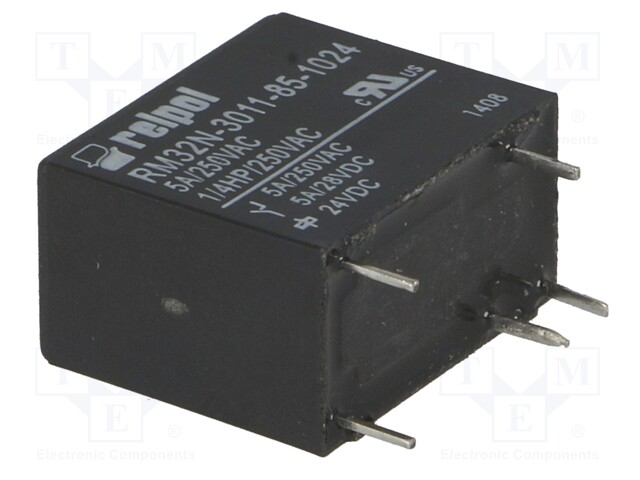

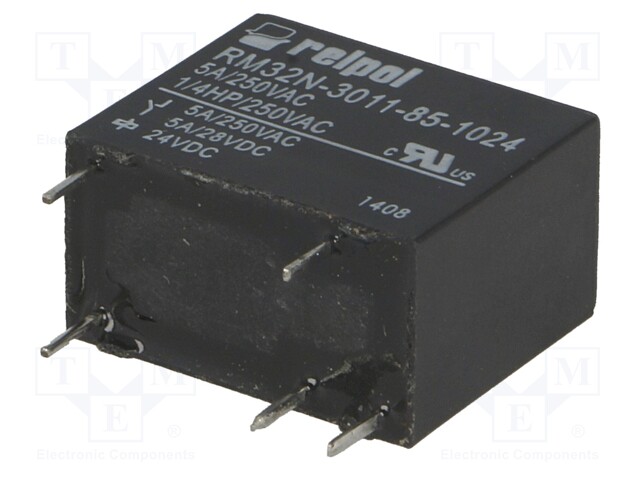

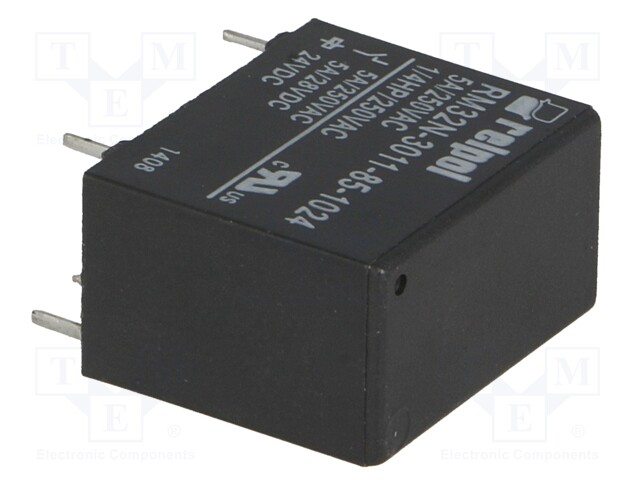

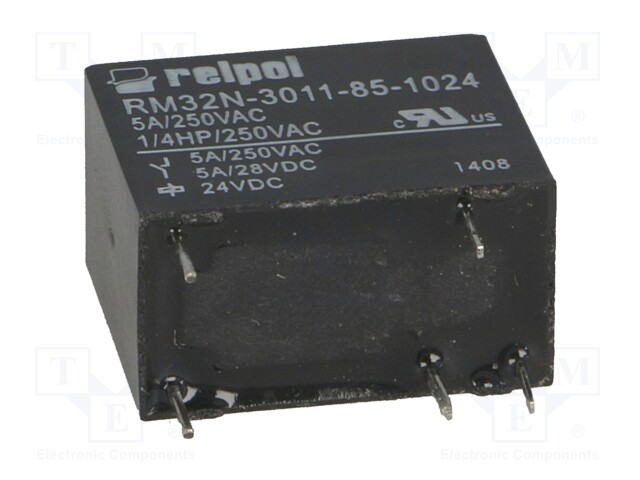

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/28VDC; 5A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM32N3011851024
    Tootja: RELPOL
    Tootja tootekood: RM32N-3011-85-1024
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Current rating
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/28VDC; 5A

    Mounting PCB, socket
    Operating temperature -40...70°C
    IP rating IP64, IP67
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 7.62mm
    Body dimensions 18.8x10.6x15.3mm
    Mechanical durability 100000000cycles
    Current rating 5A
    Switched voltage ≤ 28V DC, ≤ 277V AC
    Electrical life 100000cycles
    Coil resistance 1.28kΩ, 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 200mW, 450mW
    Operate time 8ms
    Release time 5ms
    OEM number 2615031
