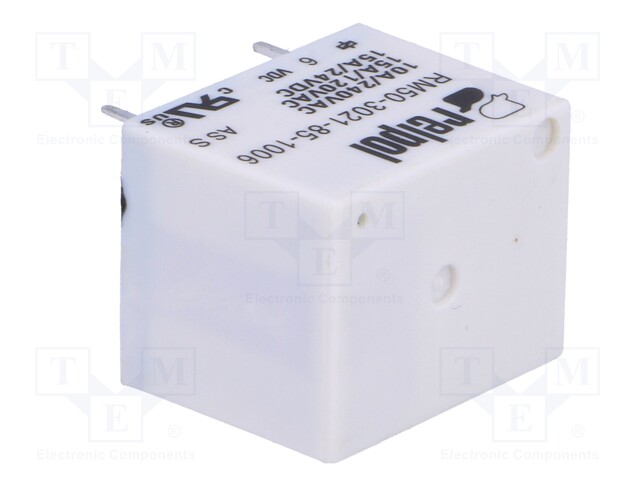

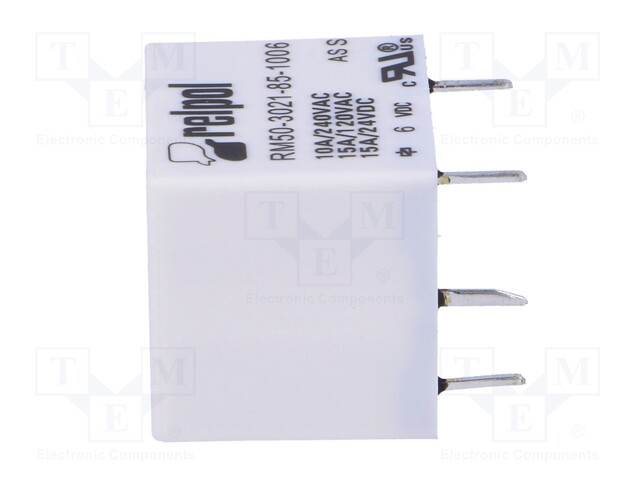

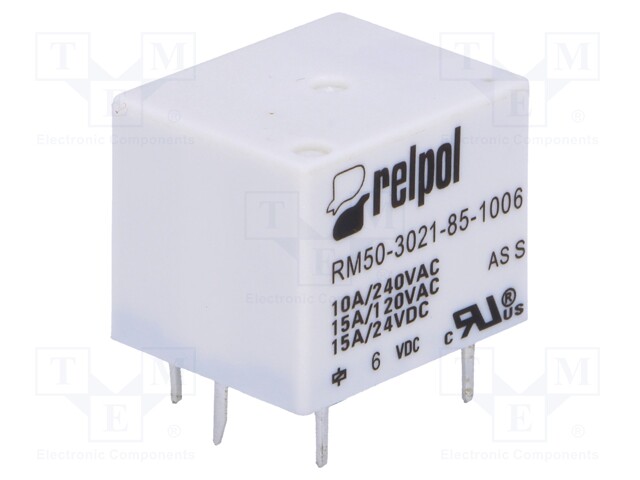

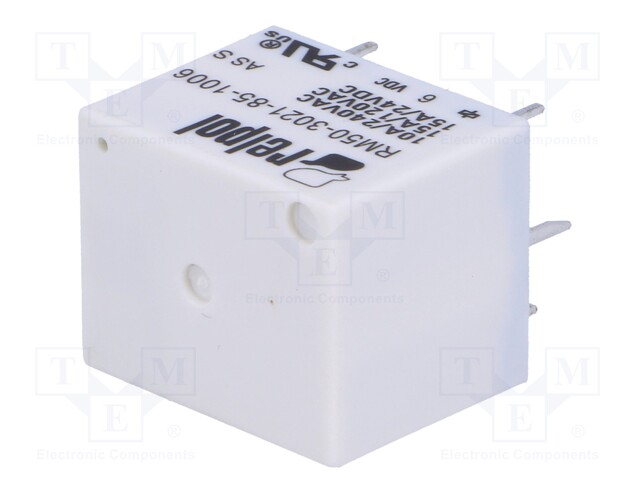

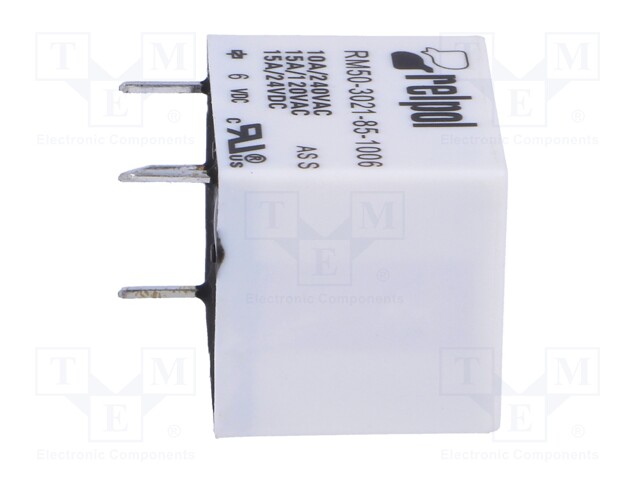

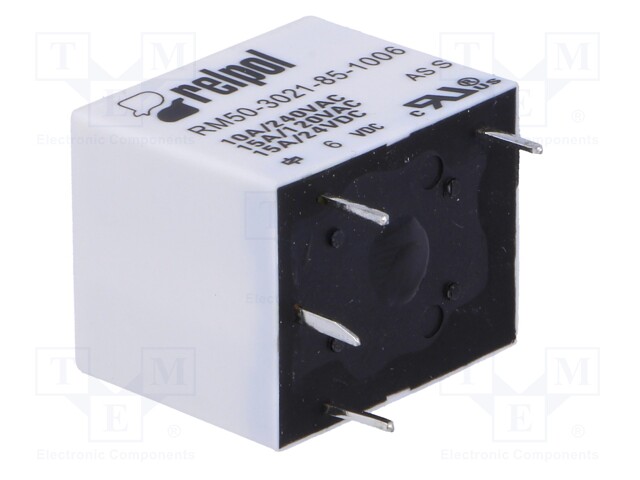

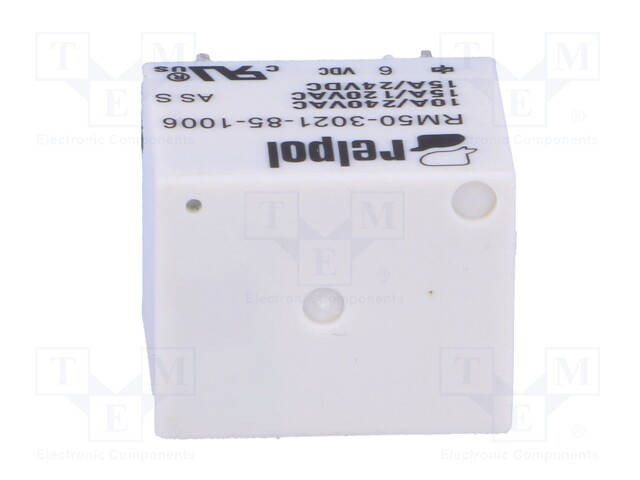

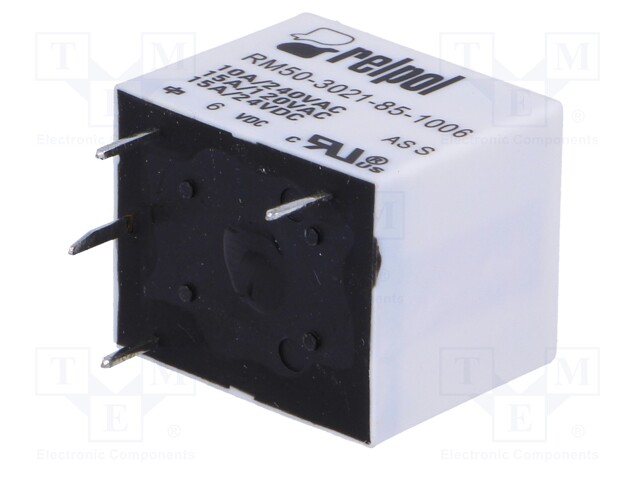

Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 10A; max.277VAC; 100Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM50-3021-85-1006
    Tootja: RELPOL
    Tootja tootekood: RM50-3021-85-1006
    • Mounting
    • Operating temperature
    • Operating temperature
    • IP rating
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Current rating
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    2,82 € 2,82 € (KM-TA) 2.82 EUR

    2,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 10A; max.277VAC; 100Ω

    Mounting PCB
    Operating temperature -30...55°C, -30...85°C
    IP rating IP64, IP67
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm
    Body dimensions 19x15.4x15.5mm
    Current rating 12A
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 100Ω
    Rated coil voltage 6V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 15A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 240V AC
    Contact current max. 10A, 12A
    Relay variant miniature
    Coil voltage max. 7.8V DC
    Type of relay electromagnetic
    Coil voltage min. 4.5V DC
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
    OEM number 2611661
