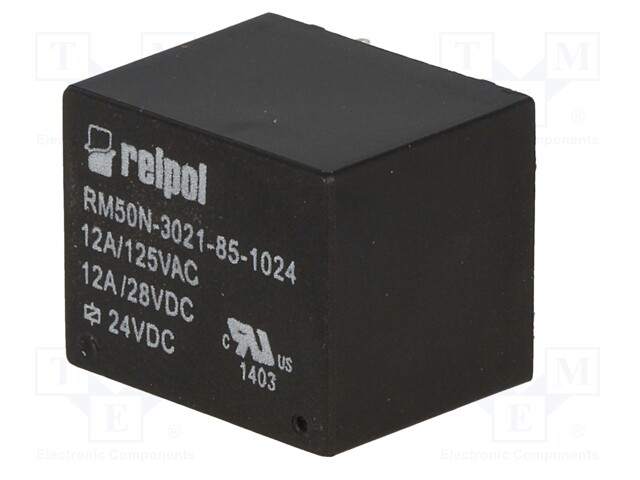

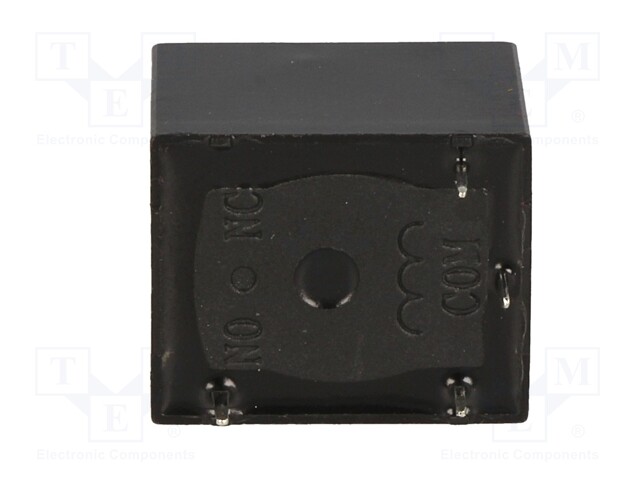

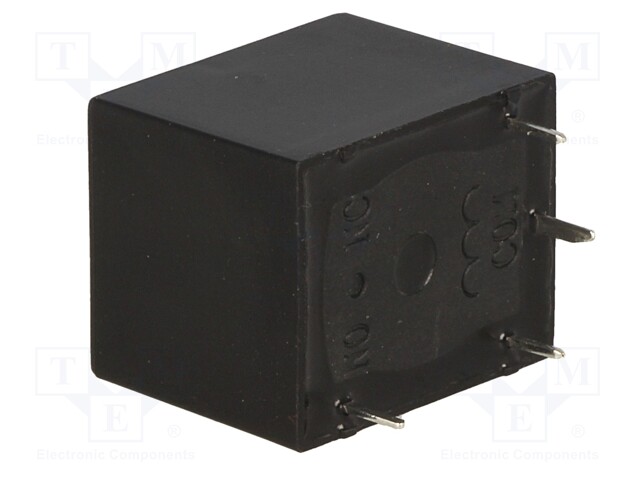

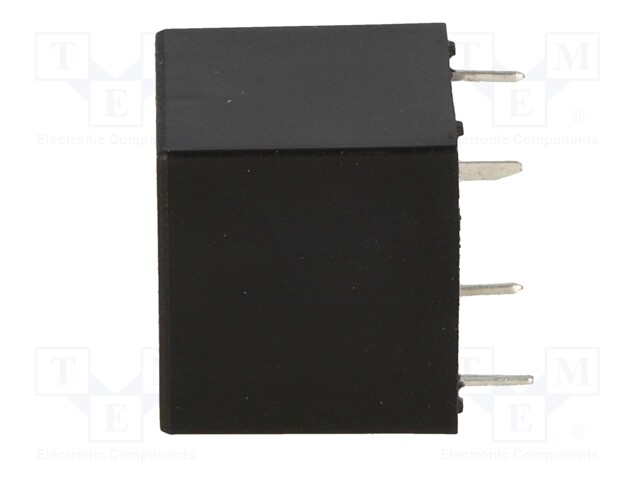

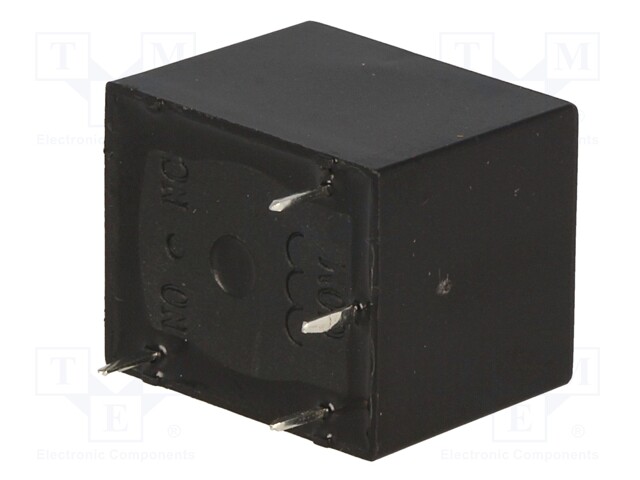

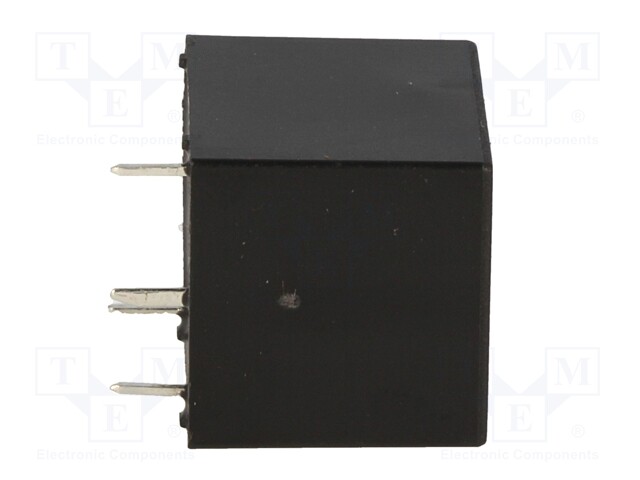

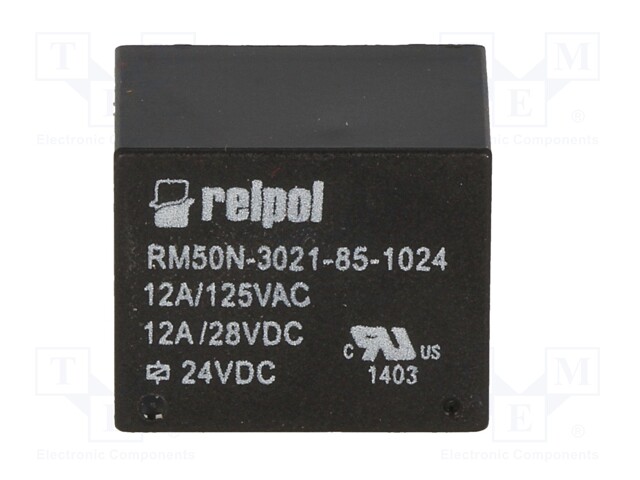

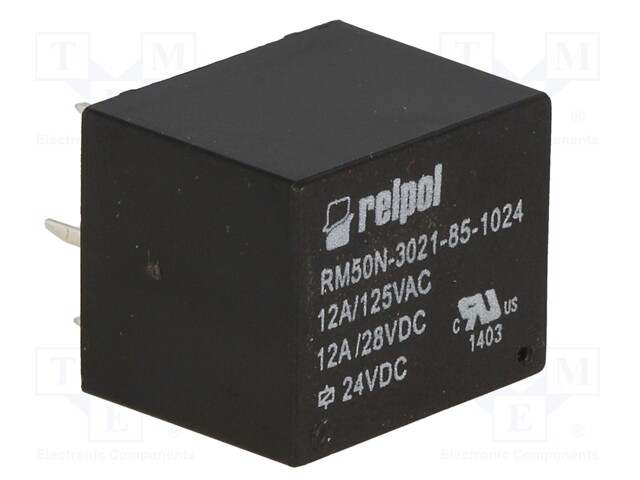

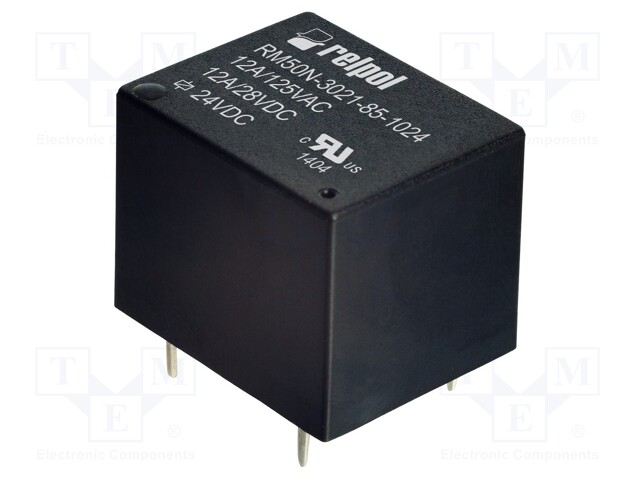

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A/125VAC; 12A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM50N-3021-85-1024
    Tootja: RELPOL
    Tootja tootekood: RM50N-3021-85-1024
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    2,12 € 2,12 € (KM-TA) 2.12 EUR

    2,12 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A/125VAC; 12A

    Mounting PCB
    Operating temperature -30...55°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm
    Body dimensions 19x15.6x15.3mm
    Switched voltage ≤ 28V DC, ≤ 277V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 12A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 125V AC
    Contact current max. 12A
    Relay variant miniature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
    OEM number 2614660
