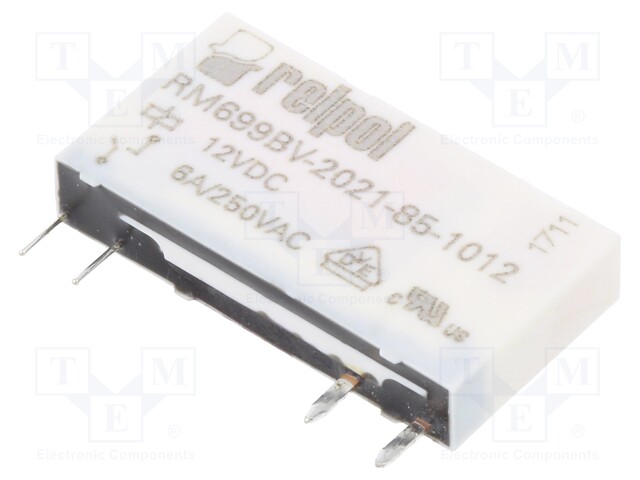

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A/250VAC; 6A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM699BV-2021-85-1012
    Tootja: RELPOL
    Tootja tootekood: RM699BV-2021-85-1012
    • Mounting
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    7,74 € 7,74 € (KM-TA) 7.74 EUR

    7,74 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A/250VAC; 6A/24VDC

    Mounting PCB, socket, vertical
    Operating temperature -40...85°C
    IP rating IP64
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 28x5x15mm
    Switched voltage ≤ 24V DC, ≤ 400V AC
    Coil resistance 848Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 6A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant interface
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 170mW
    Operate time 8ms
    Release time 4ms
    OEM number 2615502
