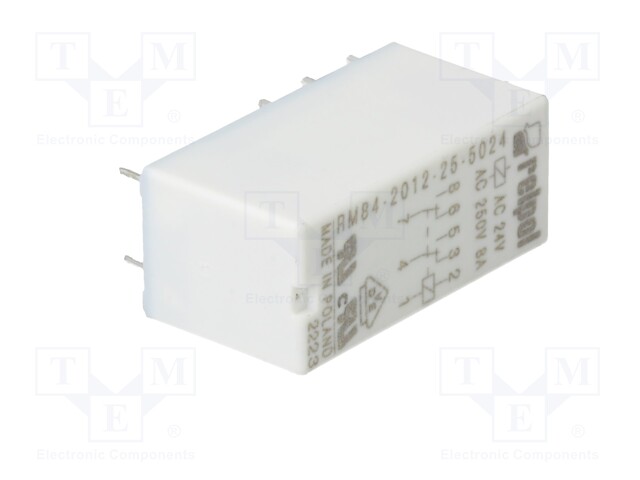

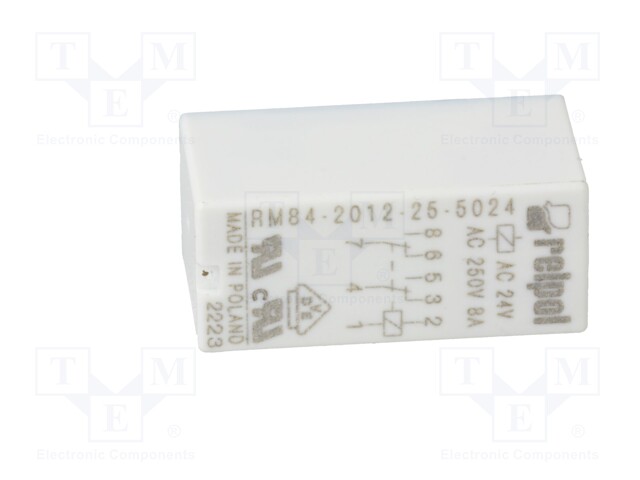

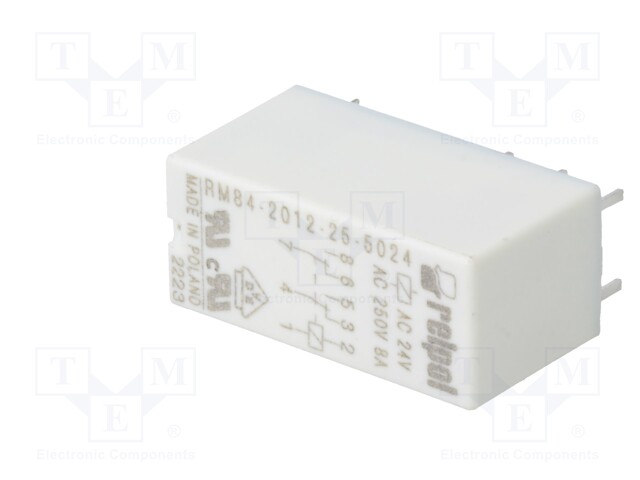

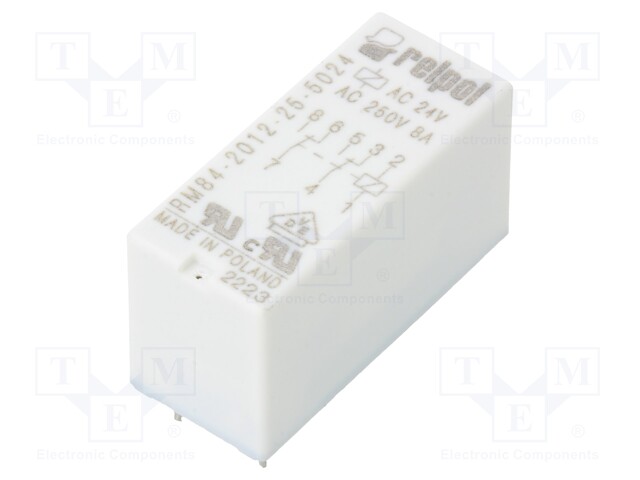

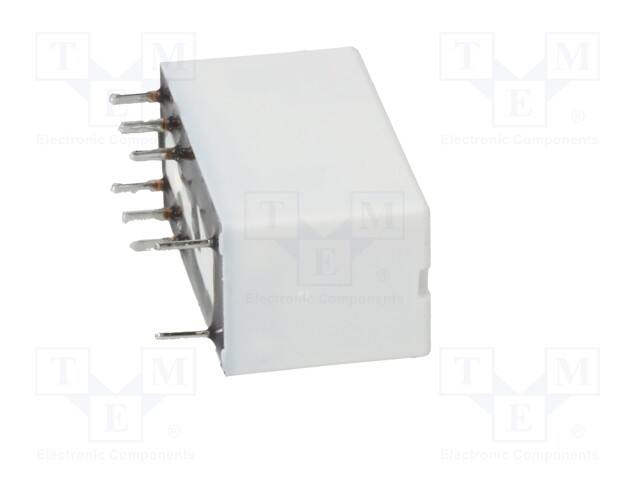

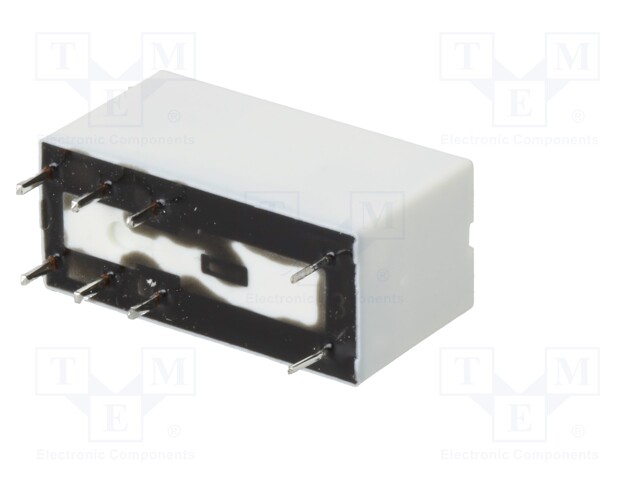

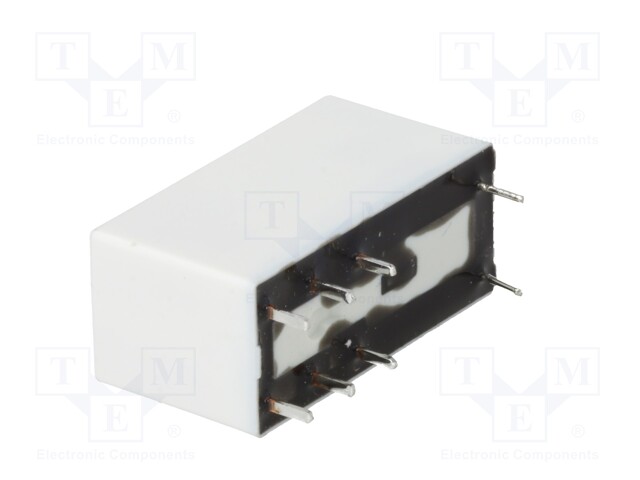

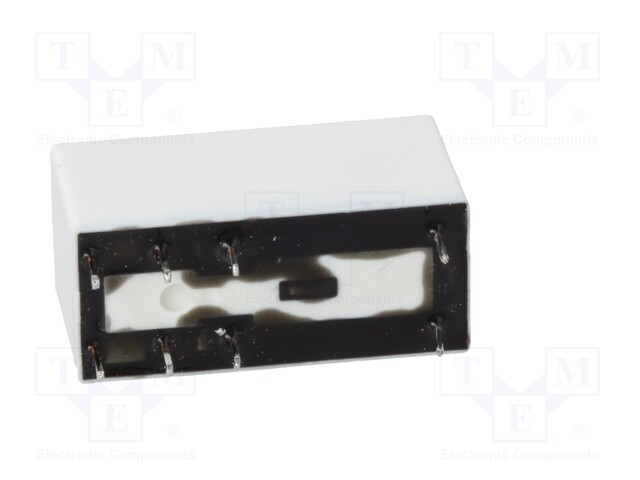

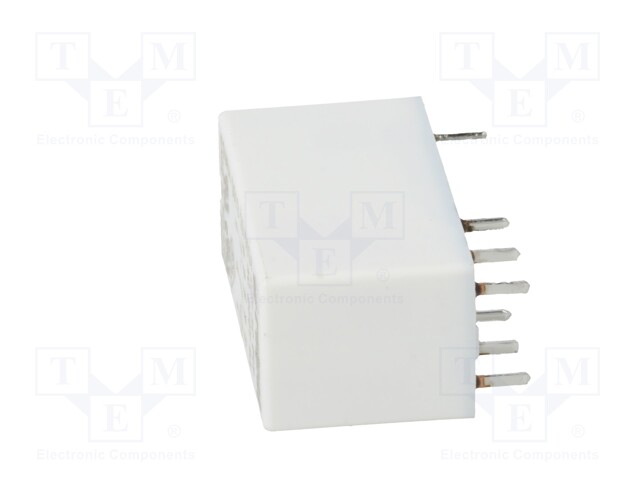

Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/250VAC; 8A/24VDC; 8A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM84-2012-25-5024
    Tootja: RELPOL
    Tootja tootekood: RM84-2012-25-5024
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    3,35 € 3,35 € (KM-TA) 3.35 EUR

    3,35 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/250VAC; 8A/24VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Number of pins 8
    Contact material AgNi
    Terminal pitch 5mm
    Height 15.7mm
    Body colour grey
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 30000000cycles
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Coil resistance 400Ω
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.75VA
    Operate time 7ms
    Release time 3ms
