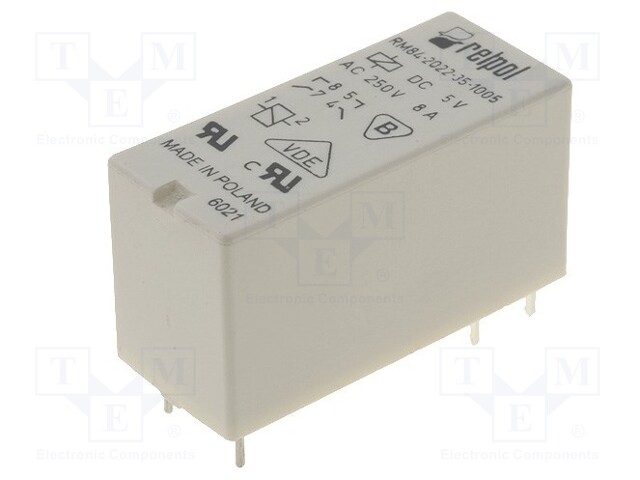

Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; 8A/250VAC; 8A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM84-2022-35-1005
    Tootja: RELPOL
    Tootja tootekood: RM84-2022-35-1005
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3,35 € 3,35 € (KM-TA) 3.35 EUR

    3,35 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Number of pins 6
    Contact material AgNi
    Terminal pitch 5mm
    Height 15.7mm
    Body colour white
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 30000000cycles
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Coil resistance 60Ω
    Rated coil voltage 5V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 12.7V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 480mW
    Operate time 7ms
    Release time 3ms
    OEM number 600463
