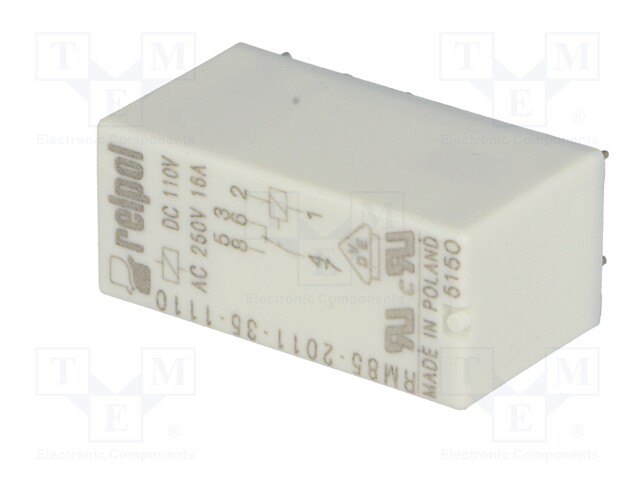

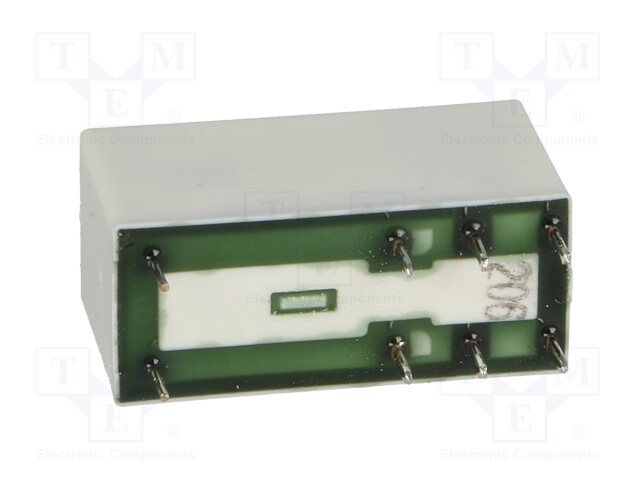

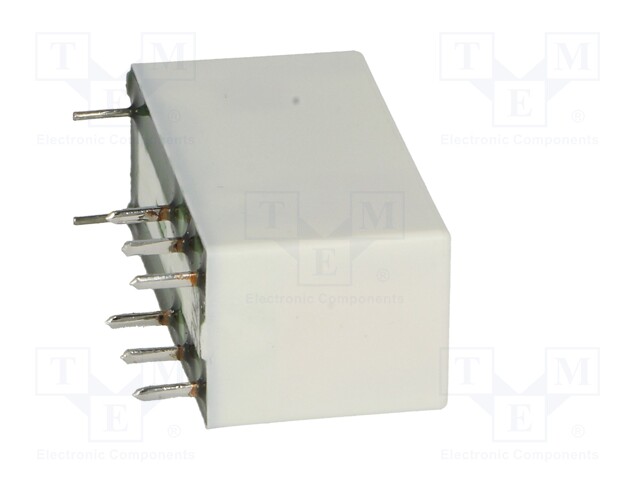

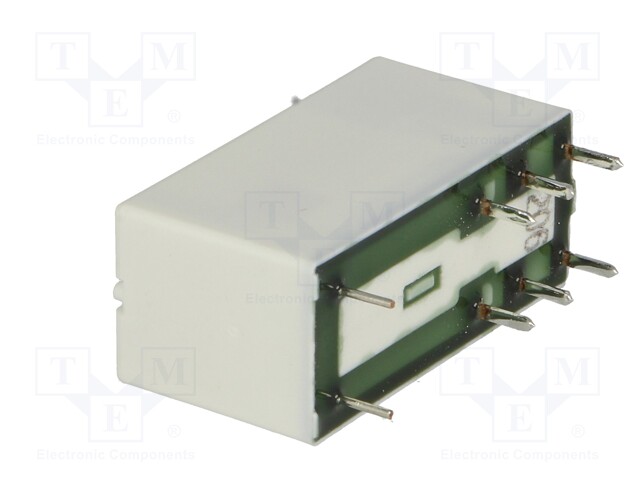

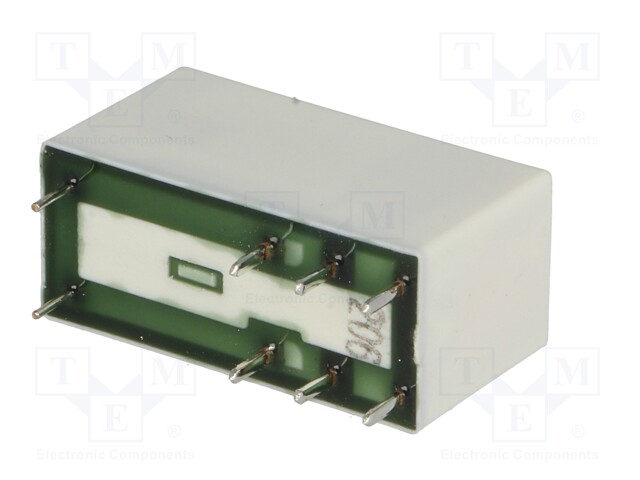

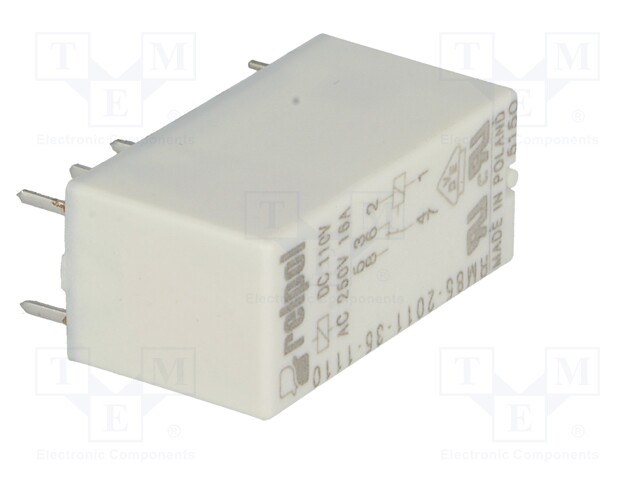

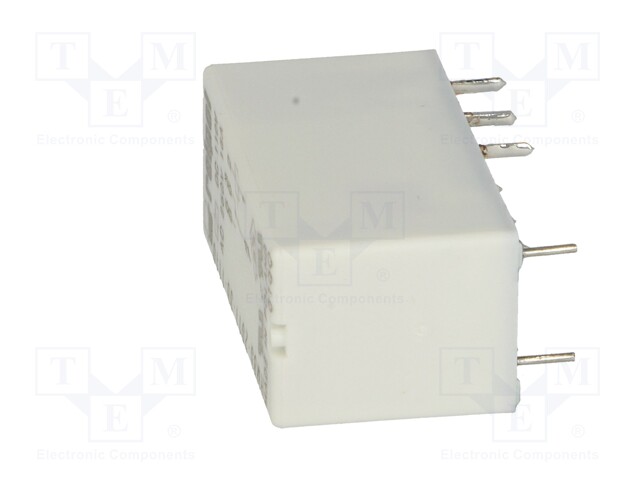

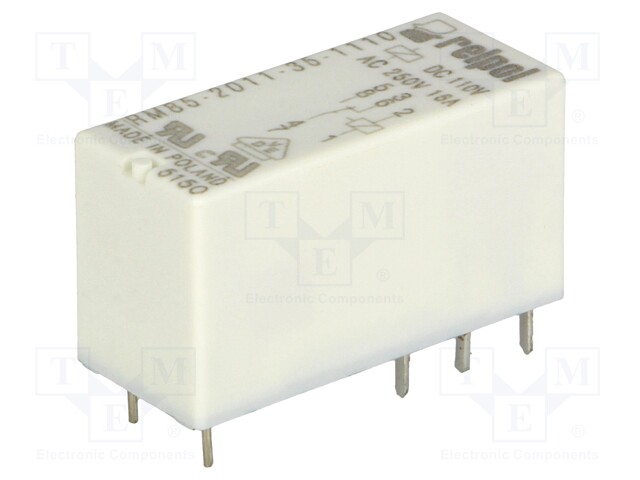

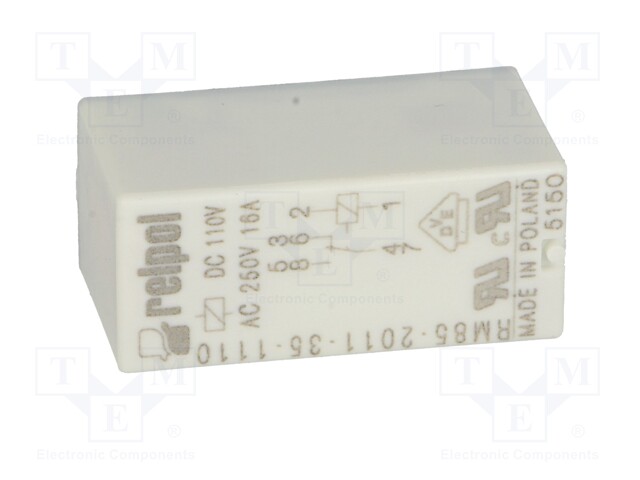

Relay: electromagnetic; SPDT; Ucoil: 110VDC; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM85-2011-35-1110
    Tootja: RELPOL
    Tootja tootekood: RM85-2011-35-1110
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body colour
    • Body dimensions
    • Current rating
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3,93 € 3,93 € (KM-TA) 3.93 EUR

    3,93 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 110VDC; 16A/250VAC; 16A/24VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgNi
    Terminal pitch 5mm
    Body colour white
    Body dimensions 29x12.7x15.7mm
    Current rating 16A
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Coil resistance 25.2kΩ
    Rated coil voltage 110V DC
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 280V DC
    Type of relay electromagnetic
    Coil voltage min. 77V DC
    Coil power consumption 480mW
    Operate time 8ms
    Release time 3ms
    OEM number 600024
