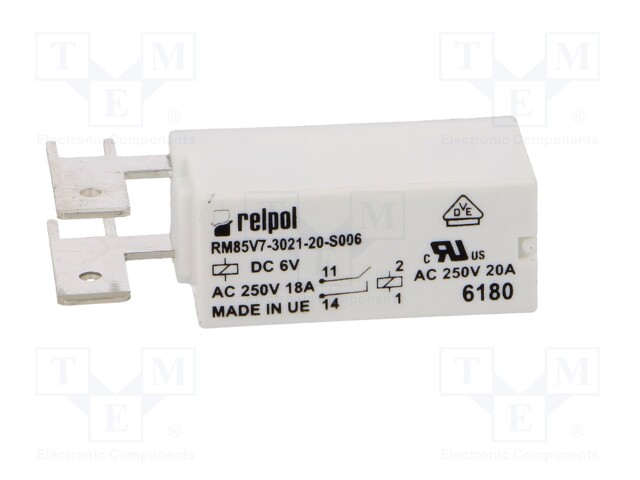

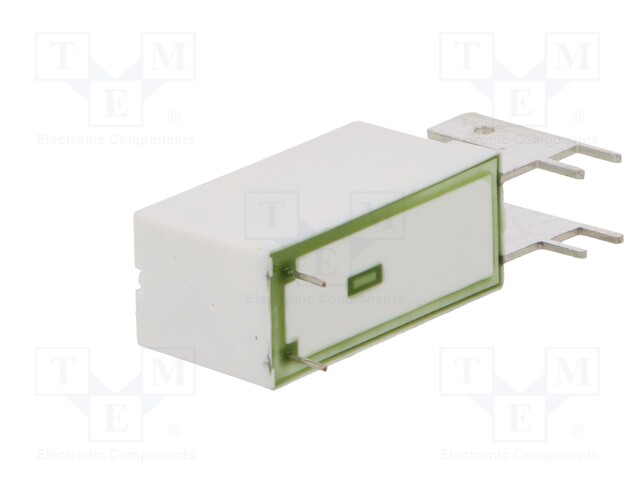

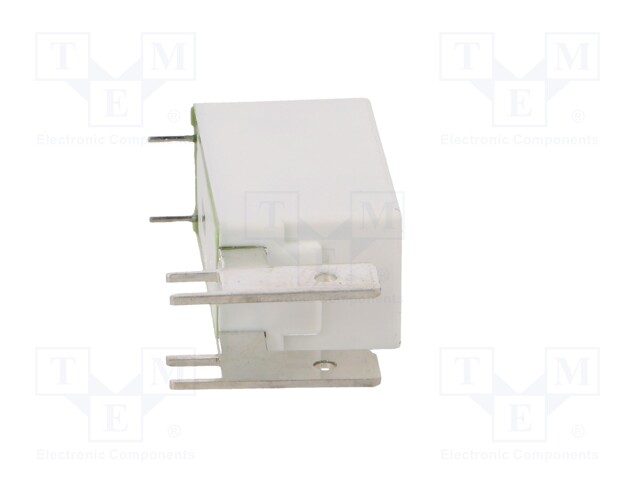

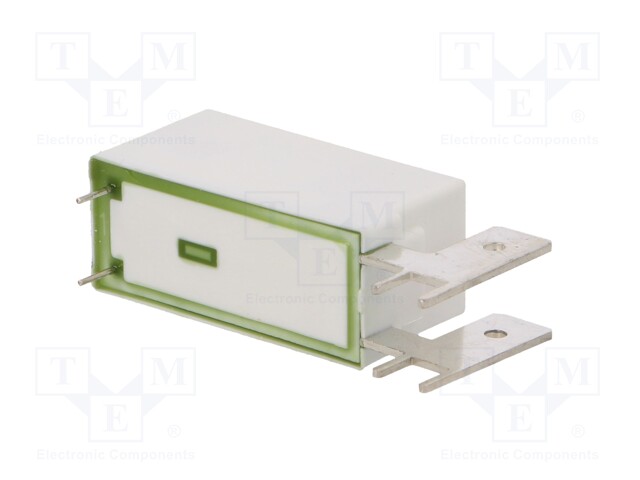

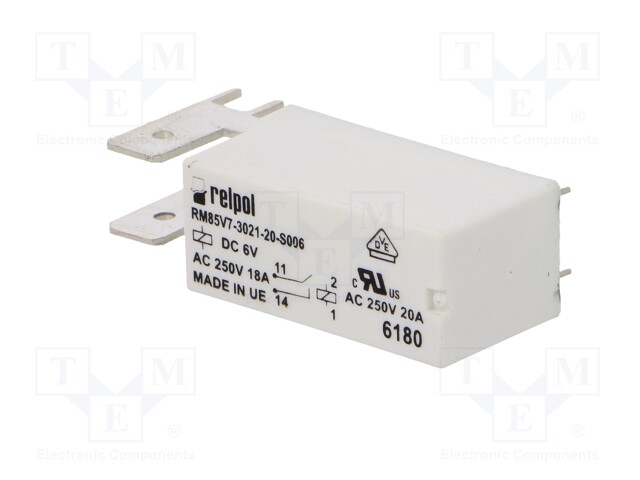

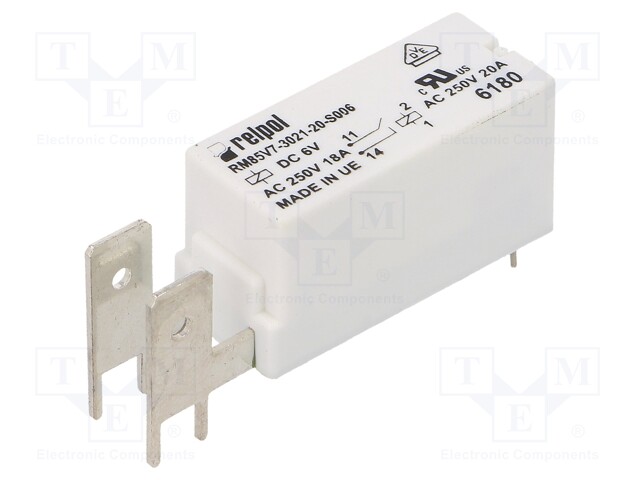

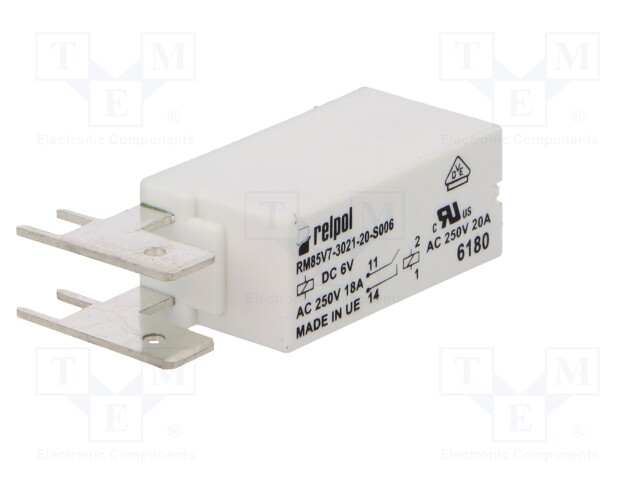

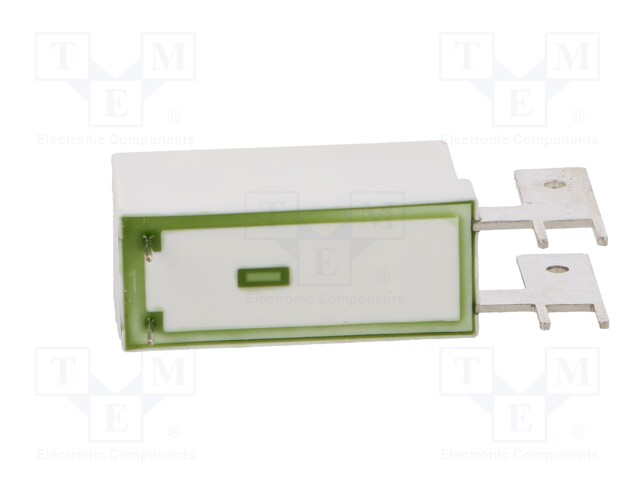

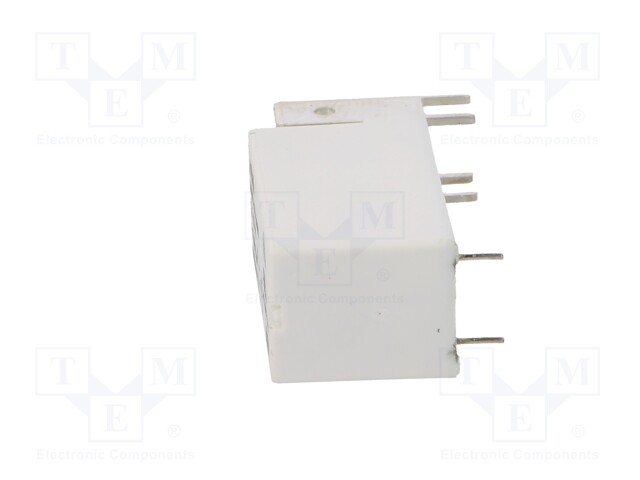

Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 20A/250VAC; 20A; IP40

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM85V7-3021-20-S006
    Tootja: RELPOL
    Tootja tootekood: RM85V7-3021-20-S006
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 20A/250VAC; 20A; IP40

    Mounting PCB
    Operating temperature -40...105°C
    IP rating IP40
    Leads for PCB, connectors
    Terminal pitch 7.5mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Coil resistance 144Ω
    Rated coil voltage 6V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 20A / 250V AC
    Contact current max. 20A
    Relay variant miniature
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 4.5V DC
    Coil power consumption 250mW
    Operate time 8ms
    Release time 3ms
