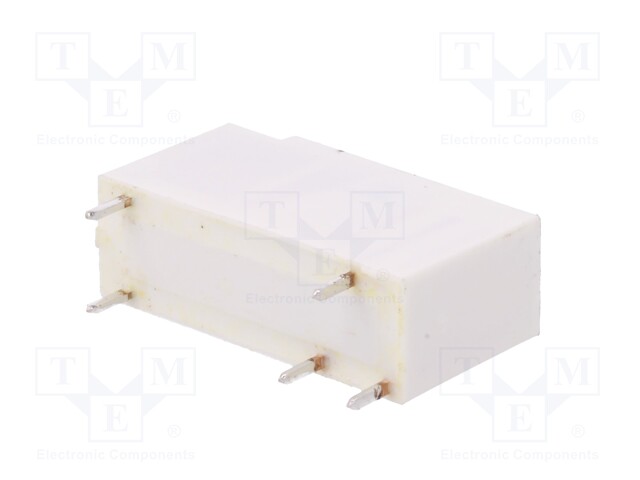

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC; 8A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RM96-3011-35-1024
    Tootja: RELPOL
    Tootja tootekood: RM96-3011-35-1024
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    2,97 € 2,97 € (KM-TA) 2.97 EUR

    2,97 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC; 8A

    Mounting PCB
    Operating temperature -40...80°C
    IP rating IP67
    Number of pins 5
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 3.2mm
    Height 16.2mm
    Body dimensions 30x10x16.2mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 120V DC, ≤ 440V AC
    Coil resistance 2.2kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 54V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 300mW
    Operate time 10ms
    Release time 5ms
    OEM number 852845
