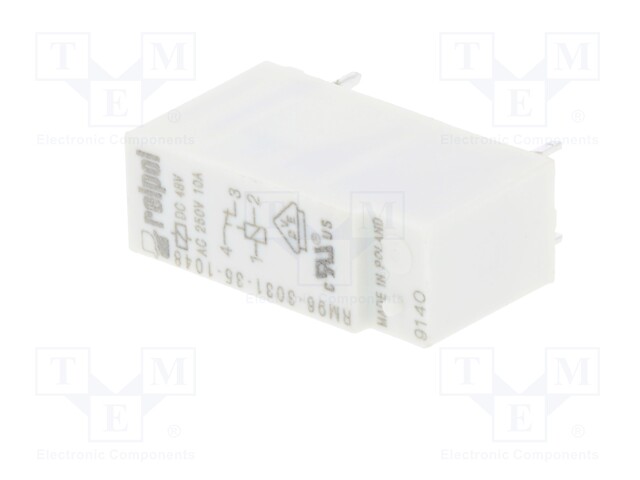

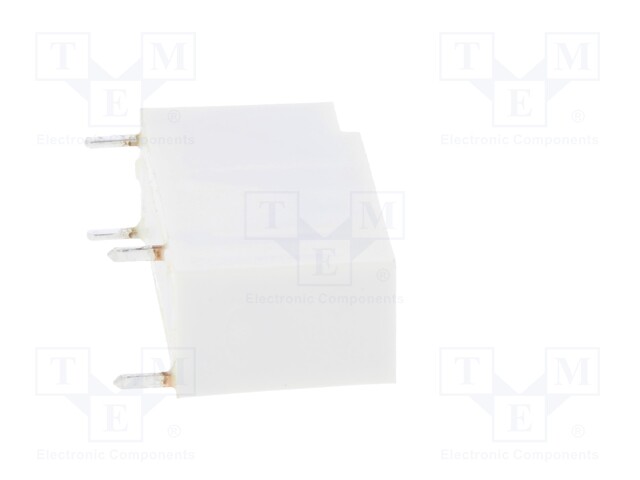

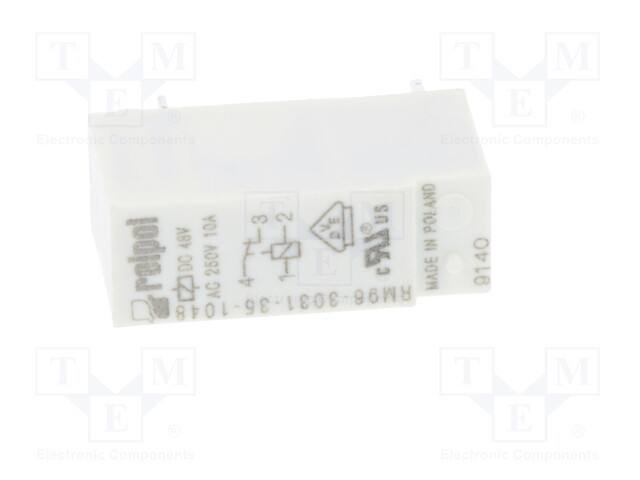

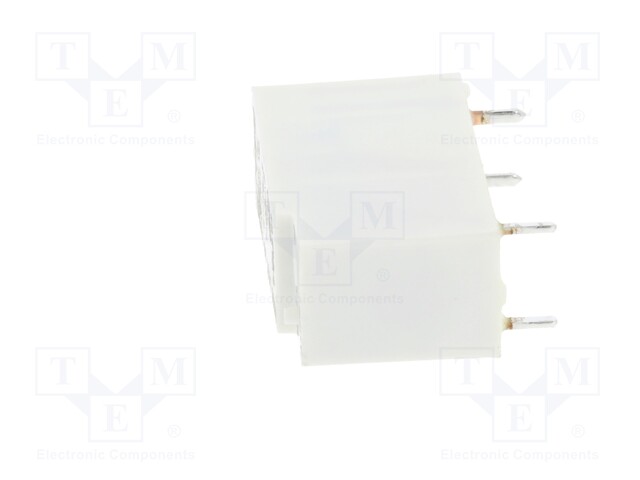

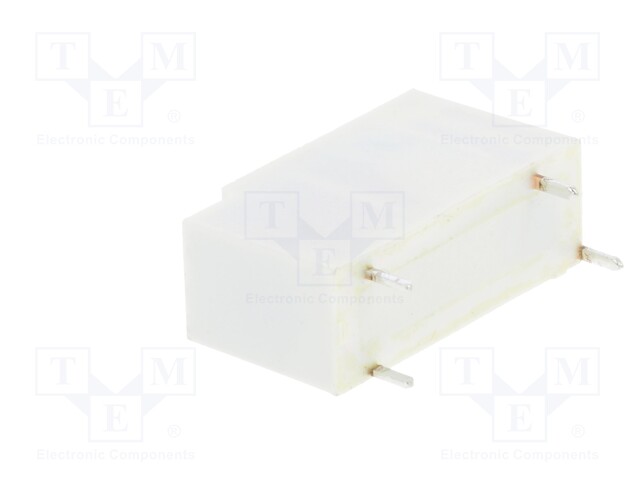

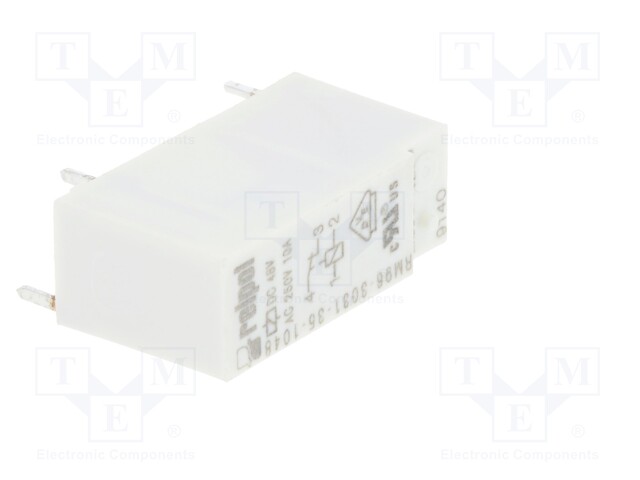

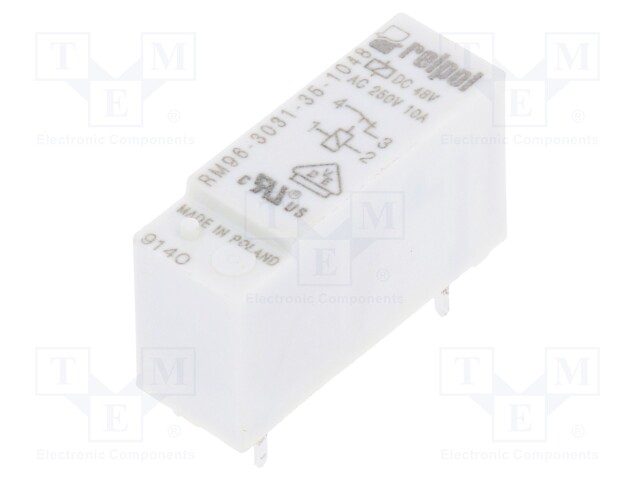

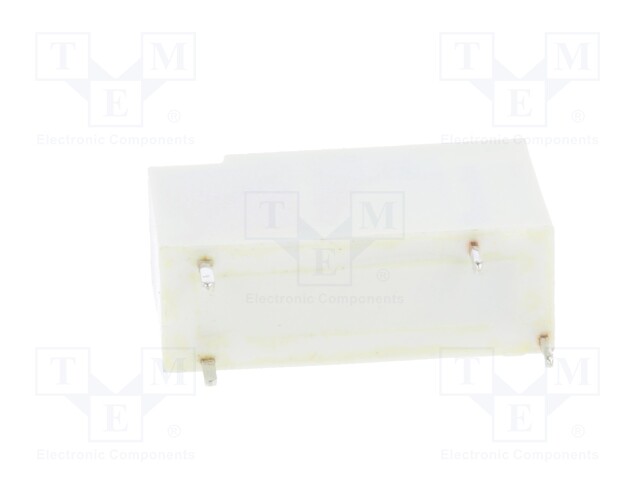

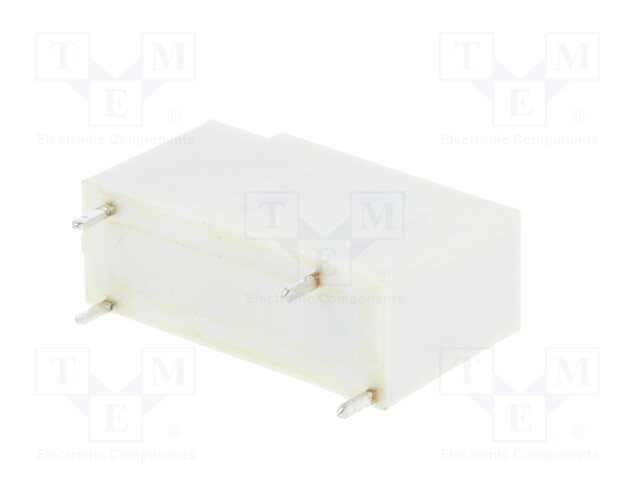

Relay: electromagnetic; SPST-NC; Ucoil: 48VDC; 8A/250VAC; 8A/24VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RM96-3031-35-1048
Tootja: RELPOL
Tootja tootekood: RM96-3031-35-1048
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPST-NC; Ucoil: 48VDC; 8A/250VAC; 8A/24VDC
| Mounting | PCB |
| Operating temperature | -40...80°C |
| IP rating | IP67 |
| Number of pins | 4 |
| Contact material | AgSnO<sub>2</sub> |
| Terminal pitch | 5mm |
| Height | 16.2mm |
| Body dimensions | 28x10x16.2mm |
| Mechanical durability | 20000000cycles |
| Switched voltage | ≤ 120V DC, ≤ 440V AC |
| Coil resistance | 8kΩ |
| Rated coil voltage | 48V DC |
| Contacts configuration | SPST-NC |
| DC contacts rating @R | 8A / 24V DC |
| Contact resistance | 100MΩ |
| AC contacts rating @R | 8A / 250V AC |
| Contact current max. | 8A |
| Relay variant | miniature |
| Coil voltage max. | 102V DC |
| Type of relay | electromagnetic |
| Coil voltage min. | 33.6V DC |
| Coil power consumption | 300mW |
| Operate time | 10ms |
| Release time | 5ms |
| OEM number | 852874 |
