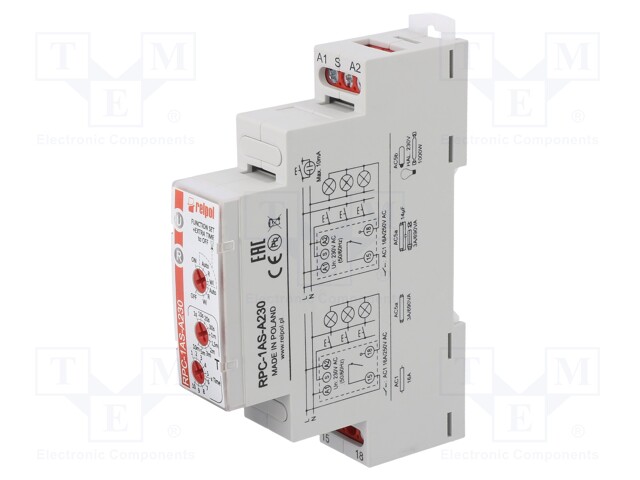

Timer; 0,1s÷10min; SPST-NO; 24VDC/16A,250VAC/16A; 230VAC; DIN
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RPC-1AS-A230
Tootja: RELPOL
Tootja tootekood: RPC-1AS-A230
Product downloads
Spetsifikatsioon tootele Timer; 0,1s÷10min; SPST-NO; 24VDC/16A,250VAC/16A; 230VAC; DIN
| Mounting | for DIN rail mounting |
| Supply voltage | 230V AC |
| Operating temperature | -20...50°C |
| IP rating | IP20 |
| Number of pins | 5 |
| Body dimensions | 90x17.5x64.6mm |
| Kind of output | SPST-NO |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,1s...10min |
| Counter operation modes | activation for the set time triggered by the closing of the S contact, delayed switch-off controlled by contact S, with the control contact S, stable off, stable on |
| number of operation modes | 5 |
| OEM number | 863220 |
