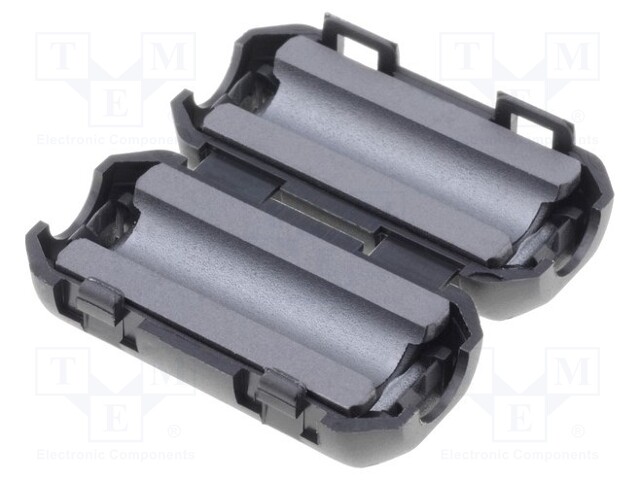

Ferrite: two-piece; on round cable; Ø: 12mm; 90Ω; A: 23mm; B: 22mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RRC-20-13-30-M
    Tootja: RICHCO
    Tootja tootekood: RRC-20-13-30-M
    • Mounting
    • Enclosure material
    • D dimension
    • B dimension
    • A dimension
    • C dimension
    • E dimension
    • Type of ferrite
    • Ferrite application
    • Impedance at 100MHz
    • Core material
    • Impedance at 25MHz
    • Ferrite features
    • Max. wire diameter

    4,68 € 4,68 € (KM-TA) 4.68 EUR

    4,68 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Ferrite: two-piece; on round cable; Ø: 12mm; 90Ω; A: 23mm; B: 22mm

    Mounting on cable
    Enclosure material polyamide

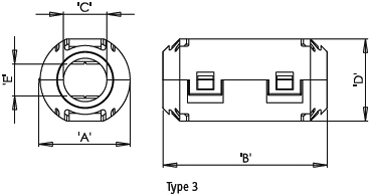

    D dimension 36mm
    B dimension 22mm
    A dimension 23mm
    C dimension 13.5mm
    E dimension 10mm
    Type of ferrite two-piece
    Ferrite application on round cable
    Impedance at 100MHz 140Ω
    Core material ferromagnetic A5
    Impedance at 25MHz 90Ω
    Ferrite features reduce electromagnetic interference
    Max. wire diameter 12mm
