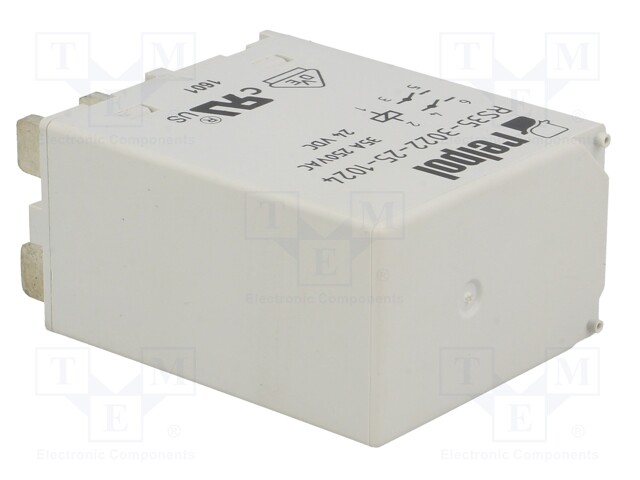

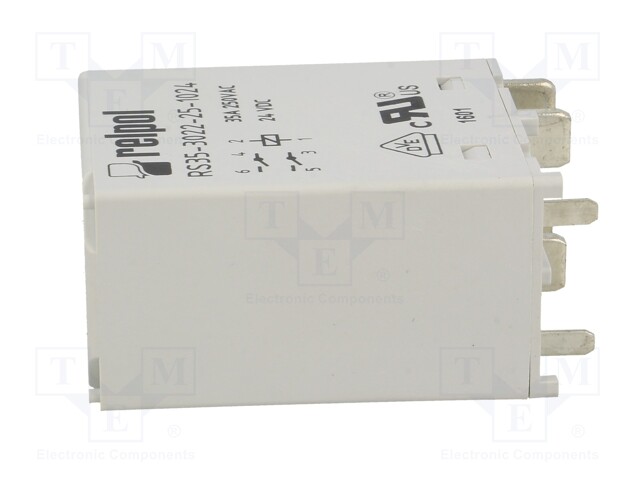

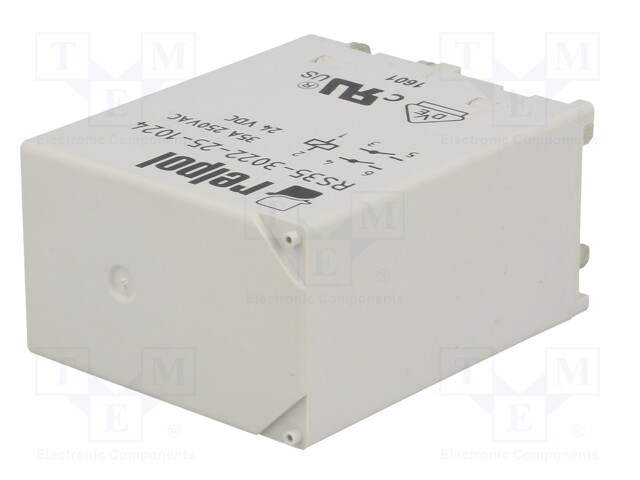

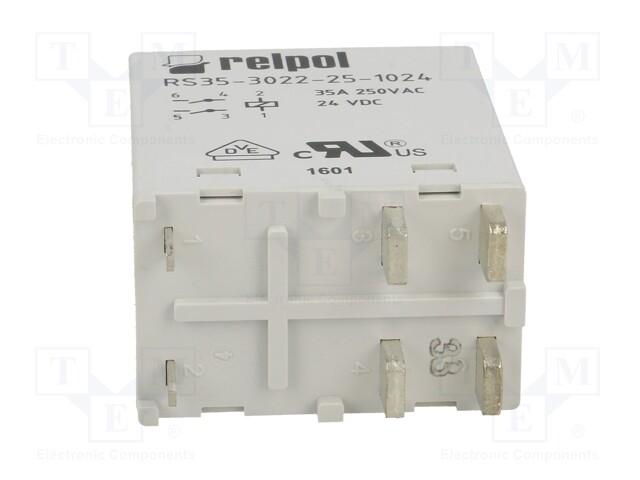

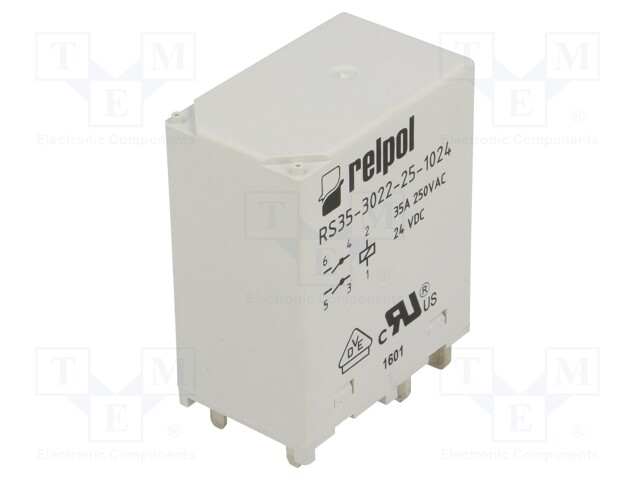

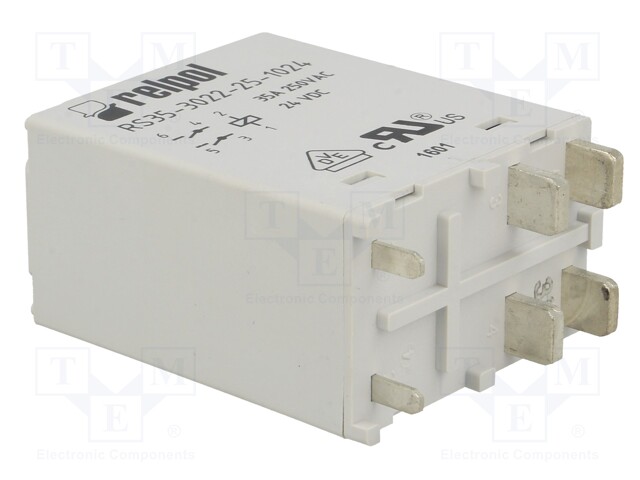

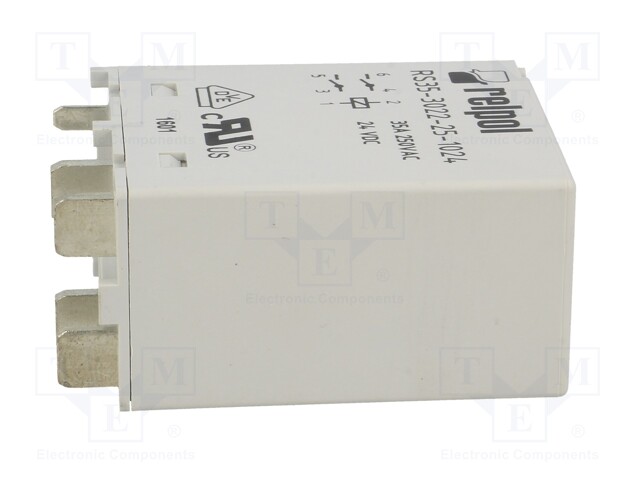

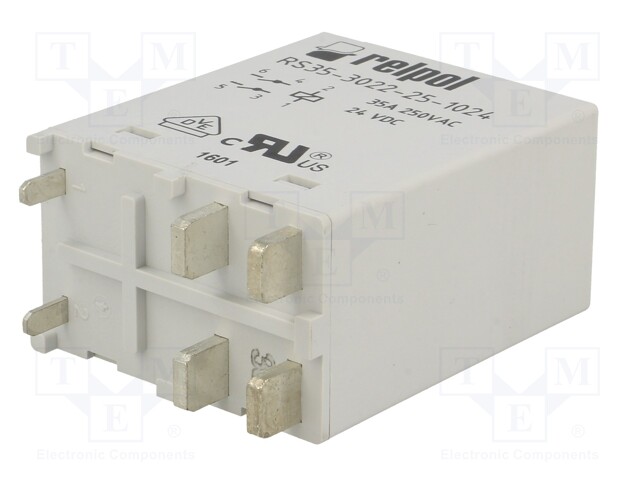

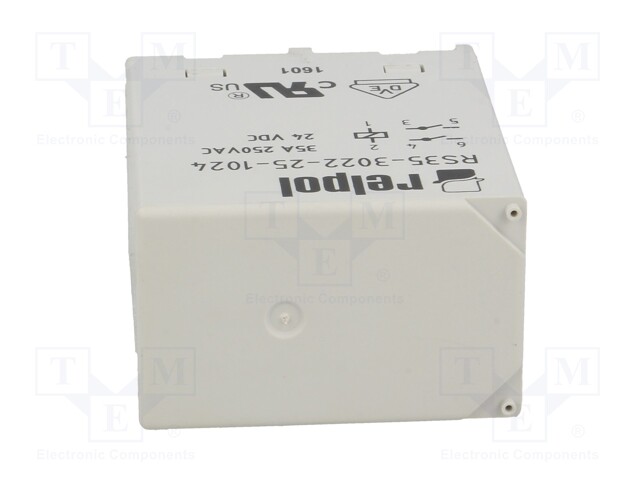

Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 35A; Series: RS35

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RS35-3022-25-1024
    Tootja: RELPOL
    Tootja tootekood: RS35-3022-25-1024
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    41,45 € 41,45 € (KM-TA) 41.45 EUR

    41,45 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 35A; Series: RS35

    Mounting on panel
    Operating temperature -40...85°C
    IP rating IP40
    Leads connectors
    Body dimensions 40x25x49.2mm
    Switched voltage ≤ 24V DC, ≤ 440V AC
    Coil resistance 1.2kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 35A / 24V DC
    Contact resistance 50mΩ
    AC contacts rating @R 35A / 250V AC
    Contact current max. 35A
    Relay variant power
    Coil voltage max. 48V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 480mW
    Operate time 30ms
    Release time 5ms
    OEM number 859170
