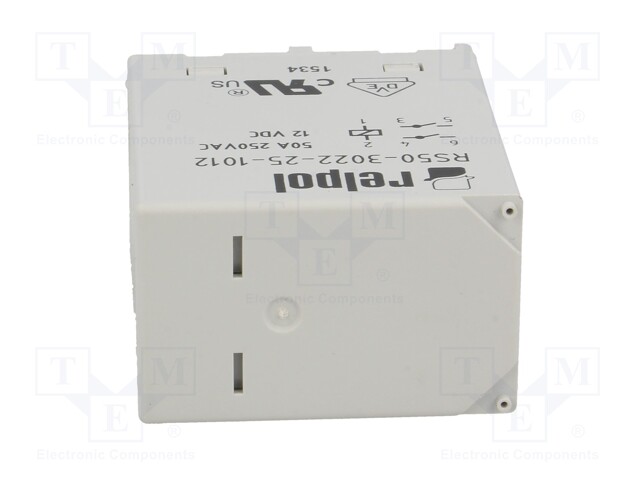

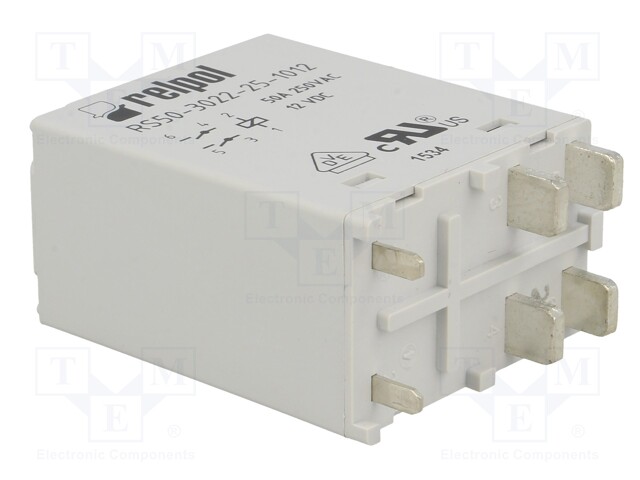

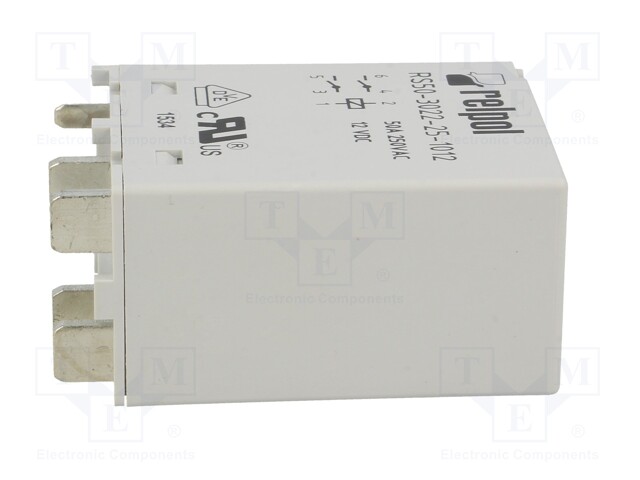

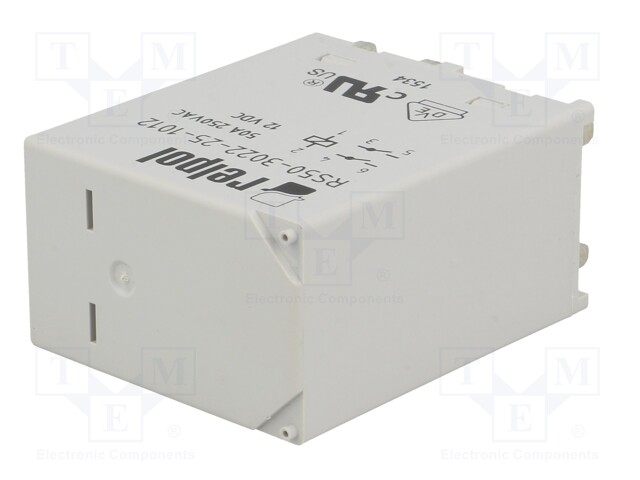

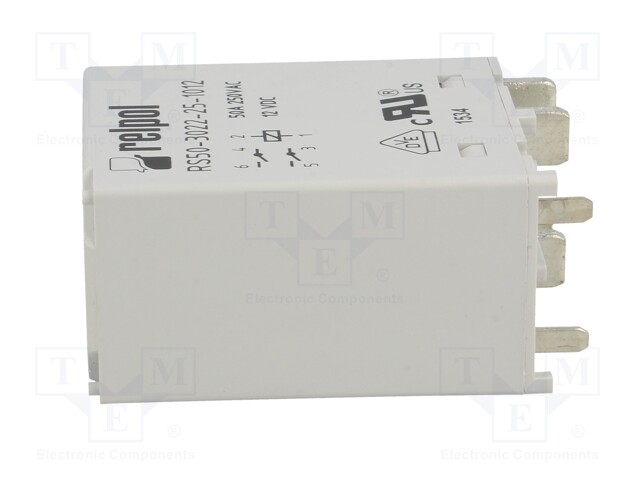

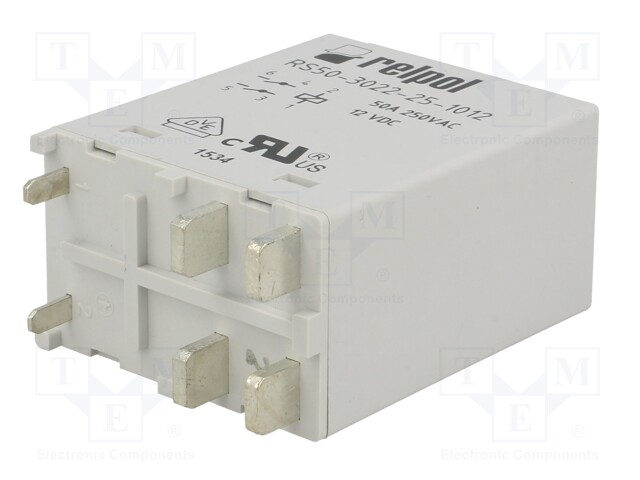

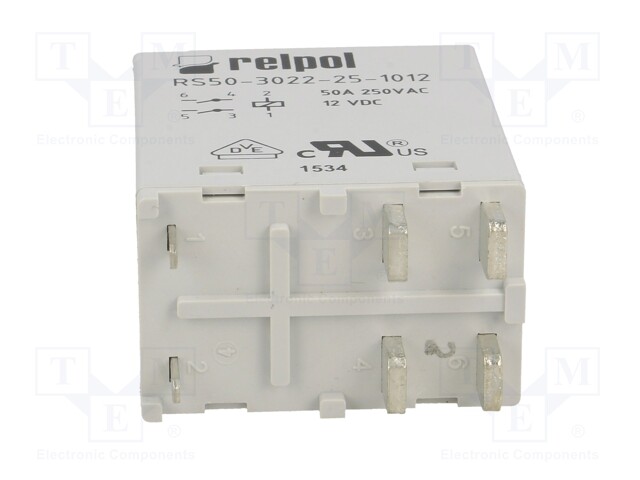

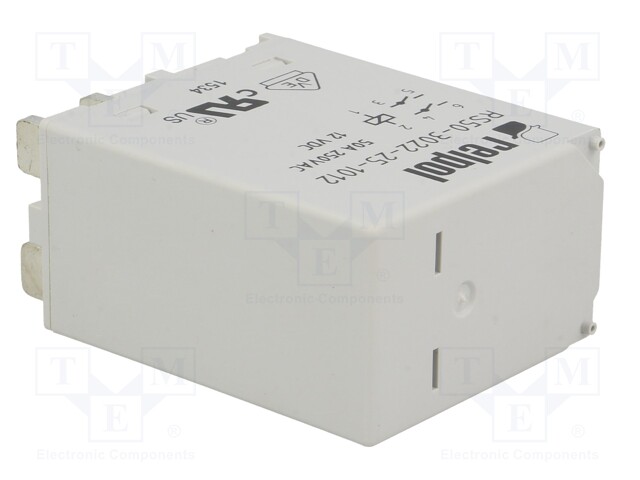

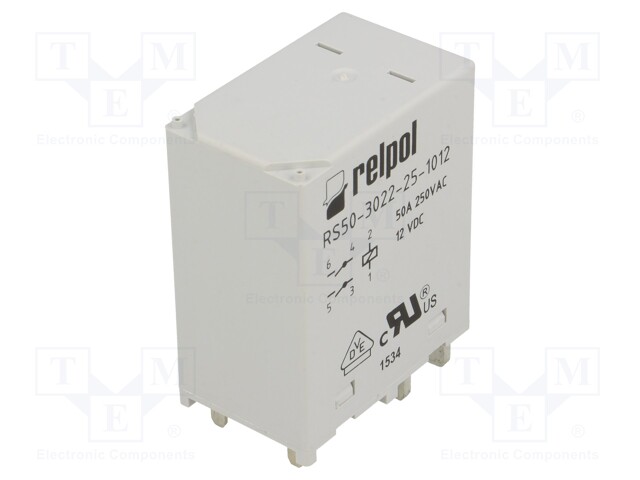

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 50A; Ucoil min: 9VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RS50-3022-25-1012
    Tootja: RELPOL
    Tootja tootekood: RS50-3022-25-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    45,70 € 45,70 € (KM-TA) 45.7 EUR

    45,70 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 50A; Ucoil min: 9VDC

    Mounting on panel
    Operating temperature -40...85°C
    IP rating IP40
    Leads connectors

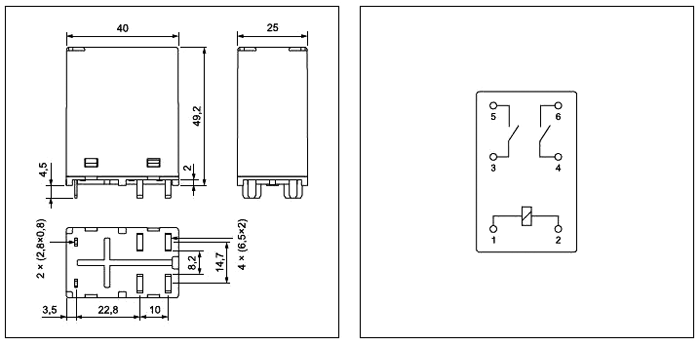

    Body dimensions 40x25x49.2mm
    Switched voltage ≤ 24V DC, ≤ 440V AC
    Coil resistance 300Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 50A / 24V DC
    Contact resistance 50mΩ
    AC contacts rating @R 50A / 250V AC
    Contact current max. 50A
    Relay variant power
    Coil voltage max. 24V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 480mW
    Operate time 30ms
    Release time 5ms
    OEM number 859173
