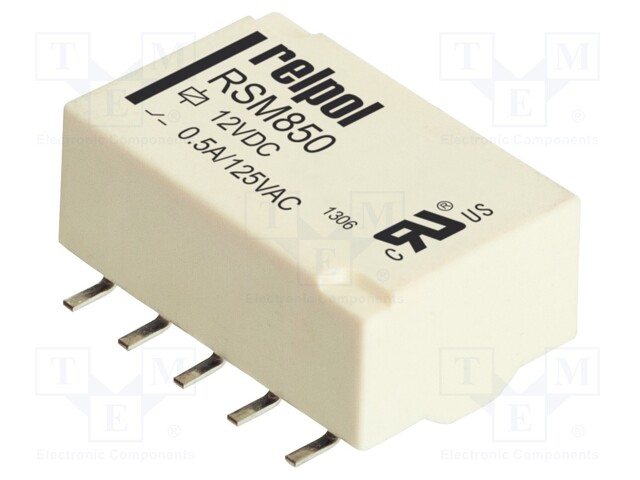

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RSM850-6112-8M-1012
    Tootja: RELPOL
    Tootja tootekood: RSM850-6112-8M-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    5,63 € 5,63 € (KM-TA) 5.63 EUR

    5,63 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Mounting SMD
    Operating temperature -40...85°C
    IP rating IP64
    Contact material AgPd/Au 0,2μm
    Terminal pitch 2.54mm
    Body dimensions 14.3x9.3x5.4mm
    Mechanical durability 1000000000cycles
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Electrical life 100000cycles
    Coil resistance 1.028kΩ
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant monostable, subminiature
    Coil voltage max. 30V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 140mW
    Operate time 3ms
    Release time 3ms
    OEM number 2611720
