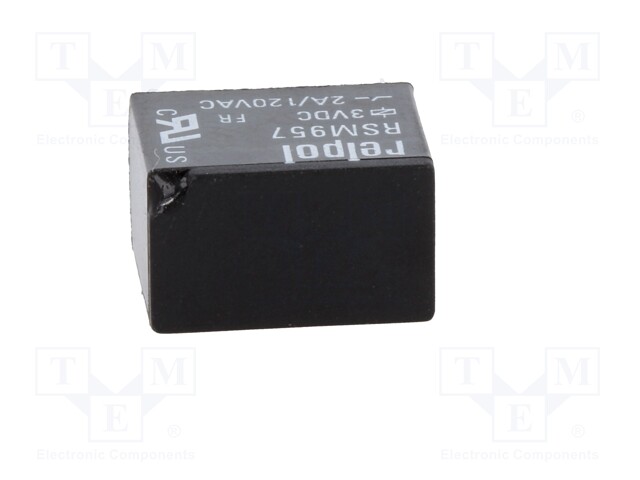

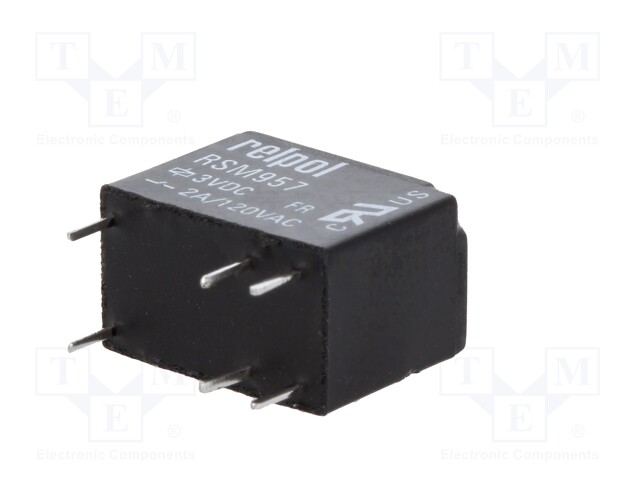

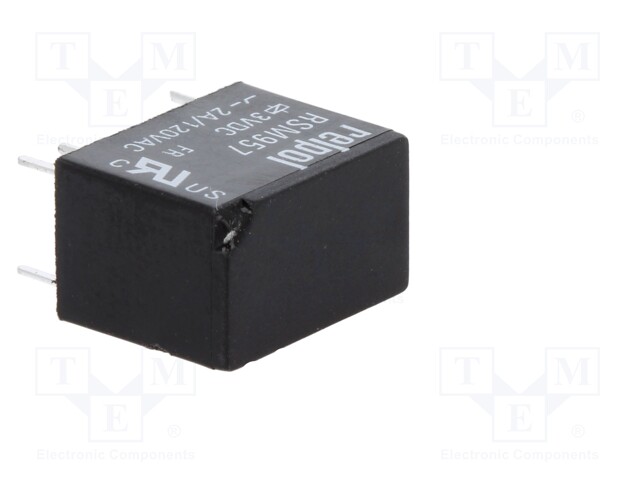

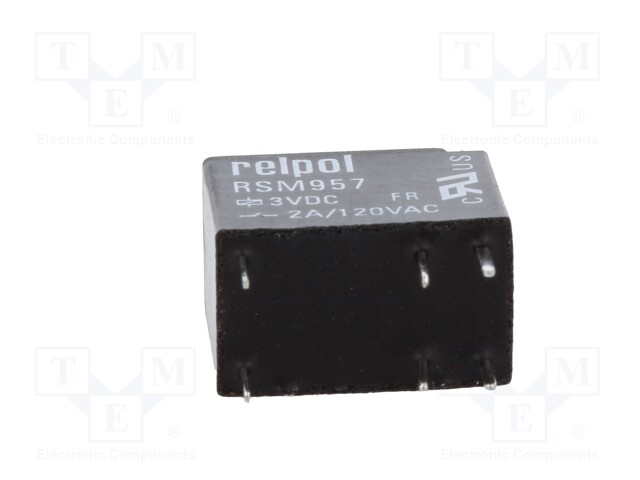

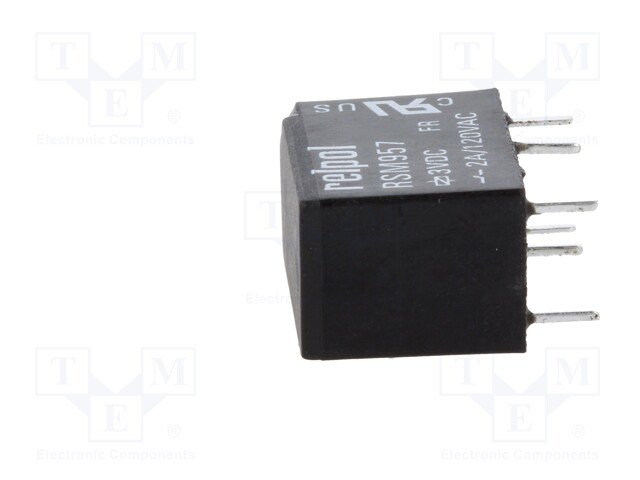

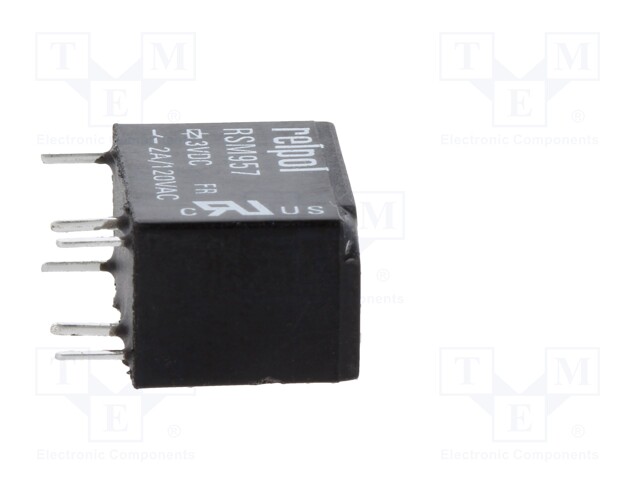

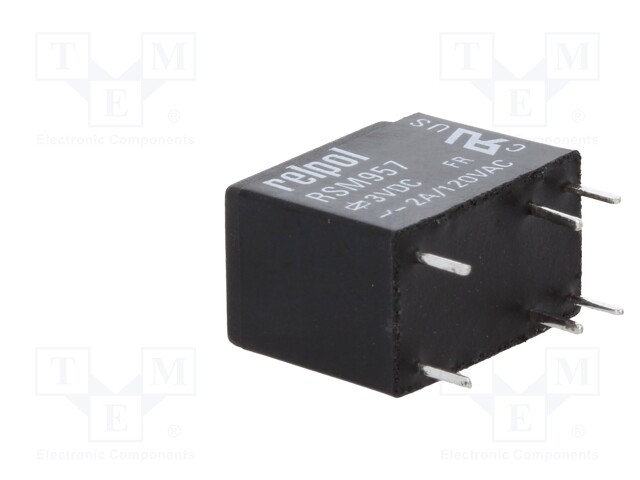

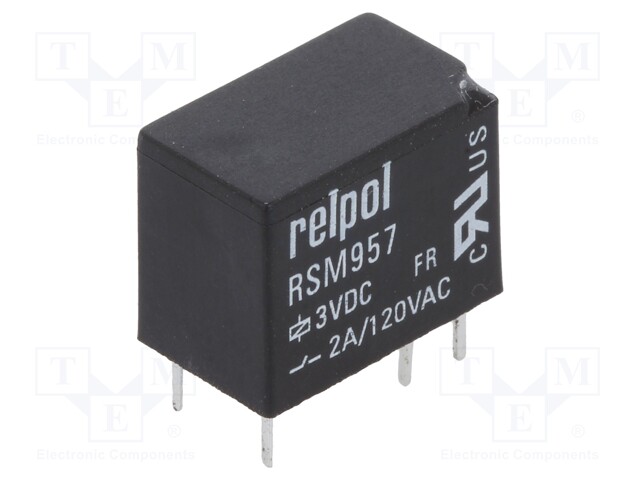

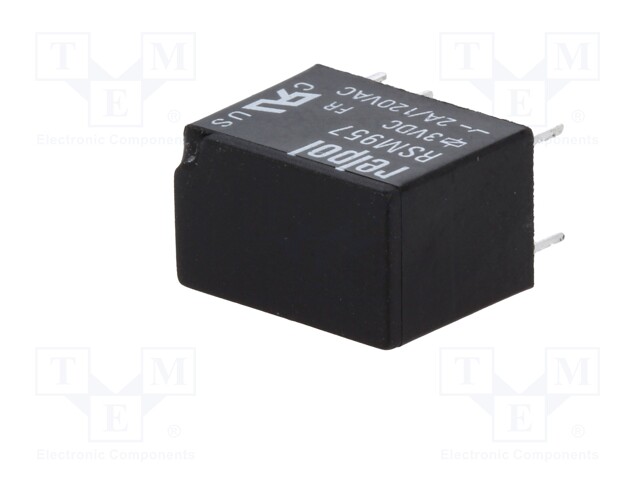

Relay: electromagnetic; SPDT; Ucoil: 3VDC; 2A/120VAC; 2A/24VDC; 2A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RSM957-0111-85-S003
    Tootja: RELPOL
    Tootja tootekood: RSM957-0111-85-S003
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3,12 € 3,12 € (KM-TA) 3.12 EUR

    3,12 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 3VDC; 2A/120VAC; 2A/24VDC; 2A

    Mounting PCB
    Operating temperature -30...70°C
    IP rating IP64
    Contact material Ag/Au 0,2μm
    Terminal pitch 2.54mm
    Body dimensions 12.6x10x7.8mm
    Switched voltage ≤ 24V DC, ≤ 125V AC
    Coil resistance 60Ω
    Rated coil voltage 3V DC
    Contacts configuration SPDT
    DC contacts rating @R 2A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 2A / 120V AC
    Contact current max. 2A
    Relay variant subminiature
    Coil voltage max. 3.9V DC
    Type of relay electromagnetic
    Coil voltage min. 2.4V DC
    Coil power consumption 150mW
    Operate time 5ms
    Release time 5ms
    OEM number 2611735
