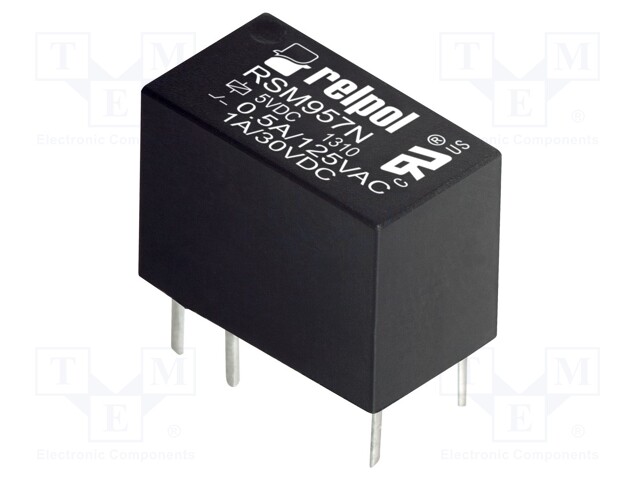

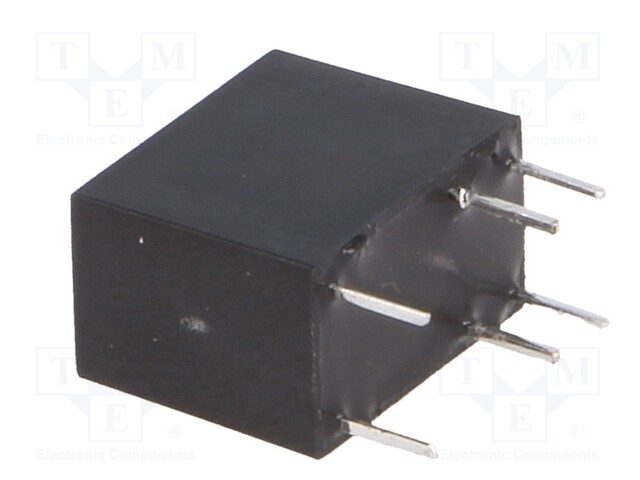

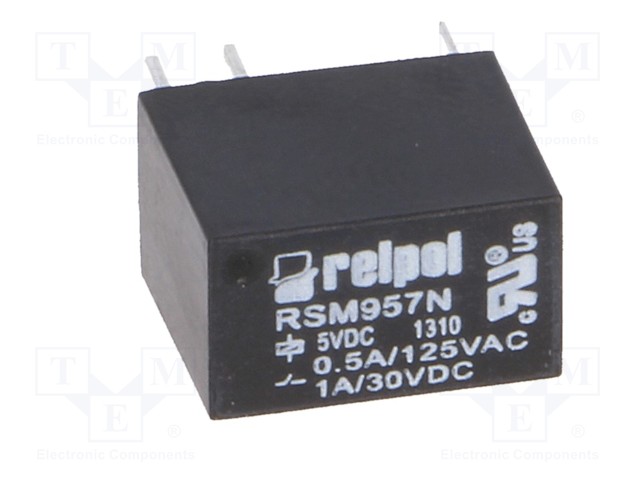

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RSM957N-0111-85-S005
    Tootja: RELPOL
    Tootja tootekood: RSM957N-0111-85-S005
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    2,88 € 2,88 € (KM-TA) 2.88 EUR

    2,88 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -30...70°C
    IP rating IP64
    Contact material Ag/Au 0,2μm

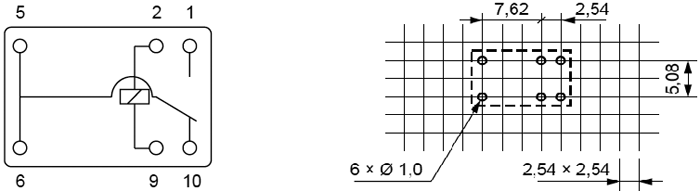

    Terminal pitch 2.54mm

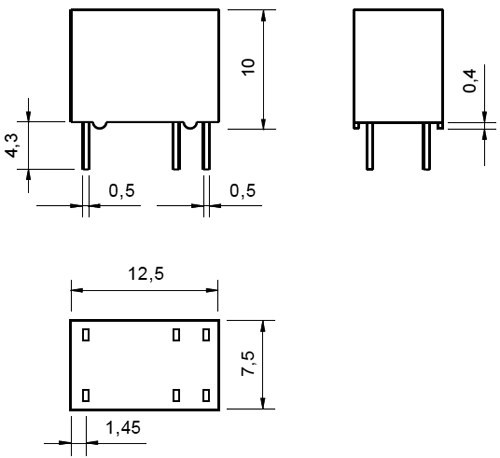

    Body dimensions 12.5x7.5x10mm
    Switched voltage ≤ 30V DC, ≤ 220V AC
    Coil resistance 166.7Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 1A
    Relay variant monostable, sensitive, subminiature
    Coil voltage max. 10V DC
    Type of relay electromagnetic
    Coil voltage min. 4V DC
    Coil power consumption 150mW
    Operate time 5ms
    Release time 5ms
    OEM number 2614631
