Timer; 0,001s÷99h; DPDT; 250VAC/5A; 24÷48VAC; 24÷48VDC; undecal

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RTX-170 24/48
    Tootja: SCHNEIDER ELECTRIC
    Tootja tootekood: RTX-170 24/48
    • Mounting
    • Mounting
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Kind of connector
    • Number of pins
    • Body dimensions
    • Kind of output
    • Indication
    • Electrical connection
    • Counting range
    • Counter operation modes
    • number of operation modes
    • The additional control inputs
    • The additional control inputs

    331,45 € 331,45 € (KM-TA) 331.45 EUR

    331,45 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Timer; 0,001s÷99h; DPDT; 250VAC/5A; 24÷48VAC; 24÷48VDC; undecal

    Mounting on panel, socket, for DIN rail mounting
    Supply voltage 24...48V AC, 24...48V DC
    Operating temperature -10...55°C
    IP rating IP40
    Kind of connector undecal
    Number of pins 11

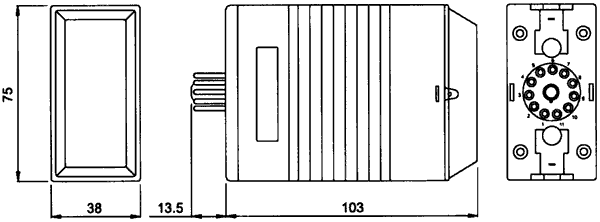

    Body dimensions 38x75x103mm
    Kind of output DPDT
    Indication LED
    Electrical connection round socket
    Counting range 0,001s...99h

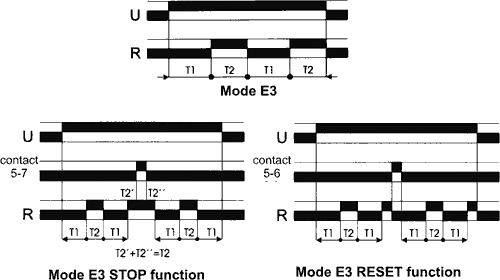

    Counter operation modes cyclical operation with two independent times T1 and T2, pause first
    number of operation modes 1

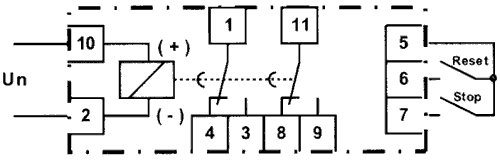

    The additional control inputs RESET, STOP
